L-11 (139-347-190) - White Outdoor 32" Lawn Tractor (1989) Deck Lift Assembly Parts Diagram

32" Lawn Tractor

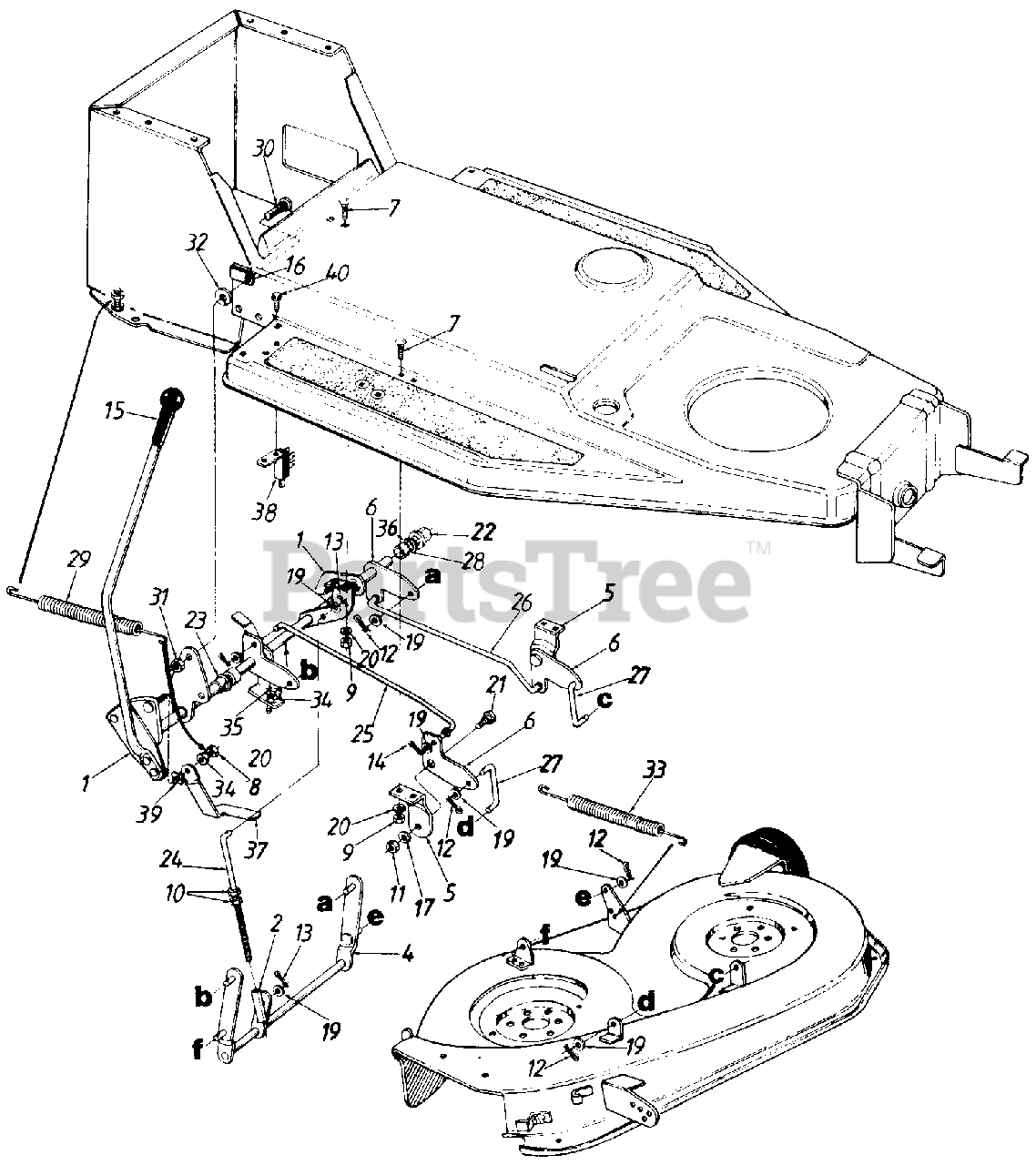

Deck Lift Assembly Parts Diagram

  • Title

1

White Outdoor 16842

Lift Shaft Ass'y.

$

$

Not available

2

White Outdoor 16682

Pivot Sleeve Ass'y.

$

$

Not available

4

White Outdoor 16688A

Stabilizer Ass'y.

Variations

White Outdoor 16688A-0637

No Longer Available STABILIZER ASSY - POWDER BLACK (0637)

$

$

Not available

$

$

5

White Outdoor 16692A

Deck Lift Hanger

$

$

Not available

6

White Outdoor 16698

Deck Lift Float Brkt.

$

$

Not available

7

White Outdoor 710-0134

Carr. Bolt 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 20+

0

9

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

10

White Outdoor 712-0711

Hex L-Nut 3/8-24 Thd.

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.*

$3.99

$

Usually ships in 3-6 days

0

12

White Outdoor 714-0104

Intern. Cot-Pin 5/16" Dia.

$3.99

$

In Stock, Qty 20+

0

13

White Outdoor 714-0115

Cot-Pin 1/8" Dia.

$3.99

$

In Stock, only 1 left!

0

14

White Outdoor 714-0507

Cot-Pin 3/32" Dia.

$4.49

$

In Stock, only 4 left!

0

15

White Outdoor 720-0223

Grip

$13.99

$

In Stock, Qty 10

0

16

726-0267

Clamp

$

$

Not available

17

White Outdoor 736-0169

L-Wash. 3/8" I.D.*

$3.49

$

In Stock, Qty 20+

0

19

White Outdoor 736-0185

Fl-Wash. .406" I.D. x .75" O.D.

$3.49

$

In Stock, Qty 17

0

20

White Outdoor 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

21

White Outdoor 738-0281

Shld. Bolt .625 Dia. x .170" Lg.

$9.99

$

In Stock, only 1 left!

0

22

White Outdoor 741-0225

Hex Flange Brg.
(Superseded to 941-0225)

$6.99

$

In Stock, Qty 20+

0

23

White Outdoor 741-0495

Nyliner Flanged Brg.

$4.49

$

In Stock, Qty 12

0

24

747-0677

J-Bolt 3/8-16 x 5.25" Lg.

$

$

Not available

25

White Outdoor 747-0678

Connecting Rod-R.H.

$

$

Not available

26

White Outdoor 747-0679

Connecting Rod-L.H.

$

$

Not available

27

White Outdoor 747-0689

Lift Link

$

$

Not available

28

White Outdoor 750-0547

Spacer

$5.49

$

In Stock, only 3 left!

0

29

White Outdoor 732-0153

Spring 8.65" Lg.

$

$

Not available

30

White Outdoor 710-0793

Ribbed Neck Bolt 3/8-24 x .80" Lg.

Note: (Special)

$

$

Not available

31

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 20+

0

32

White Outdoor 736-0217

L-Wash. 3/8" I.D. H.D.

$3.99

$

In Stock, Qty 13

0

33

White Outdoor 732-0564

Deck Spring 10.33" Lg.
(Superseded to 932-0564)

$23.99

$

Usually ships in 3-6 days

0

34

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

35

White Outdoor 710-0602

Hex Wash. Hd. Tap Scr. 5/16-18 x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 736-0174

Spr. Wash. .625" I.D.

$6.49

$

Usually ships in 3-6 days

0

37

White Outdoor 16716

Switch Activating Brkt.

Variations

White Outdoor 16716-0637

No Longer Available BRACKET-ACTIVATING - POWDER BLACK (0637)

$

$

Not available

$

$

38

White Outdoor 725-0803B

Safety Switch

$31.99

$

In Stock, Qty 8

0

39

White Outdoor 736-0170

L-Wash. 5/16" I.D.

Note: (Special)

$5.99

$

Usually ships in 3-6 days

0

40

White Outdoor 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, only 4 left!

0
