L-12 (132-455F190) - White Outdoor 38" Lawn Tractor (1992) Engine, Lower Deck & Drive System Parts Diagram

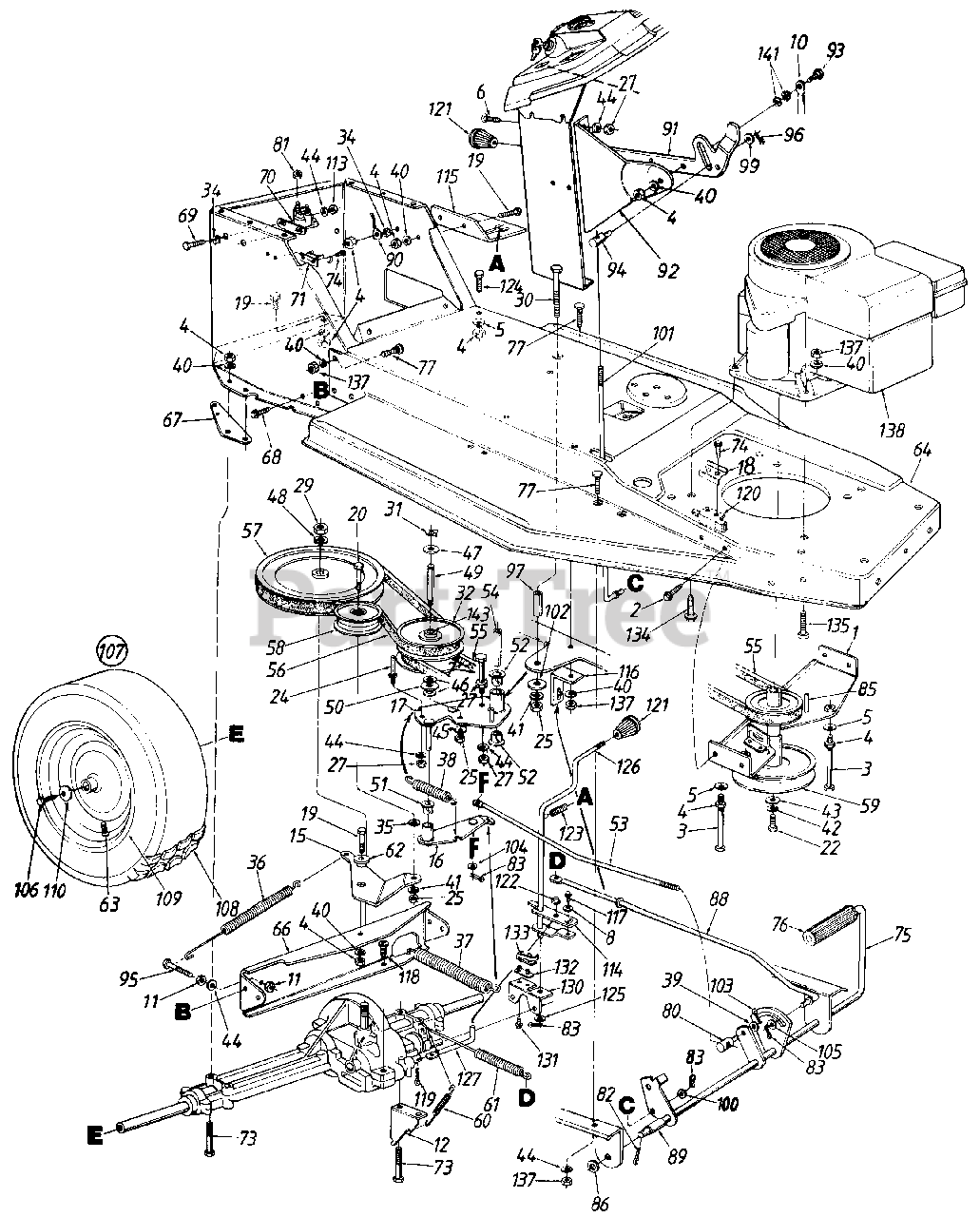

38" Lawn Tractor

Engine, Lower Deck & Drive System Parts Diagram

  • Title

1

White Outdoor 16670

Engine Pulley Belt Guard Ass'y.
(Superseded to 783-0265A-0637)

$

$

Not available

2

White Outdoor 710-0776A

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 710-0833

Hex Bolt 5/16-18 x 5 1/4" Lg.

$8.99

$

In Stock, only 2 left!

0

4

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

5

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 710-0286

Truss-Mach. Scr. 1/4-20 x .50"

$4.49

$

Usually ships in 3-6 days

0

7

White Outdoor 710-1223

Hex Bolt 1/4-20 x 3.5" Lg.
(Superseded to 02000730)

$4.49

$

Usually ships in 3-6 days

0

8

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75

$3.99

$

In Stock, Qty 15

0

10

White Outdoor 749-0820

Speed Selector Brace

$

$

Not available

11

White Outdoor 712-0138

Hex Nut 1/4-28 thd.

$6.49

$

Usually ships in 3-6 days

0

12

White Outdoor 17128A

Spring Retainer Brkt.
(Superseded to 17128A-0637)

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 17128A-0637

Retainer Spring Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

$15.99

$

Usually ships in 3-6 days

0

15

White Outdoor 15891C

Idler Bracket
(Superseded to 15891C-0637)

Variations

White Outdoor 15891C-0637

BRACKET-IDLER - POWDER BLACK (0637)

$

$

Not available

$

$

16

White Outdoor 16554A

Var. Speed Torque Brkt. Ass'y.
(Superseded to 16554A-0637)

Variations

White Outdoor 16554A-0637

Torque Bracket Assembly - POWDER BLACK (0637)

$19.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0

17

White Outdoor 16676A

Variable Speed Brkt. Ass'y.
(Superseded to 16676B-0637)

$

$

Not available

18

White Outdoor 17962

Switch Plate

$4.99

$

In Stock, Qty 5

0

19

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

20

White Outdoor 710-0151

Hex Bolt 3/8-24 x 2.0" Lg. Gr. 5

$6.99

$

In Stock, Qty 5

0

22

White Outdoor 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

$8.99

$

In Stock, Qty 5

0

24

White Outdoor 711-0768

Belt Guard Pin
(Superseded to 911-1000)

$10.99

$

In Stock, Qty 12

0

25

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

29

White Outdoor 712-3035

Hex Jam Nut 9/16-18 Thd.

$6.49

$

Usually ships in 3-6 days

0

30

White Outdoor 710-0902

Hex Bolt 3/8-24 x 3.75" Lg.

$7.49

$

Usually ships in 3-6 days

0

31

White Outdoor 716-0114

Snap Ring
(Superseded to 916-0114)

$6.49

$

In Stock, Qty 11

0

32

White Outdoor 717-0800

Variable Speed Pulley Ass'y.
(Superseded to 917-0800A)

$228.99

$

In Stock, Qty 7

0

34

White Outdoor 736-0607

Ext. L-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

35

White Outdoor 736-0258

Fl-Wash. 3/8" I.D. x 1.0" O.D.

$4.49

$

In Stock, Qty 5

0

36

White Outdoor 732-0384

Extension Spring 6.12" Lg.
(Superseded to 932-0384)

$13.99

$

In Stock, Qty 20+

0

37

White Outdoor 732-0556

Extension Spring 7.58" Lg.
(Superseded to 932-0556)

$20.99

$

In Stock, Qty 7

0

38

White Outdoor 732-0568

Extension Spring 2.59" Lg.
(Superseded to 932-0568)

$

$

Not available

39

White Outdoor 736-0117

Fl-Wash. .385" I.D. x .620"
(Superseded to 936-0117)

$6.99

$

In Stock, only 1 left!

0

40

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

41

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

42

White Outdoor 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 736-0322

Fl-Wash. .450" I.D. x 1.25"

$8.49

$

In Stock, Qty 20+

0

44

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

45

White Outdoor 736-0331

Bell-Wash. .39" I.D. x 1.13"

$3.99

$

In Stock, Qty 20+

0

46

White Outdoor 736-0355

Fl-Wash. .56" I.D. x 1.0" O.D.

$3.99

$

In Stock, Qty 20+

0

47

White Outdoor 736-0414

Washer "Teflon" .565 I.D.

$3.99

$

In Stock, Qty 11

0

48

White Outdoor 736-0427

Bell-Wash. 9/16" I.D. x 1.125" O.D.
(Superseded to 936-0427)

$

$

Not available

49

White Outdoor 738-0569

Shaft .56" Dia. x 3.875" Lg.
(Superseded to 938-0569)

$31.99

$

In Stock, only 1 left!

0

50

White Outdoor 741-0405

Thrust Brg. 1.25 O.D.
(Superseded to 941-0405)

$

$

Not available

51

White Outdoor 741-0419

Flanged Nyliner Brg.

$5.49

$

In Stock, only 3 left!

0

52

White Outdoor 741-0495

Nyliner Flanged Brg.

$4.49

$

In Stock, Qty 12

0

53

White Outdoor 747-0599A

Speed Control Rod
(Superseded to 747-0599B)

Note: Code: N notates a new part (not previously existing).

$

$

Not available

54

White Outdoor 750-0703

Spacer

$

$

Not available

55

White Outdoor 754-0280

V-Belt
(Superseded to 954-0280A)

$42.99

$

In Stock, Qty 20+

0

56

White Outdoor 754-0281

V-Belt
(Superseded to 954-0281)

$40.99

$

In Stock, Qty 8

0

57

White Outdoor 656-0003

V-Pulley 8" Dia.

$

$

Not available

58

White Outdoor 756-0437

Idler Pulley 3-1/8" Dia.
(Superseded to 756-0643A)

$38.99

$

In Stock, Qty 20+

0

59

White Outdoor 756-0551

Dbl. Pulley 6.0" Dia. x 3.56"
(Superseded to 753-0905)

$131.99

$

Usually ships in 3-6 days

0

60

White Outdoor 732-0303

Extension Spring 3.18" Lg.
(Superseded to 932-0303)

$9.49

$

In Stock, Qty 14

0

61

White Outdoor 732-0413

Extension Spring 7.08" Lg.
(Superseded to 932-0413)

$11.99

$

In Stock, Qty 6

0

62

White Outdoor 748-0234

Shld. Spacer .500" Dia.

$4.49

$

In Stock, Qty 10

0

63

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$3.99

$

In Stock, Qty 20+

0

64

MTD 17588A

Front Frame

Variations

White Outdoor 17588A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 17588A-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

$

$

?65

White Outdoor 17589

Rear Frame
(Superseded to 753-0597)

$

$

Not available

66

White Outdoor 16654

Transaxle Support Brkt.
(Superseded to 16654A-0637)

$

$

Not available

67

White Outdoor 16659

Transaxle Brkt. Reinforcement
(Superseded to 16659-0637)

Variations

White Outdoor 16659-0637

BRACKET-TRANS - POWDER BLACK (0637)

$

$

Not available

$

$

68

White Outdoor 710-0726

Hex Wash. AB-Tap Scr. 5/16 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

69

White Outdoor 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

70

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$24.99

$

In Stock, Qty 20+

0

71

White Outdoor 725-0459

Circuit Breaker
(Superseded to 753-0685)

$35.99

$

In Stock, only 1 left!

0

?72

White Outdoor 736-0222

External L-Wash. 1/4" I.D.

$5.49

$

In Stock, only 3 left!

0

73

White Outdoor 710-0176

Hex Bolt 5/16-18 x 2.75" Lg.

$4.49

$

In Stock, only 3 left!

0

74

White Outdoor 710-0351

Truss Mach. B-Tap Scr. #10 x .50" Lg.

$4.49

$

In Stock, only 4 left!

0

75

White Outdoor 17644A

Foot Pedal Rod Ass'y.

Note: Code: N notates a new part (not previously existing).

Variations

White Outdoor 17644A-0637

No Longer Available ROD ASSY-FOOT PEDA - POWDER BLACK (0637)

$

$

Not available

$

$

76

White Outdoor 735-0239

Foot Pad
(Superseded to 735-0239A)

$11.99

$

In Stock, Qty 11

0

77

White Outdoor 710-1012

Ribbed Neck Bolt 5/16-24 x .84"

$4.49

$

Usually ships in 3-6 days

0

80

White Outdoor 711-0198

Ferrule
(Superseded to 911-0198)

$12.99

$

In Stock, Qty 20+

0

81

White Outdoor 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

82

White Outdoor 714-0470

Cot-Pin 1/8" Dia. x 1.25" Lg.

$3.99

$

In Stock, Qty 20+

0

83

White Outdoor 714-0507

Cot-Pin 3/32" Dia. x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0

85

White Outdoor 714-0114

Sq. Key 1/4 x 2.0" Lg.
(Superseded to 914-0114)

$3.99

$

In Stock, only 1 left!

0

86

White Outdoor 736-0256

Fl-Wash. .635" I.D. x 1.0"
(Superseded to 936-0256)

$6.99

$

Usually ships in 3-6 days

0

88

White Outdoor 747-0593

Brake Rod

$

$

Not available

89

White Outdoor 750-0800

Spacer 5/8" I.D. x 1.2" Lg.

$

$

Not available

90

White Outdoor 725-0976A

Ground Wire 7.25" Lg.

$

$

Not available

91

White Outdoor 17457A

Speed Selector Lever
(Superseded to 17457B)

$18.99

$

Usually ships in 3-6 days

0

92

White Outdoor 16694A

7 Speed Selector Brkt.

$

$

Not available

93

White Outdoor 738-0138

Shld. Bolt .437" Dia. x .47" Lg.
(Superseded to 738-0138A)

$6.49

$

In Stock, Qty 20+

0

94

White Outdoor 711-0677

Ferrule
(Superseded to 911-0677)

$16.99

$

In Stock, only 4 left!

0

95

White Outdoor 710-0428

Hex Bolt 1/4-28 x 1.25" Lg.

$2.49

$

In Stock, only 1 left!

0

96

White Outdoor 714-0104

Intern. Cot-Pin 5/16" Dia.

$3.99

$

In Stock, Qty 20+

0

97

White Outdoor 750-0703

Spacer .375" I.D. x .625"

$

$

Not available

99

White Outdoor 736-0264

Fl-Wash. .344" I.D. x .62"

$6.49

$

In Stock, only 1 left!

0

100

White Outdoor 736-0463

Fl-Wash. .25" I.D. x .62" O.D.

$4.49

$

In Stock, only 1 left!

0

101

White Outdoor 747-0675A

Speed Control Rod

Note: Code: N notates a new part (not previously existing).

$

$

Not available

102

White Outdoor 736-0133

Fl-Wash. 3/8" I.D. x 1.25" O.D.

$4.99

$

In Stock, Qty 7

0

103

White Outdoor 714-0115

Cot-Pin 1/8" Dia. x 1.0" Lg.

$3.99

$

In Stock, only 1 left!

0

104

White Outdoor 736-0275

Fl-Wash. .34" I.D. x .68"

$6.49

$

Usually ships in 3-6 days

0

105

White Outdoor 736-0278

Fl-Wash. .34" I.D.

$5.49

$

Usually ships in 3-6 days

0

106

White Outdoor 710-0627

Hex L-Bolt 5/16-24 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

107

White Outdoor 734-0817

Rear Wheel Ass'y. Comp.

Variations

White Outdoor 734-0817-0911

WHEEL ASSY W/TIRE - Carlisle Gray (0911)

$

$

Not available

White Outdoor 734-0817-0912

No Longer Available WHEEL ASSY W/TIRE - Dico Gray (0912)

$

$

Not available

White Outdoor 734-0817-0915

No Longer Available WHEEL ASSY W/TIRE - Duro Gray (0915)

$

$

Not available

White Outdoor 734-0817-0931

No Longer Available WHL ASSY 18 X 9 50 - Carlisle Beige (0931)

$

$

Not available

White Outdoor 734-0817-0932

No Longer Available WHEEL ASSY 18X9.5X - Dico Beige (0932)

$

$

Not available

White Outdoor 734-0817-0941

No Longer Available WHL ASSY 18 X 9 50 - Carlisle Yellow (0941)

$

$

Not available

White Outdoor 734-0817-0981

No Longer Available WHEEL ASSY W/TIRE - Carlisle Green (0981)

$

$

Not available

$

$

108

White Outdoor 734-0448

Tire Only

Variations

White Outdoor 734-0448-0901

No Longer Available TIRE 18 X 9 50 - Carlisle (0901)

$

$

Not available

White Outdoor 734-0448-0902

TIRE-TUBELESS 18X9 - Dico (0902)

$

$

Not available

White Outdoor 734-0448-0905

TIRE-TUBELESS 18X9 - Duro (0905)

$

$

Not available

$

$

109

White Outdoor 734-0603A

Rear Wheel Rim Ass'y. Only
(Superseded to 634-04369)

$124.99

$

Usually ships in 3-6 days

0

110

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

113

White Outdoor 712-0298

Hex Jam Nut 1/4-20 Thd.
(Superseded to 912-0298)

$5.99

$

Usually ships in 3-6 days

0

114

White Outdoor 17178A

Shift Lever Adjusting Link

$

$

Not available

115

White Outdoor 16482

Shift Lever Spring Brkt.

$

$

Not available

116

White Outdoor 17597

Brake Rod Guide Brkt.

Variations

White Outdoor 17597-0637

BRACKET-BRAKE GUIDE - POWDER BLACK (0637)

$

$

Not available

$

$

117

White Outdoor 710-0289

Hex Bolt 1/4-20 x .50 Lg.
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

118

White Outdoor 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

119

White Outdoor 714-0149B

Intern. Cotter Pin

$3.99

$

In Stock, Qty 20+

0

120

White Outdoor 725-3169A

Safety Switch (Clutch)
(Superseded to 925-04039)

$22.99

$

In Stock, Qty 20+

0

121

White Outdoor 720-0232

Knob
(Superseded to 920-0232)

$9.99

$

In Stock, only 4 left!

0

122

White Outdoor 726-0231

Retaining Ring
(Superseded to 926-0106)

$

$

Not available

123

White Outdoor 732-0499

Compression Spring 1.5" Lg.

$8.99

$

In Stock, only 3 left!

0

124

White Outdoor 710-0604

Hex Wash. Hd. Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

125

White Outdoor 736-0226

Fl-Wash. .469" I.D. x .88"
(Superseded to 936-0226)

$3.99

$

In Stock, only 3 left!

0

126

White Outdoor 747-0694A

Shift Rod Ass'y.

Variations

White Outdoor 747-0694A-0637

ROD ASSY-SHIFT - POWDER BLACK (0637)

$

$

Not available

$

$

127

White Outdoor 747-0685

Shift Rod
(Superseded to 947-0685)

$

$

Not available

130

White Outdoor 17179

Shift Lever Support

$

$

Not available

131

White Outdoor 710-0227

Hex Wash. Hd. #8 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

132

White Outdoor 726-0222

Insulator Nut Plate
(Superseded to 926-0320)

$6.49

$

In Stock, Qty 11

0

133

White Outdoor 725-0758

Spring Switch
(Superseded to 753-0580)

$

$

Not available

134

White Outdoor 710-0502A

Hex Tap Scr. 3/8-16 x 1.25"

$6.49

$

In Stock, Qty 7

0

135

White Outdoor 710-0672

Hex Bolt 5/16-24 x 1 1/4" Lg. Gr. 5

$4.49

$

In Stock, Qty 20+

0

137

White Outdoor 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

138

Engine

$

$

Not available

141

White Outdoor 736-0141

Wave Wash. .445" I.D.
(Superseded to 936-0141)

$6.49

$

Usually ships in 3-6 days

0

143

White Outdoor 741-0404

Needle Brg.

$37.99

$

In Stock, only 2 left!

0

White Outdoor 751-0450

Muffler

$

$

Not available

White Outdoor 738-0636

Shoulder Bolt
(Superseded to 938-0636)

Note: Mounting Hardware

$

$

Not available

White Outdoor 721-0208

Gasket
(Superseded to BS-692236)

Note: Mounting Hardware

$5.49

$

In Stock, Qty 20+

0
