L-12 (132-455F190) - White Outdoor 38" Lawn Tractor (1992) Steering Assembly Parts Diagram

38" Lawn Tractor

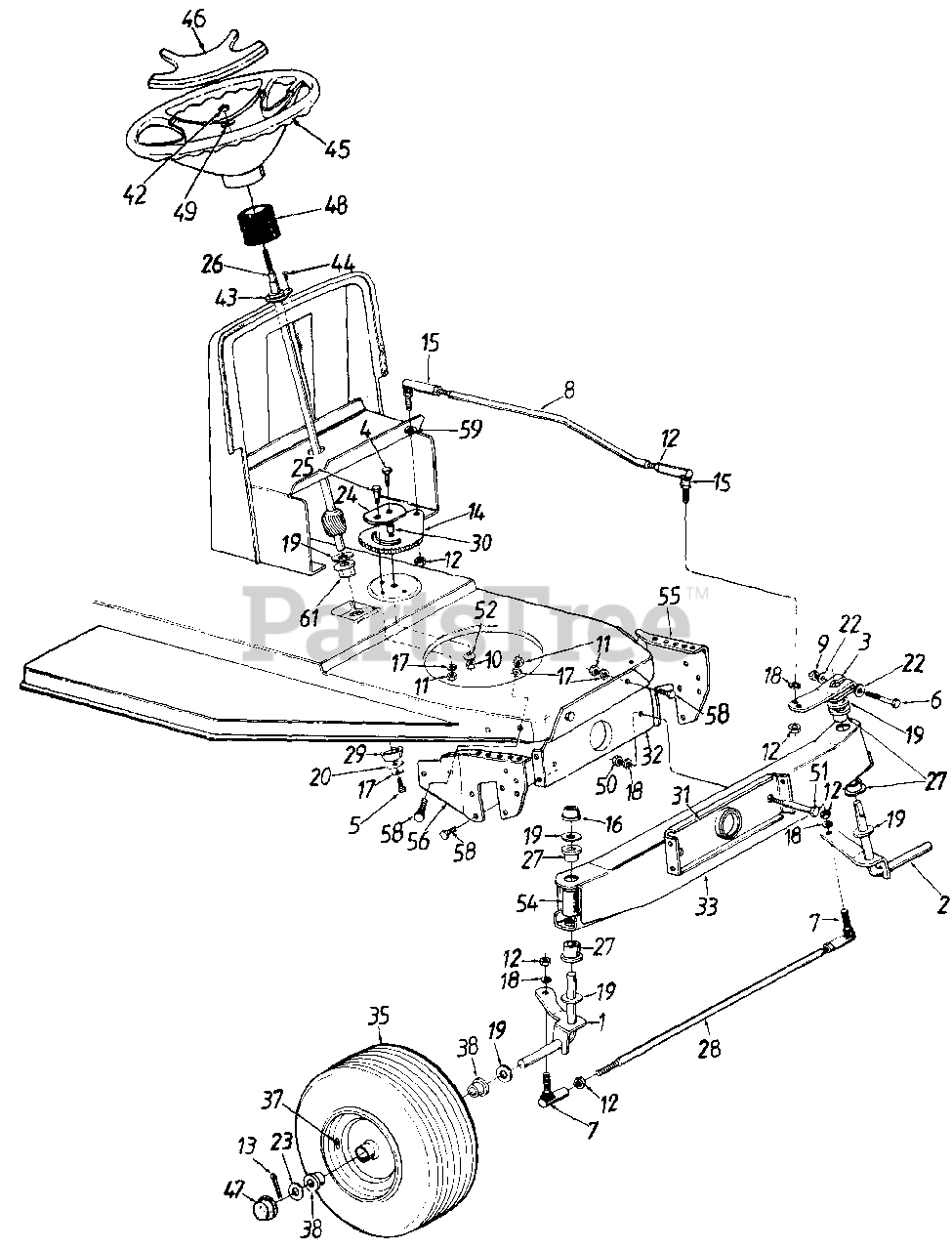

Steering Assembly Parts Diagram

  • Title

1

White Outdoor 17584

Front Axle Ass'y. - R.H.
(Superseded to 97584A-0637)

Note: Code: N notates a new part (not previously existing).

$81.99

$

In Stock, only 2 left!

0

2

White Outdoor 17585

Front Axle Ass'y. - L.H.
(Superseded to 97585A-0637)

Note: Code: N notates a new part (not previously existing).

$

$

Not available

3

White Outdoor 16481

Steering Arm
(Superseded to 983-0055-0637)

$50.99

$

In Stock, Qty 10

0

4

White Outdoor 710-0152

Hex Bolt 3/8-24 x 1" Lg.
(Superseded to 710-1039)

$4.99

$

In Stock, Qty 15

0

5

White Outdoor 710-0538

Hex Bolt 5/16-18 x .62" (Spec)

$4.99

$

In Stock, only 2 left!

0

6

White Outdoor 710-0772

Hex Bolt 5/16-24 x 2" Lg.

$4.99

$

Usually ships in 3-6 days

0

7

White Outdoor 723-3018

Ball Joint 3/8-24 Thd.
(Superseded to 923-3018)

$17.99

$

In Stock, Qty 20+

0

8

White Outdoor 711-0838

Steering Drag Link

$

$

Not available

9

White Outdoor 712-0237

Hex L-Nut 5/16-24 Thd.

$5.49

$

In Stock, only 2 left!

0

10

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

11

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

12

White Outdoor 712-0446

Hex Jam Nut, 3/8-24 Thd.
(Superseded to 912-0446)

Note: Code: N notates a new part (not previously existing).

$7.49

$

In Stock, Qty 9

0

13

White Outdoor 714-0470

Cotter Pin 1/8 Dia.

$4.49

$

In Stock, Qty 9

0

14

White Outdoor 717-0622A

Steering Gear Segment
(Superseded to 717-0622C)

$56.99

$

In Stock, only 2 left!

0

15

White Outdoor 723-3018

Drag Link Ball Joint 3/8-24 Thd.
(Superseded to 923-3018)

$17.99

$

In Stock, Qty 20+

0

16

White Outdoor 726-0214

Push Cap

$11.99

$

In Stock, Qty 20+

0

17

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

18

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 736-0187

Fl-Wash. .64" I.D. x 1.24"

$4.99

$

In Stock, Qty 20+

0

20

White Outdoor 736-0343

Fl-Wash. .340" I.D. x 1.125"

$4.99

$

In Stock, Qty 7

0

22

White Outdoor 736-0271

Spr. Wash. .32" I.D. x .62"
(Superseded to 936-0271)

$4.99

$

In Stock, Qty 6

0

23

White Outdoor 736-0285

Fl-Wash. .635" I.D. x 1.585"

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 17198

Retainer Plate
(Superseded to 783P08577A)

$7.99

$

In Stock, Qty 8

0

25

White Outdoor 738-0141

Shld. Bolt .437" Dia. x .350"
(Superseded to 938-0141)

$7.49

$

In Stock, only 1 left!

0

26

White Outdoor 738-0730

Steering Shaft

$115.99

$

Usually ships in 3-6 days

0

27

White Outdoor 741-0487A

Hex Flange Brg. .632" I.D.
(Superseded to 741-0487C)

$7.99

$

In Stock, Qty 20+

0

28

White Outdoor 747-0753

Tie Rod 20" Lg.

$36.99

$

In Stock, Qty 8

0

29

White Outdoor 750-0532

Spacer .985" I.D.
(Superseded to 950-0532)

$

$

Not available

30

White Outdoor 750-0535

Spacer .380" I.D.
(Superseded to 950-0535)

$4.99

$

In Stock, Qty 10

0

31

White Outdoor 17548

Front Pivot Bar Support Brkt.

Variations

17548-0637

White Outdoor 17548-0637

BRACKET-PIVOT - POWDER BLACK (0637)

$

$

Not available

17548-0638

White Outdoor 17548-0638

No Longer Available BRACKET-PIVOT SUP- - MTD/TROY-BILT RED (0638)

$

$

Not available

17548-0648

White Outdoor 17548-0648

No Longer Available BRACKET-PIVOT SUP- - TECH GRAY (0648)

$

$

Not available

$

$

32

White Outdoor 17547

Rear Pivot Bar Support Brkt.
(Superseded to 17547-0637)

Variations

17547-0637

White Outdoor 17547-0637

BRACKET-PIVOT - POWDER BLACK (0637)

$

$

Not available

$

$

33

White Outdoor 683-0002

Pivot Bar Ass'y.
(Superseded to 753-0642-0637)

Note: Code: N notates a new part (not previously existing).

Variations

683-0002-0637

White Outdoor 683-0002-0637

Pivot Bar Kit with Flange Bearing - POWDER BLACK (0637)

$135.99

$

In Stock, only 2 left!

0

683-0002-0685

White Outdoor 683-0002-0685

Pivot Bar Kit with Flange Bearing - CUB BLUE (0685)

$135.99

$

In Stock, only 2 left!

0

683-0002-0686

White Outdoor 683-0002-0686

Pivot Bar Kit with Flange Bearing - SIMPLICITY ORANGE (0686)

$135.99

$

In Stock, only 2 left!

0

683-0002-0687

White Outdoor 683-0002-0687

Pivot Bar Kit with Flange Bearing - PINE GREEN (0687)

$135.99

$

In Stock, only 2 left!

0

683-0002-0688

White Outdoor 683-0002-0688

Pivot Bar Kit with Flange Bearing - SPRING GREEN (0688)

$135.99

$

In Stock, only 2 left!

0

683-0002-0689

White Outdoor 683-0002-0689

Pivot Bar Kit with Flange Bearing - POLO GREEN (0689)

$135.99

$

In Stock, only 2 left!

0

683-0002-0691

White Outdoor 683-0002-0691

Pivot Bar Kit with Flange Bearing - BLACK JACK (0691)

$135.99

$

In Stock, only 2 left!

0

683-0002-0692

White Outdoor 683-0002-0692

Pivot Bar Kit with Flange Bearing - AGWAY BLUE (0692)

$135.99

$

In Stock, only 2 left!

0

$135.99

$

In Stock, only 2 left!

0

35

734-1684A

Front Wheel Ass'y. Comp. 15" x 6"

$

$

Not available

734-0864A

Tire Only

$

$

Not available

White Outdoor 734-1685A

Rim Only
(Superseded to 934-0051-0662)

$

$

Not available

White Outdoor 737-0280

Grease Fitting

$8.49

$

In Stock, only 4 left!

0

37

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

38

White Outdoor 741-0569

Bearing
(Superseded to 941-0569)

$37.99

$

Usually ships in 3-6 days

0

42

White Outdoor 712-0237

Hex L-Nut 5/16-24 Thd.

$5.49

$

In Stock, only 2 left!

0

43

White Outdoor 741-0501

Steering Column Brg.
(Superseded to 941-0501)

$

$

Not available

44

White Outdoor 710-0837

Cr-Sunk Scr. #10 x 5/8" Lg.

$4.99

$

In Stock, only 3 left!

0

45

White Outdoor 631-0005

Steering Wheel
(Superseded to 931-0005)

$

$

Not available

46

White Outdoor 731-1344

Steering Wheel Cap

$

$

Not available

47

White Outdoor 731-0484A

Hub Cap
(Superseded to 931-0484A)

$6.99

$

In Stock, Qty 20+

0

48

White Outdoor 731-0559

Bellow Steering Column
(Superseded to 731-0559B)

$

$

Not available

49

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88"

$4.99

$

In Stock, Qty 20+

0

50

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

51

White Outdoor 738-0527

Shld. Bolt 1/2" Dia. x 2.04"

$9.49

$

In Stock, Qty 10

0

52

White Outdoor 736-0356

Bell-Wash. .39" x 1.38" O.D.
(Superseded to 936-0356)

$

$

Not available

54

731-1134

Plastic Tube

$

$

Not available

55

White Outdoor 17545

Pivot Bar Side Plate - L.H.

$

$

Not available

56

White Outdoor 17546

Pivot Bar Side Plate - R.H.

$

$

Not available

58

White Outdoor 710-0604

Hex Wash. Tap Scr. 5/16-18 x .62" Lg.
(Superseded to 710-0604A)

$4.99

$

In Stock, only 4 left!

0

59

White Outdoor 736-0217

L-Wash. 3/8" I.D. (H.D.)

$4.49

$

In Stock, only 3 left!

0

61

White Outdoor 741-0225

Hex Flange Brg. .634" Dia.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0
