L-12 (136C471F190) - White Outdoor 38" Lawn Tractor (1996) Switches And Lights Wiring Diagram Parts Diagram

38" Lawn Tractor

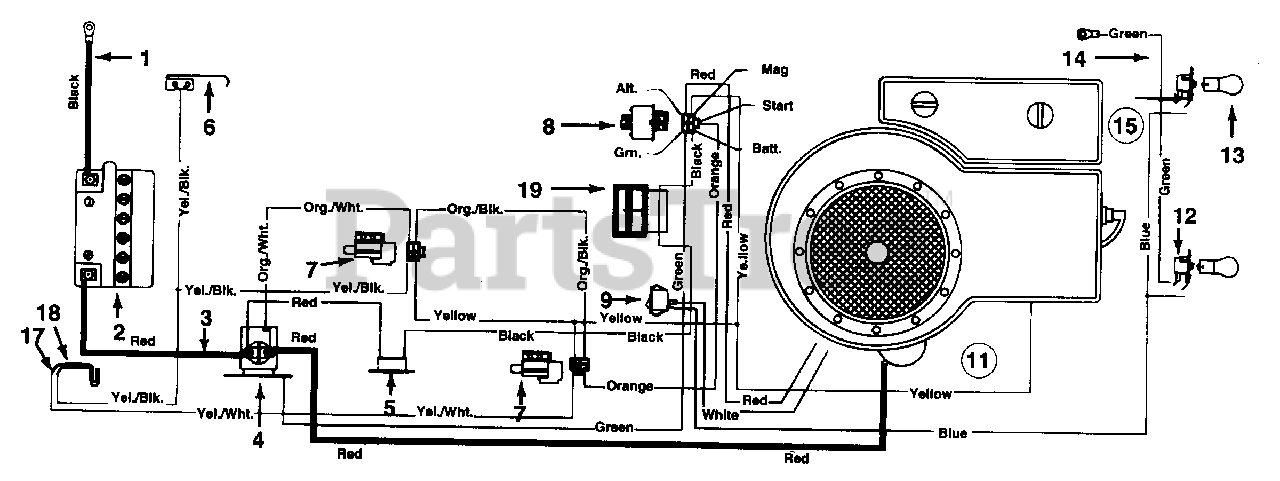

Switches And Lights Wiring Diagram Parts Diagram

  • Title

1

White Outdoor 725-0976A

Ground Wire

$

$

Not available

2

White Outdoor 725-1705

Battery
(Superseded to 925-1707D)

$

$

Not available

3

White Outdoor 725-1351

Electric Wire - 8.0" Lg.

$

$

Not available

4

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$24.99

$

In Stock, Qty 20+

0

5

White Outdoor 725-0459

Circuit Breaker
(Superseded to 753-0685)

$35.99

$

In Stock, only 1 left!

0

6

732-1644

Spring Switch (Reverse)

$

$

Not available

7

White Outdoor 725-1657A

Safety Switch
(Superseded to 925-1657A)

$22.99

$

In Stock, Qty 14

0

8

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

$33.99

$

In Stock, Qty 14

0

9

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$16.99

$

In Stock, Qty 5

0

11

White Outdoor 629-0195

Harness w/Amp & Light Switch
(Superseded to 929-0195A)

$219.99

$

In Stock, only 1 left!

0

12

White Outdoor 725-1651

Socket (Sq. Headlights)
(Superseded to 925-1651)

$

$

Not available

13

White Outdoor 725-0963

Bulb (Sq. Headlights)
(Superseded to 925-0963)

$6.99

$

In Stock, Qty 20+

0

14

White Outdoor 725-0916A

Ground Wire

$

$

Not available

15

White Outdoor 629-0086

Headlight Harness w/Amp & Light Switch

$

$

Not available

17

White Outdoor 725-1303

Safety Switch (Outer)
(Superseded to 925-1303)

$5.99

$

In Stock, Qty 8

0

18

White Outdoor 725-1439

Safety Switch (Inner)

$7.99

$

In Stock, Qty 8

0

19

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$28.99

$

In Stock, only 2 left!

0
