L 1226 E (1695820) - Simplicity 26" Snow Thrower, 11.5hp Auger Housing Group Parts Diagram

26" Snow Thrower, 11.5hp

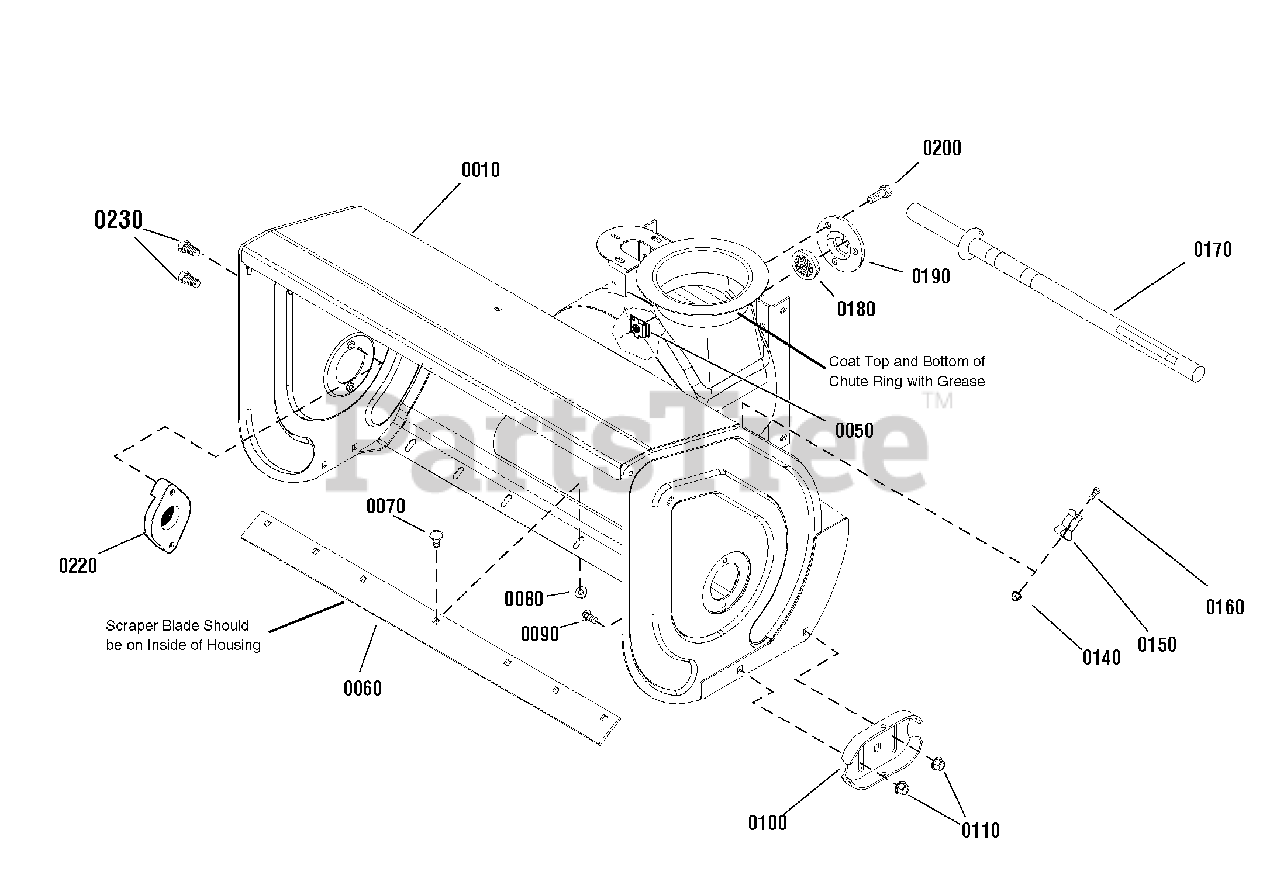

Auger Housing Group Parts Diagram

  • Title

0010

Simplicity 1751184C

AUGER HOUSING ASSEMBLY, 26"
(Superseded to 1687525YP)

$467.99

$

Usually ships in 2-12 days

0

0050

Simplicity 1930659

NUT, Retainer, 5/16-18
(Superseded to 1930659SM)

$5.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1732384A

BLADE, Scraper, 26"
(Superseded to 1732384BMYP)

$48.99

$

In Stock, only 4 left!

0

0070

Simplicity 1960699

BOLT, Carriage, 5/16-18 x 5/8, G5
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

0080

Simplicity 1935048

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0090

Simplicity 1960711

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

0100

Simplicity 1727854BM

SHOE, Skid, Reversible
(Superseded to 1727854BMYP)

$16.99

$

In Stock, only 2 left!

0

0110

Simplicity 1960687

NUT, Hex Flange, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

In Stock, Qty 20+

0

0140

Simplicity 722401

NUT, Nylock, 10 x 24
(Superseded to 703412)

$4.49

$

In Stock, Qty 10

0

0150

Simplicity 1736620

CLAMP, Retainer
(Superseded to 1736620YP)

$6.49

$

In Stock, only 2 left!

0

0160

Simplicity 1960569

SCREW, Truss Head Torx, #10-24 x 3/8
(Superseded to 1960569SM)

$4.49

$

Usually ships in 2-12 days

0

0170

Simplicity 1736094

BRUSH, Cleanout
(Superseded to 1736094YP)

$34.99

$

In Stock, only 2 left!

0

0180

Simplicity 2108202

BEARING, Ball
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

0190

Simplicity 1665982

RETAINER, Ball Bearing
(Superseded to 1665982SM)

$6.99

$

In Stock, only 4 left!

0

0200

Simplicity 1960738

CAPSCREW, Hex Flange, Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 13

0

0220

Simplicity 724427

BEARING, Auger Shaft
(Superseded to 53757MA)

Note: (26" Housing Only)

$9.99

$

In Stock, only 2 left!

0

0230

Simplicity 722839

CAPSCREW, 5/16-18 x 3/4
(Superseded to 703228)

Note: (26" Housing Only)

$4.49

$

In Stock, Qty 20+

0
