L 1226EX (1696010) - Snapper 26" Snow Thrower, 11.5hp Wheels & Tires Group Parts Diagram

26" Snow Thrower, 11.5hp

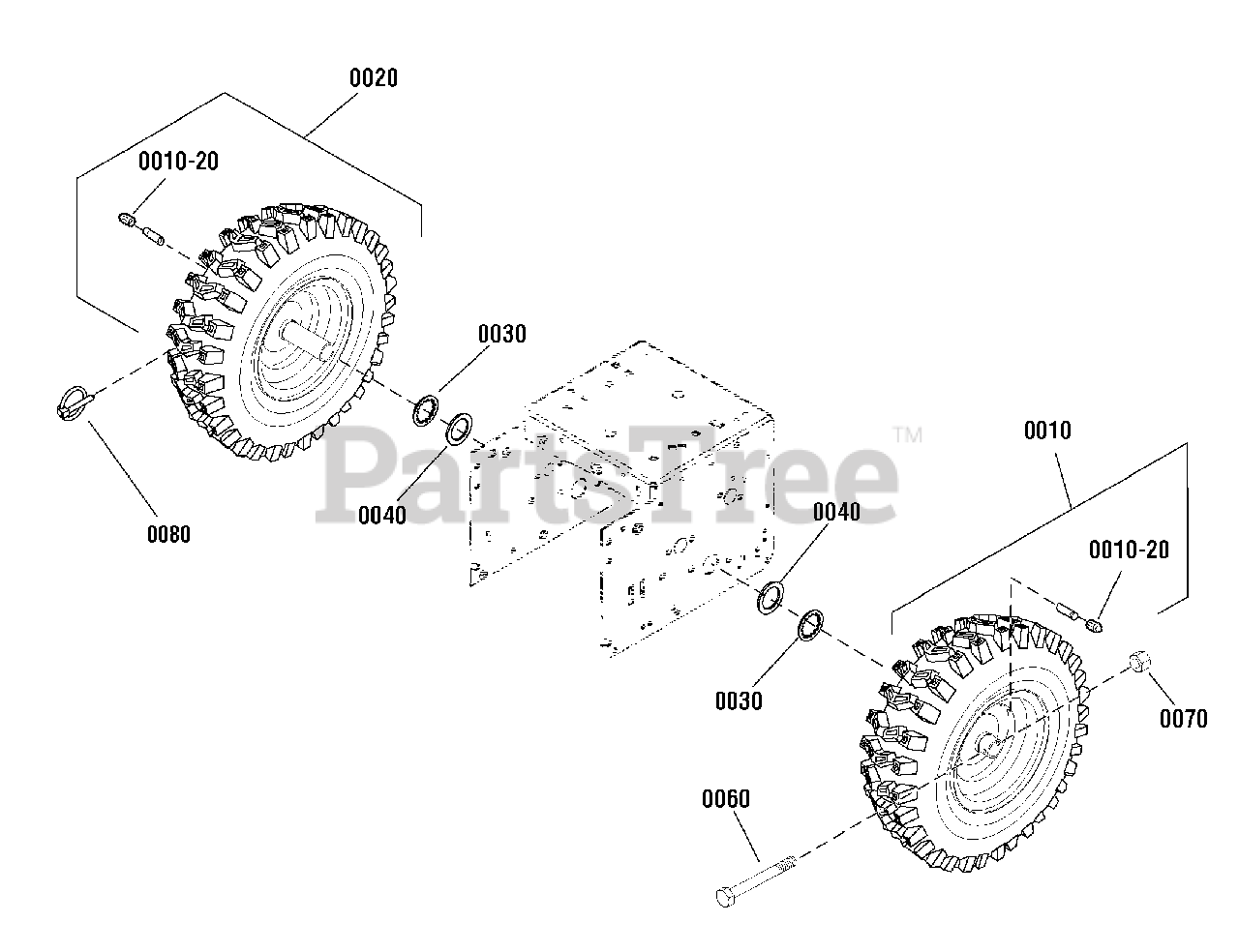

Wheels & Tires Group Parts Diagram

  • Title

0010

Snapper 1739926

WHEEL & TIRE ASSEMBLY, 16 X 4.8, LH
(Superseded to 1739926YP)

$167.99

$

Usually ships in 2-12 days

0

0020

Snapper 1739927

WHEEL & TIRE ASSEMBLY, 16 X 4.8, RH
(Superseded to 1753545YP)

$143.99

$

Usually ships in 2-12 days

0

0010-20

Snapper 2172353

VALVE STEM & CAP
(Superseded to 7012234SM)

$6.49

$

In Stock, only 2 left!

0

0030

Snapper 1657528

RING, Retaining, EXT, Self Lock, 3/4
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

0040

Snapper 725394

WASHER, Flat, 3/4
(Superseded to 712120MA)

$4.99

$

In Stock, only 2 left!

0

0060

Snapper 724545

CAPSCREW, Hex, 1/4-20 x 1-3/4, G5
(Superseded to 577015MA)

$4.99

$

In Stock, Qty 7

0

0070

Snapper 722400

NUT, Nylock, 1/4 x 20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0080

Snapper 725431

PIN, Klik
(Superseded to 500016MA)

$15.99

$

In Stock, only 3 left!

0
