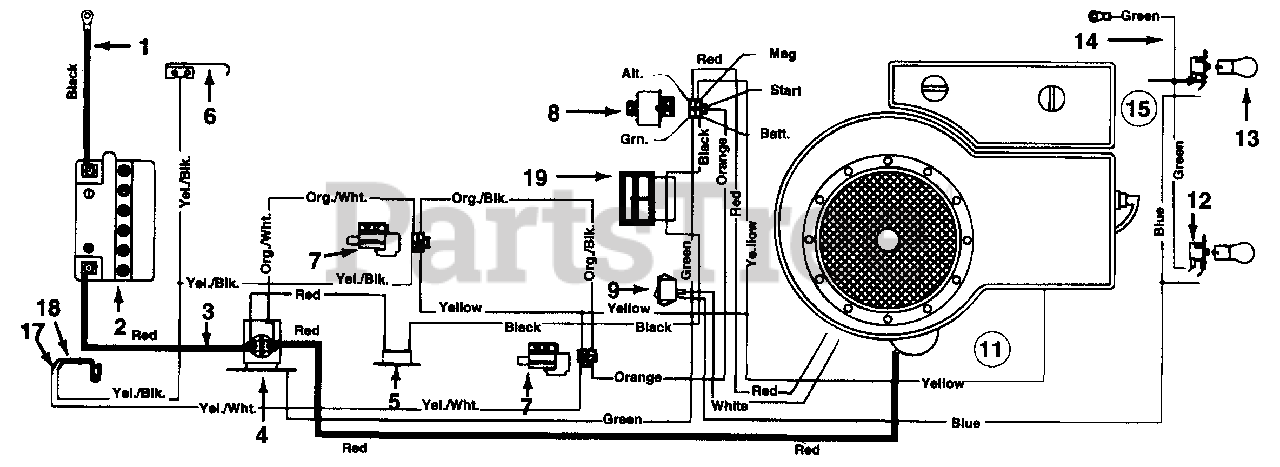

L-13 (13A5472F190) - White Outdoor 38" Lawn Tractor (1997) Electrical System Parts Diagram

38" Lawn Tractor

Electrical System Parts Diagram

  • Title

1

White Outdoor 629-0702

Ground Wire

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

2

725-1705B

Battery

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

3

White Outdoor 629-0705

Electric Wire - 14.0" Lg.

Note: Code: N Notates a new part (not previously existing)

$

$

Not available

4

White Outdoor 725-1426

Solenoid
(Superseded to 925-1426A)

$24.99

$

In Stock, Qty 20+

0

5

White Outdoor 725-0459

Circuit Breaker
(Superseded to 753-0685)

$35.99

$

In Stock, only 1 left!

0

6

White Outdoor 725-1644

Spring Switch (Reverse)

$8.99

$

In Stock, only 2 left!

0

7

White Outdoor 725-1657A

Safety Switch
(Superseded to 925-1657A)

$22.99

$

In Stock, Qty 14

0

8

White Outdoor 725-0267

Ignition Switch
(Superseded to 925-0267B)

$33.99

$

In Stock, Qty 14

0

9

White Outdoor 725-0634

Light Switch
(Superseded to 925-0634)

$16.99

$

In Stock, Qty 5

0

11

White Outdoor 629-0195

Harness w/Amp & Light Switch
(Superseded to 929-0195A)

$219.99

$

In Stock, only 1 left!

0

12

White Outdoor 725-1649

Socket
(Superseded to 925-1649A)

Note: (Sq. Headlights)

$10.99

$

In Stock, Qty 20+

0

13

White Outdoor 725-0963

Bulb
(Superseded to 925-0963)

Note: (Sq. Headlights)

$6.99

$

In Stock, Qty 20+

0

14

White Outdoor 725-0916A

Ground Wire

$

$

Not available

15

White Outdoor 629-0086

Headlight Harness w/Amp & Light Switch

$

$

Not available

17

White Outdoor 725-1303

Safety Switch (Outer)
(Superseded to 925-1303)

$5.99

$

In Stock, Qty 8

0

18

White Outdoor 725-1439

Safety Switch (Inner)

$7.99

$

In Stock, Qty 8

0

19

White Outdoor 725-0925

Ammeter
(Superseded to 925-0925)

$28.99

$

In Stock, only 2 left!

0
