L 1528 E (1695822) - Simplicity 28" Snow Thrower, 14.5hp Engine & Frame Group - 14.5TP & 16.5TP Parts Diagram

28" Snow Thrower, 14.5hp

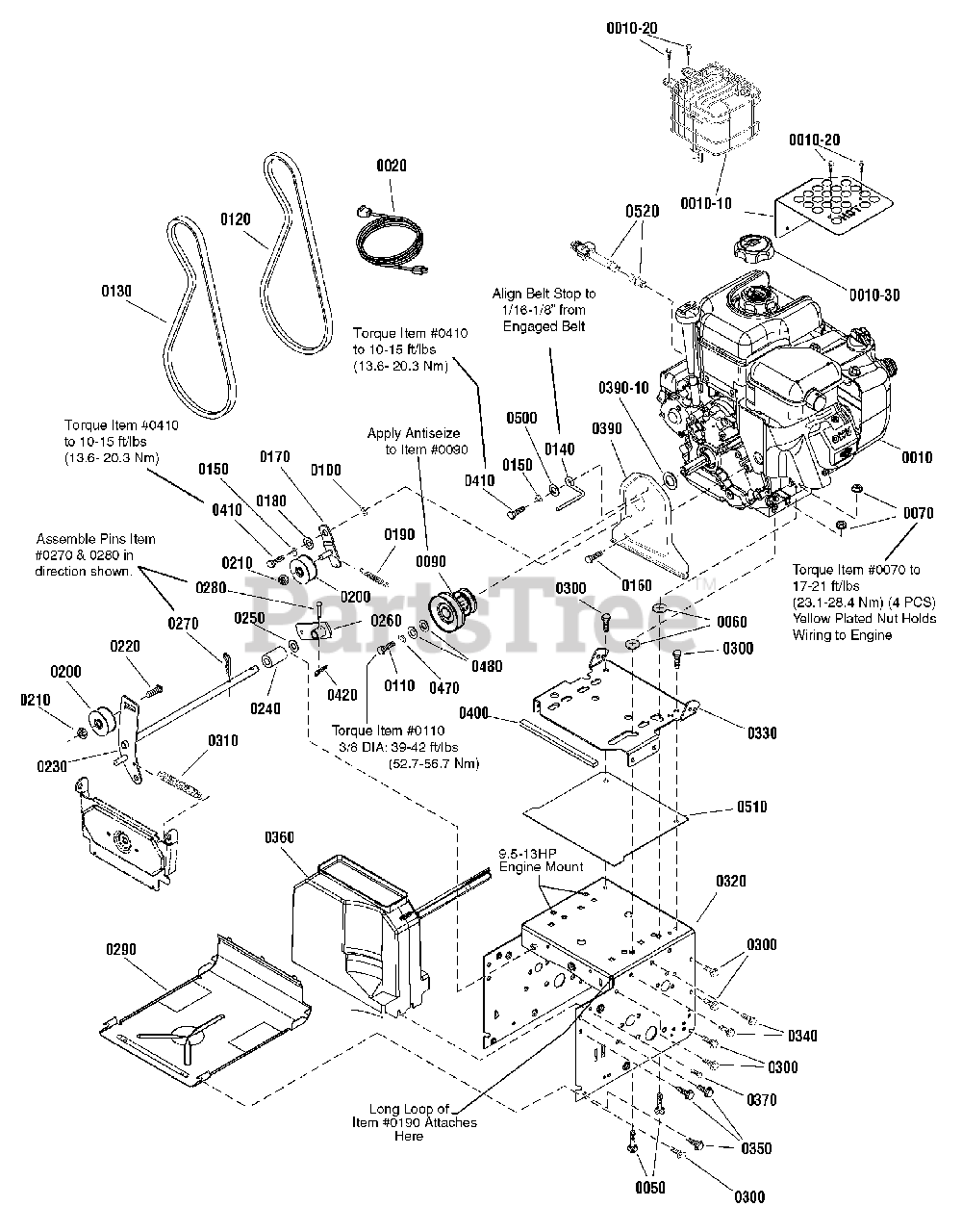

Engine & Frame Group - 14.5TP & 16.5TP Parts Diagram

  • Title

0010

Simplicity 20M314-0130-E1

* ENGINE, 14.5TP Briggs & Stratton

Note: (Engine Model: 15C114-0120-E8) (Domestic Models Only)

$

$

Not available

0010

Simplicity 20M314-0131-E1

* ENGINE, 14.5TP Briggs & Stratton

Note: (Engine Model: 20M314-0131-E1) (CE/Export Models Only)

$

$

Not available

0010

Simplicity 21M314-0119-E1

* ENGINE, 16.5TP Briggs & Stratton

Note: (Engine Model: 21M314-0119-E1) (Domestic Models Only)

$

$

Not available

0010

Simplicity 21M314-0122-E1

* ENGINE, 16.5TP Briggs & Stratton

Note: (Engine Model: 21M314-0122-E1) (CE/Export Models Only)

$

$

Not available

0010-10

Simplicity 797095

GUARD, Muffler, Plate

Note: (Domestic)

$50.99

$

Usually ships in 2-12 days

0

0010-10

Simplicity 796384

GUARD, Muffler, Cage

Note: (Export)

$92.99

$

Usually ships in 2-12 days

0

0010-20

Simplicity 699234

CAPSCREW, Hex Washer Head, Muffler Guard

$4.49

$

In Stock, Qty 8

0

0010-30

Simplicity 795027

CAP, Fuel

$10.99

$

In Stock, Qty 14

0

0020

Simplicity 724865

CORD, 10FT, 110V
(Superseded to 6219MA)

Note: (Domestic Only)

$42.99

$

In Stock, only 1 left!

0

0050

Simplicity 720064

BOLT, Carriage, 5/16-18 x 1-1/2
(Superseded to 704210)

$4.99

$

In Stock, only 3 left!

0

0060

Simplicity 720376

NUT, Push, For 1/4 Stud
(Superseded to 028X76MA)

$4.49

$

Usually ships in 2-12 days

0

0070

Simplicity 1739305

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0090

Simplicity 722085

PULLEY
(Superseded to 1501109MA)

$43.99

$

In Stock, only 2 left!

0

0100

Simplicity 1919381

WASHER, 5/16
(Superseded to 1919381SM)

$4.49

$

In Stock, Qty 13

0

0110

Simplicity 1960428

CAPSCREW, Hex Head, 3/8-24 x 1-1/4, G8
(Superseded to 1960428SM)

$4.49

$

Usually ships in 2-12 days

0

0120

Simplicity 1733324

V-BELT, Drive, 3L 33.13
(Superseded to 1733324SM)

$19.99

$

In Stock, only 3 left!

0

0130

Simplicity 1736421

V-BELT, 4L, 38.35, Auger
(Superseded to 1736421YP)

$30.99

$

In Stock, only 2 left!

0

0140

Simplicity 1739070

BELT GUIDE
(Superseded to 1739070YP)

$8.49

$

In Stock, only 2 left!

0

0150

Simplicity 1917356

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 6

0

0160

Simplicity 1921515

CAPSCREW, Hex Head, 5/16-24 x 3/4, G5
(Superseded to 1921515SM)

$3.99

$

Usually ships in 2-12 days

0

0170

Simplicity 722090

BRACKET, Idler
(Superseded to 1687797YP)

$8.99

$

In Stock, only 2 left!

0

0180

Simplicity 722072

BUSHING, Idler Bracket
(Superseded to 1501065MA)

$5.99

$

In Stock, only 2 left!

0

0190

Simplicity 722457

SPRING, Extension, Idler
(Superseded to 165X164MA)

$7.99

$

In Stock, only 2 left!

0

0200

Simplicity 722378

IDLER, Plastic Ball Bearing
(Superseded to 1502120MA)

$23.99

$

In Stock, only 2 left!

0

0210

Simplicity 1960251

NUT, Hex Center Lock Jam, 3/8-16
(Superseded to 703230)

$5.49

$

In Stock, Qty 9

0

0220

Simplicity 724823

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/4, G5
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

0230

Simplicity 722132

AUGER IDLER
(Superseded to 1501226YZMA)

$55.99

$

Usually ships in 2-12 days

0

0240

Simplicity 722118

SPACER, 1/2 ID x 1 OD x 1-3/4"
(Superseded to 1501200MA)

$6.49

$

Usually ships in 2-12 days

0

0250

Simplicity 80003590

WASHER, 1/2
(Superseded to 703128)

$3.99

$

In Stock, Qty 20+

0

0260

Simplicity 1733451

ARM, Control
(Superseded to 1733451SM)

$22.99

$

In Stock, only 2 left!

0

0270

Simplicity 725367

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0280

Simplicity 1736381

PIN, Clevis
(Superseded to 703313)

$5.49

$

In Stock, only 2 left!

0

0290

Simplicity 1740906BM

PANEL, Bottom
(Superseded to 1753969BMYP)

$

$

Not available

0300

Simplicity 1927429

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 11

0

0310

Simplicity 722455

SPRING, Extension, Auger
(Superseded to 165X159MA)

$7.49

$

In Stock, Qty 6

0

0320

Simplicity 1733154C

FRAME
(Superseded to 1733154CSM)

$109.99

$

Usually ships in 2-12 days

0

0330

Simplicity 1733583C

PLATE, Engine Mount
(Superseded to 1733583CSM)

$51.99

$

Usually ships in 2-12 days

0

0340

Simplicity 722838

CAPSCREW, Hex Washer Head, 5/16-18 x 1/2
(Superseded to 25X020MA)

$5.49

$

In Stock, Qty 6

0

0350

Simplicity 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0360

Simplicity 1733923

BELT COVER ASSEMBLY
(Superseded to 1733923SM)

$80.99

$

In Stock, only 2 left!

0

0370

Simplicity 722887

SCREW, Hex Washer Head, Tapping, SEMS, 1/4 x 3/4
(Superseded to 26X306MA)

$4.99

$

Usually ships in 2-12 days

0

0390

Simplicity 1750157

WATER SHIELD ASSEMBLY
(Superseded to 1750157YP)

Note: (Includes Ref. No. 0390-10)

$

$

Not available

0390-10

Simplicity 1750185

SEAL, Shaft
(Superseded to 1750185YP)

$7.49

$

Usually ships in 2-12 days

0

0400

Simplicity 1750172

SEAL, Strip
(Superseded to 1750172YP)

$7.99

$

Usually ships in 2-12 days

0

0410

Simplicity 725996

CAPSCREW, Hex, 5/16-24 x 1
(Superseded to 703301)

$4.49

$

In Stock, only 4 left!

0

0420

Simplicity 7023590

PIN, Cotter, Self Lock, 1/4
(Superseded to 7023590SM)

$4.49

$

In Stock, Qty 20+

0

0470

Simplicity 1916955

WASHER, 3/16
(Superseded to 1916955SM)

Note: (16.5TP Models)

$3.49

$

Usually ships in 2-12 days

0

0470

Simplicity 1916965

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

Note: (14.5TP Models)

$3.49

$

In Stock, Qty 5

0

0480

Simplicity 1922755

WASHER, 3/8
(Superseded to 704128)

$5.49

$

In Stock, Qty 20+

0

0500

Simplicity 7091528

WASHER, Flat, 3/8
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

0510

Simplicity 1750134

SEAL, Engine Plate
(Superseded to 1750134YP)

$18.99

$

Usually ships in 2-12 days

0

0520

Simplicity 798980

OIL DRAIN ASSEMBLY

$

$

Not available
