L 1528 E (1695987) - Simplicity 28" Snow Thrower, 14.5hp Auger Housing Group Parts Diagram

28" Snow Thrower, 14.5hp

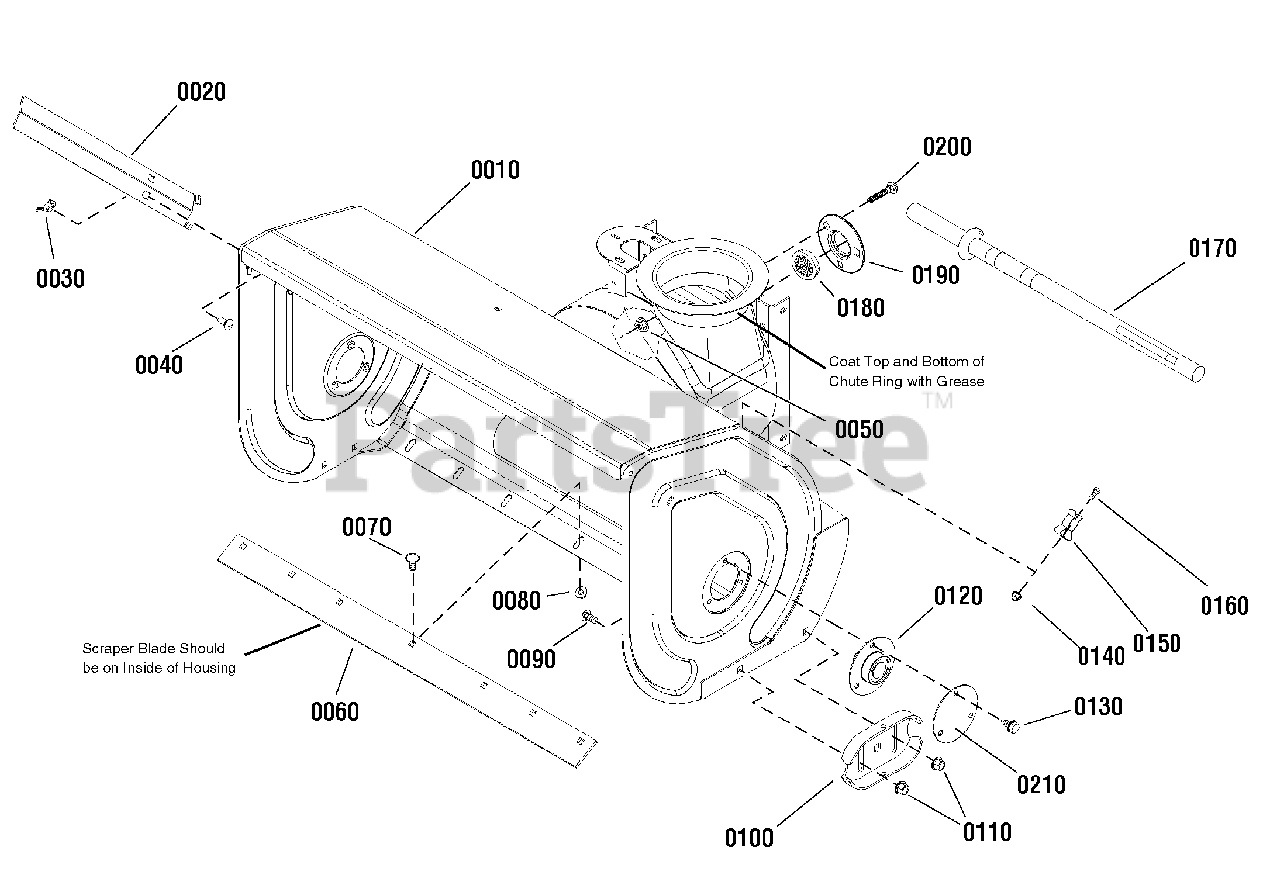

Auger Housing Group Parts Diagram

  • Title

0010

Simplicity 1738252C

AUGER HOUSING ASSEMBLY, 28"
(Superseded to 1687540YP)

$501.99

$

Usually ships in 2-12 days

0

0010

Simplicity 1738434C

AUGER HOUSING ASSEMBLY, 30"
(Superseded to 1687553YP)

$569.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1733102BM

DRIFT CUTTER
(Superseded to 1733102ASM)

$32.99

$

In Stock, only 4 left!

0

0030

Simplicity 725347

NUT, Wing, Serrated, 5/16-18
(Superseded to 703141)

$3.99

$

In Stock, only 2 left!

0

0040

Simplicity 723873

BOLT, Carriage, 5/16-18 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

0050

Simplicity 1739305YP

NUT, Hex Flange, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0050

Simplicity 1930659

NUT, Retainer, 5/16-18
(Superseded to 1930659SM)

$6.49

$

Usually ships in 2-12 days

0

0060

Simplicity 1709947BM

BLADE, Scraper, 28"
(Superseded to 1709947BMYP)

$48.99

$

In Stock, Qty 11

0

0060

Simplicity 1732385BM

BLADE, Scraper, 30"
(Superseded to 1732385BMYP)

$54.99

$

In Stock, only 2 left!

0

0070

Simplicity 1960699

BOLT, Carriage, 5/16-18 x 5/8, G5
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

0080

Simplicity 1935048

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0090

Simplicity 1960711

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

0100

Simplicity 1727854BM

SHOE, Skid, Reversible
(Superseded to 1727854BMYP)

$16.99

$

In Stock, Qty 13

0

0110

Simplicity 1960687

NUT, Hex Flange, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0120

Simplicity 1733103

BEARING, Flange
(Superseded to 1733103SM)

$12.99

$

In Stock, only 2 left!

0

0130

Simplicity 1931202

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, only 4 left!

0

0140

Simplicity 722401

NUT, Nylock, 10 x 24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0150

Simplicity 1736620

CLAMP, Retainer
(Superseded to 1736620YP)

$6.99

$

In Stock, Qty 8

0

0160

Simplicity 1960569

SCREW, Truss Head Torx, #10-24 x 3/8
(Superseded to 1960569SM)

$4.49

$

Usually ships in 2-12 days

0

0170

Simplicity 1736094

BRUSH, Cleanout
(Superseded to 1736094YP)

$36.99

$

In Stock, only 2 left!

0

0180

Simplicity 2108202

BEARING, Ball
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

0190

Simplicity 1665982

RETAINER, Ball Bearing
(Superseded to 1665982SM)

$7.49

$

In Stock, only 4 left!

0

0200

Simplicity 1931333SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0200

Simplicity 1960738

CAPSCREW, Hex Flange, Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 13

0

0210

Simplicity 1734932BM

COVER, Bushing
(Superseded to 1734932BMYP)

$12.99

$

Usually ships in 2-12 days

0
