L-155 - Toro Lawn Tractor (1965)

Lawn Tractor

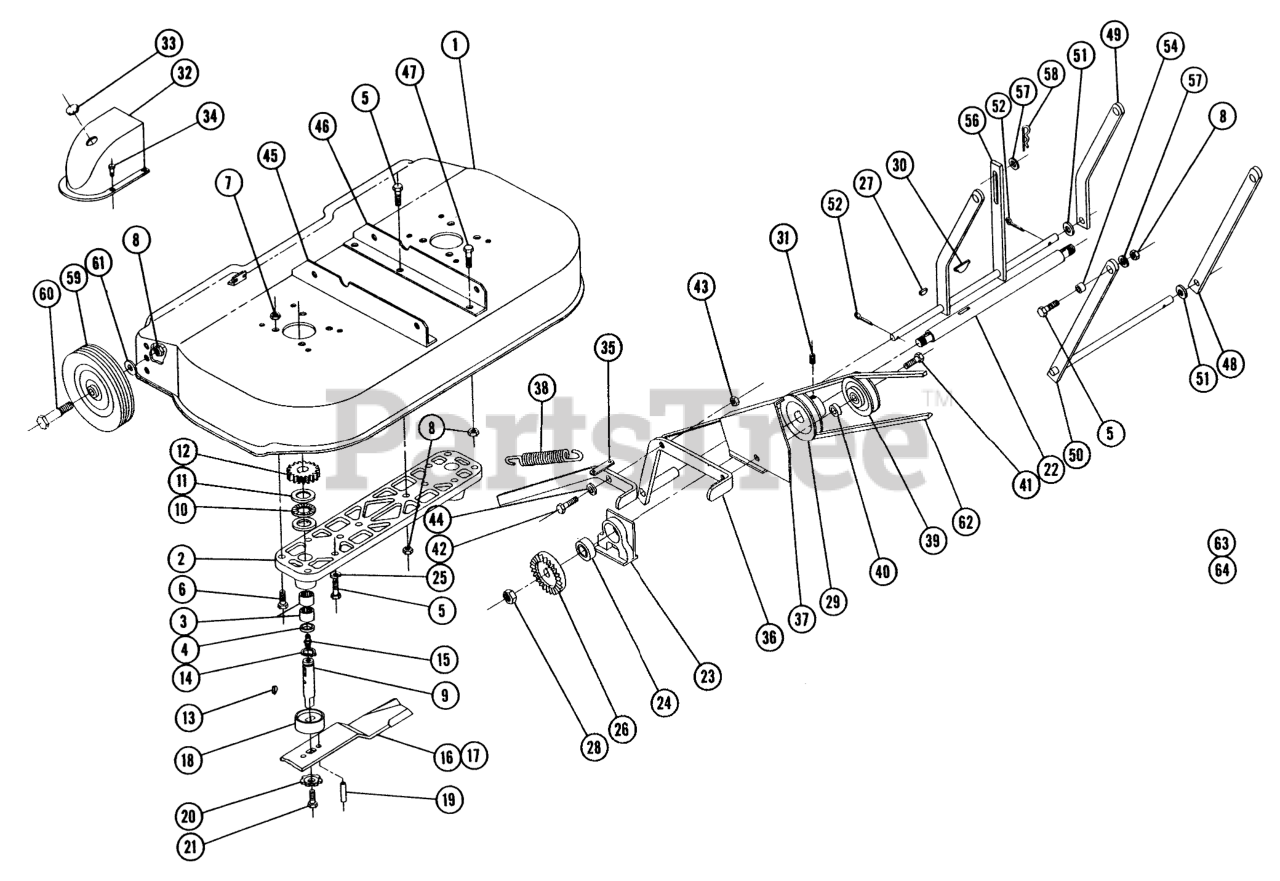

L-155 - Toro Lawn Tractor (1965) > Parts Diagrams (2) > RM-115 32" MOWER (LAWN RANGER) PARTS LIST

  • Title
5605

1

Ass-y. Deck

Part# 5605

OEM Warranty Repair Part for Toro

Currently unavailable

5233

2

Housing

Part# 5233

OEM Warranty Repair Part for Toro

Not available

1508

3

NEEDLE BEARING

Part# 1508 (Superseded to 252-6)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.55

1303

4

Seal

Part# 1303 (Superseded to 100441)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.67

908034-4

5

Bolt 3/8-16 x 1

Part# 908034-4

OEM Warranty Repair Part for Toro

Currently unavailable

908017-4

6

Bolt 5/16-18 x

Part# 908017-4

OEM Warranty Repair Part for Toro

Currently unavailable

915112-6

7

Nut-Nylok

Part# 915112-6

OEM Warranty Repair Part for Toro

Currently unavailable

915663-4

8

3/8-16 E.S.

Part# 915663-4

OEM Warranty Repair Part for Toro

Currently unavailable

3724

9

Spindle

Part# 3724

OEM Warranty Repair Part for Toro

Not available

1534

10

Bearing Thrust

Part# 1534 (Superseded to 99-3836)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $11.50

1535

11

WASHER-THRUST

Part# 1535

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.13

3131

12

SPUR GEAR

Part# 3131

OEM Warranty Repair Part for Toro

Not available

937084

13

WOODRUFF KEY

Part# 937084

OEM Warranty Repair Part for Toro

Not available

936125

14

RING-SNAP, EXTERNAL

Part# 936125 (Superseded to 32120-72)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.70

1030

15

Zerk

Part# 1030

OEM Warranty Repair Part for Toro

Not available

3718

16

Blade R.H. 15"

Part# 3718 (Superseded to 704058)

OEM Warranty Repair Part for Toro

Not available

3719

17

Blade L.H. 16"

Part# 3719 (Superseded to 704155)

OEM Warranty Repair Part for Toro

Not available

3716

18

SPINDLE CUP

Part# 3716

OEM Warranty Repair Part for Toro

Not available

933211

19

SPIROL ROLL PIN

Part# 933211

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.39

1336

20

WASHER

Part# 1336

OEM Warranty Repair Part for Toro

Not available

908033-6

21

Bolt 3/8-16 x 7/8

Part# 908033-6

OEM Warranty Repair Part for Toro

Currently unavailable

5234

22

Cross Shaft

Part# 5234 (Superseded to 3715)

OEM Warranty Repair Part for Toro

Not available

3138

23

BEARING SUPPORT

Part# 3138

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $132.00

1515

24

Ball

Part# 1515 (Superseded to 101480)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $36.88

920083-4

25

Lockwasher

Part# 920083-4

OEM Warranty Repair Part for Toro

Currently unavailable

3130

26

Gear

Part# 3130 (Superseded to 7898)

OEM Warranty Repair Part for Toro

Not available

937009

27

Key #5 Woodruff

Part# 937009 (Superseded to 937084)

OEM Warranty Repair Part for Toro

Not available

915639-4

28

Nut Hex 5/8-18 Thin

Part# 915639-4

OEM Warranty Repair Part for Toro

Currently unavailable

1613

29

PULLEY

Part# 1613

OEM Warranty Repair Part for Toro

Not available

937159

30

Key

Part# 937159 (Superseded to 937225)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.25

909862-6

31

Set Screw 5/16-18 x 5/16

Part# 909862-6

OEM Warranty Repair Part for Toro

Currently unavailable

3141

32

COVER GEAR

Part# 3141

OEM Warranty Repair Part for Toro

Not available

3757

33

PLUG BUTTON

Part# 3757

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.17

1304

34

SCREW

Part# 1304

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.35

4924

35

Clutch Latch

Part# 4924

OEM Warranty Repair Part for Toro

Not available

4927

36

59027 1969 OPC

Part# 4927

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.23

4931

37

Shield

Part# 4931

OEM Warranty Repair Part for Toro

Not available

1486

38

Spring-Clutch

Part# 1486 (Superseded to 83-2730)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $12.44

1623

39

Pulley

Part# 1623 (Superseded to 92-7102)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $42.28

1536

40

BUSHING

Part# 1536

OEM Warranty Repair Part for Toro

Not available

908033-4

41

Bolt 3/8-16 x 7/8

Part# 908033-4

OEM Warranty Repair Part for Toro

Currently unavailable

908005-4

42

Bolt-Hex 1/4-20

Part# 908005-4

OEM Warranty Repair Part for Toro

Currently unavailable

915111-6

43

Nut-Nylok

Part# 915111-6

OEM Warranty Repair Part for Toro

Currently unavailable

920007-4

44

Washer

Part# 920007-4

OEM Warranty Repair Part for Toro

Currently unavailable

5242

45

Bracket Mtg. R.H.

Part# 5242

OEM Warranty Repair Part for Toro

Currently unavailable

5243

46

Bracket Mtg. L.H.

Part# 5243

OEM Warranty Repair Part for Toro

Currently unavailable

908032-4

47

Bolt 3/8-16 x 3/4

Part# 908032-4

OEM Warranty Repair Part for Toro

Currently unavailable

4940

48

Link-Front

Part# 4940

OEM Warranty Repair Part for Toro

Currently unavailable

4939

49

Link-Rear

Part# 4939

OEM Warranty Repair Part for Toro

Not available

4938

50

Rod-Front Link Pivot

Part# 4938

OEM Warranty Repair Part for Toro

Not available

920011-4

51

Washer

Part# 920011-4

OEM Warranty Repair Part for Toro

Currently unavailable

932017-4

52

Cotter Pin

Part# 932017-4

OEM Warranty Repair Part for Toro

Currently unavailable

4936

53

Rod-Rear Link Pivot

Part# 4936

OEM Warranty Repair Part for Toro

Not available

4937

54

SPACER

Part# 4937

OEM Warranty Repair Part for Toro

Not available

915663-4

55

3/8-16 E.S.

Part# 915663-4

OEM Warranty Repair Part for Toro

Currently unavailable

5244

56

Bar Lift

Part# 5244

OEM Warranty Repair Part for Toro

Currently unavailable

920009-4

57

Washer

Part# 920009-4

OEM Warranty Repair Part for Toro

Currently unavailable

933504

58

Hairpin

Part# 933504 (Superseded to 9335044)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.94

2877

59

Wheel

Part# 2877 (Superseded to 110506)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $24.59

5188

60

BOLT-SHOULDER

Part# 5188

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $4.46

MW-4304

61

Washer 3/8

Part# MW-4304

OEM Warranty Repair Part for Toro

Currently unavailable

1555

62

"V" Belt

Part# 1555 (Superseded to 113912)

OEM Warranty Repair Part for Toro

Not available

3710

63

Decal

Part# 3710

OEM Warranty Repair Part for Toro

Currently unavailable

4570

64

Decal

Part# 4570 (Superseded to 93-1122)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $7.19
