L-156 - Toro Lawn Tractor (1966)

Lawn Tractor

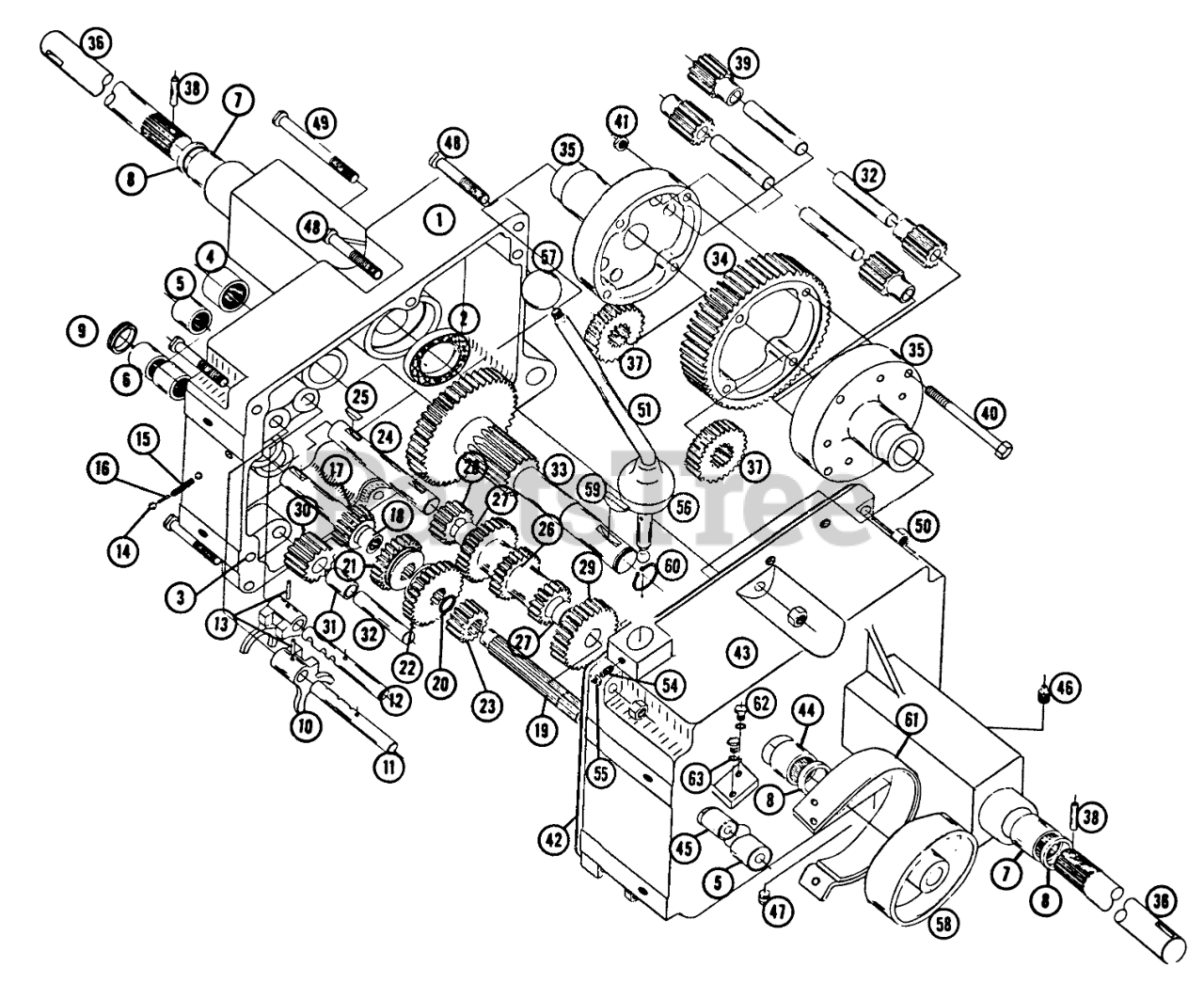

L-156 - Toro Lawn Tractor (1966) > Parts Diagrams (2) > TRANSMISSION PARTS LIST

  • Title
3900

1

Case R.H

Part# 3900

OEM Warranty Repair Part for Toro

Not available

1533

2

BALL BRG 1 1/2 I.D.

Part# 1533

OEM Warranty Repair Part for Toro

Not available

3915

3

PIN-DOWEL

Part# 3915

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.87

1532

4

BEARING-NEEDLE

Part# 1532

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $34.56

1529

5

BEARING-NEEDLE

Part# 1529

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $29.27

1508

6

NEEDLE BEARING

Part# 1508 (Superseded to 252-6)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.55

1528

7

BEARING-NEEDLE

Part# 1528

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $35.01

1232

8

Seal

Part# 1232 (Superseded to 100863)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $9.88

1303

9

Seal

Part# 1303 (Superseded to 100441)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.67

3503

10

FORK-SHIFT

Part# 3503

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $88.24

5615

11

RAIL-SHIFT

Part# 5615

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $75.31

5616

12

RAIL-REAR SHIFT

Part# 5616

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $53.19

933156

13

PIN-ROLL

Part# 933156

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

3517

14

BALL-DETENT

Part# 3517

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.35

3518

15

Spring

Part# 3518 (Superseded to 106030)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.74

5614

16

PIN-SHIFT

Part# 5614

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.29

3522

17

INPUT SHAFT

Part# 3522

OEM Warranty Repair Part for Toro

Not available

1518

18

BEARING-NEEDLE

Part# 1518

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $18.07

3907

19

Shaft Spline

Part# 3907

OEM Warranty Repair Part for Toro

Not available

936125

20

RING-SNAP, EXTERNAL

Part# 936125 (Superseded to 32120-72)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.70

3523

21

GEAR

Part# 3523

OEM Warranty Repair Part for Toro

Not available

3524

22

GEAR

Part# 3524

OEM Warranty Repair Part for Toro

Not available

3526

23

GEAR

Part# 3526

OEM Warranty Repair Part for Toro

Not available

3910

24

Cluster Shaft

Part# 3910

OEM Warranty Repair Part for Toro

Not available

937014

25

Key

Part# 937014 (Superseded to 3257-5)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.90

3525

26

Cluster Gear

Part# 3525 (Superseded to 7269)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $673.92

1504

27

BUSHING-BRONZE

Part# 1504

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $29.69

3528

28

GEAR-PINION

Part# 3528

OEM Warranty Repair Part for Toro

Not available

3527

29

GEAR-CLUSTER SHAFT

Part# 3527

OEM Warranty Repair Part for Toro

Not available

4204

30

GEAR/BUSHING ASM-REVERSE IDLER

Part# 4204

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $104.55

1516

31

BUSHING

Part# 1516

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.77

3909

32

PIN-DIFFERENTIAL

Part# 3909

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $8.09

3903

33

Brake Shaft Gear

Part# 3903

OEM Warranty Repair Part for Toro

Not available

3906

34

Bull Gear

Part# 3906

OEM Warranty Repair Part for Toro

Not available

3905

35

DIFFERENTIAL CASE

Part# 3905

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $114.36

3904

36

Axle

Part# 3904

OEM Warranty Repair Part for Toro

Not available

3908

37

AXLE GEAR

Part# 3908

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $103.48

933217

38

SPIROL ROLL PIN

Part# 933217

OEM Warranty Repair Part for Toro

Not available

4235

39

GEAR DIFF PINION

Part# 4235

OEM Warranty Repair Part for Toro

Not available

1329

40

Tine-R.H.

Part# 1329 (Superseded to 703223)

OEM Warranty Repair Part for Toro

Not available

1316

41

Lock Nut 5/16-18

Part# 1316 (Superseded to 108687)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.77

3912

42

GASKET-TRANSMISSION

Part# 3912

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $5.94

3901

43

Case LH.

Part# 3901

OEM Warranty Repair Part for Toro

Not available

1530

44

Bearing-Needle

Part# 1530 (Superseded to 704019)

OEM Warranty Repair Part for Toro

Not available

1531

45

Bearing Needle

Part# 1531

OEM Warranty Repair Part for Toro

Not available

943460-4

46

Plug 1/4 Pipe

Part# 943460-4

OEM Warranty Repair Part for Toro

Currently unavailable

943420-4

47

Plug 3/8 Pipe

Part# 943420-4

OEM Warranty Repair Part for Toro

Currently unavailable

908038-4

48

Bolt, 3/8 16 x 2

Part# 908038-4

OEM Warranty Repair Part for Toro

Currently unavailable

908043-4

49

Bolt Hex 3/8-16 x 1

Part# 908043-4

OEM Warranty Repair Part for Toro

Currently unavailable

915113-6

50

Nut

Part# 915113-6

OEM Warranty Repair Part for Toro

Currently unavailable

5279

51

Stick-Ship Ass-y.

Part# 5279

OEM Warranty Repair Part for Toro

Currently unavailable

6438

54

Screw-Sq Hd-Set 1/4-20 x 3/4

Part# 6438

OEM Warranty Repair Part for Toro

Not available

915111-4

55

Nut 1/4-20

Part# 915111-4

OEM Warranty Repair Part for Toro

Currently unavailable

3577

56

COVER-DUST

Part# 3577

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $8.35

1001

57

Knob

Part# 1001

OEM Warranty Repair Part for Toro

Not available

3902

58

Brake Drum

Part# 3902

OEM Warranty Repair Part for Toro

Not available

937022

59

WOODRUFF KEY

Part# 937022

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.01

936131

60

Snap Ring

Part# 936131 (Superseded to 32151-29)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.34

4437

61

Band-Brake

Part# 4437 (Superseded to 7376)

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $102.73

908002-4

62

Bolt-1/4-20 x 5/8

Part# 908002-4

OEM Warranty Repair Part for Toro

Currently unavailable

920081-4

63

Lockwasher

Part# 920081-4

OEM Warranty Repair Part for Toro

Currently unavailable
