L 1630E (1695682) - Snapper 30" Snow Thrower, 15.5hp Engine Group - 13.5TP & 15.5TP Parts Diagram

30" Snow Thrower, 15.5hp

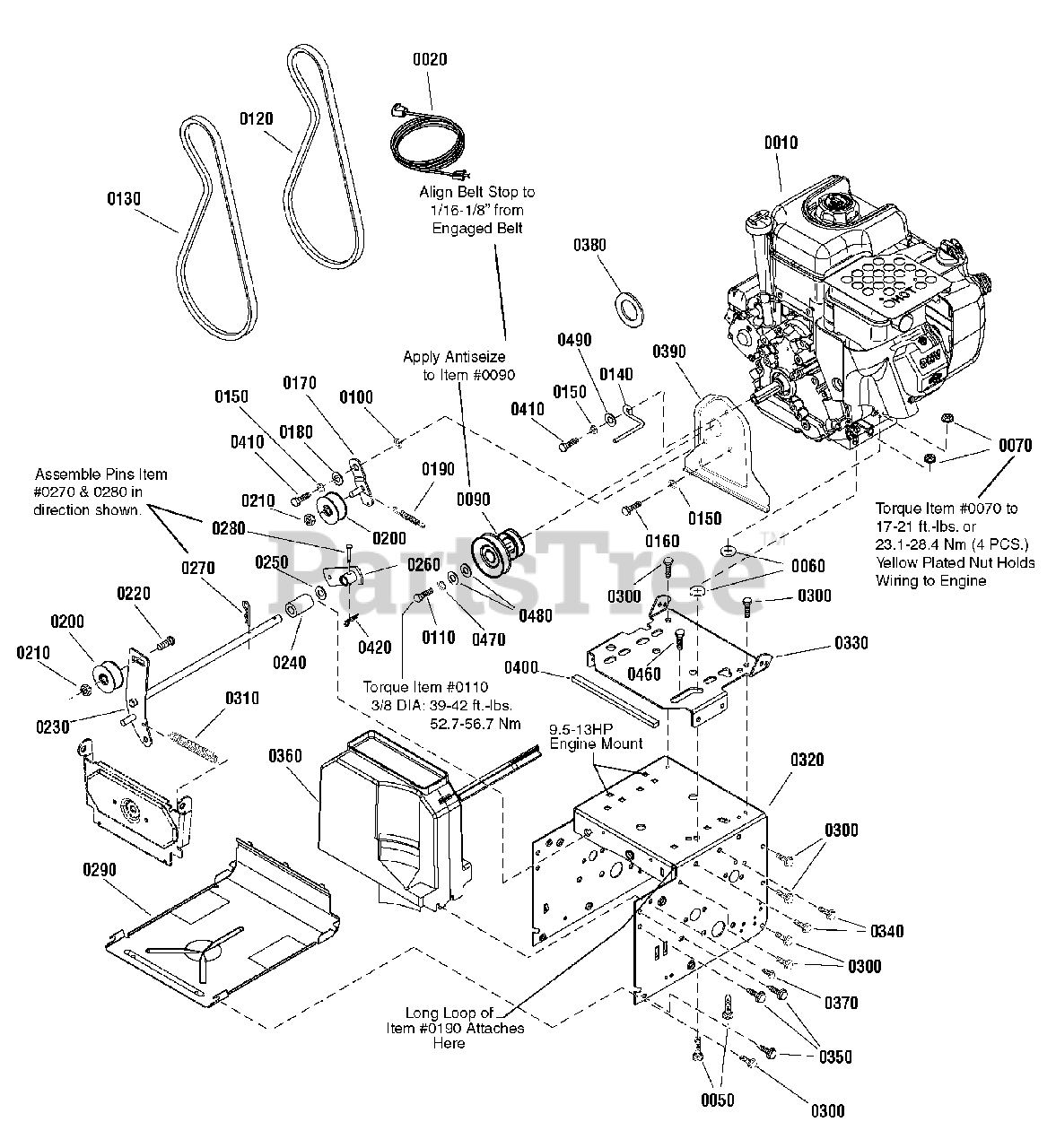

Engine Group - 13.5TP & 15.5TP Parts Diagram

  • Title

0010

Snapper 20M214-0132-E1

* ENGINE, 13.5TP, Briggs & Stratton

Note: (Domestic) (Engine Model: 20M214-0132-E1)

$

$

Not available

0010

Snapper 20M214-0131-E1

* ENGINE, 13.5TP, Briggs & Stratton

Note: (CE/Export) (Engine Model: 20M214-0131-E1)

$

$

Not available

0010

Snapper 21M214-0139-E1

* ENGINE, 15.5TP, Briggs & Stratton

Note: (Domestic) (Engine Model: 21M214-0139-E1)

$

$

Not available

0010

Snapper 21M214-0119-E1

* ENGINE, 15.5TP, Briggs & Stratton

Note: (CE/Export) (Engine Model: 21M214-0119-E1)

$

$

Not available

0020

Snapper 724865

CORD, Electric
(Superseded to 6219MA)

Note: (Domestic)

$40.99

$

In Stock, only 3 left!

0

0050

Snapper 720064

BOLT, Carriage, 5/16-18 x 1-1/2
(Superseded to 704210)

$4.99

$

Usually ships in 2-12 days

0

0060

Snapper 720376

NUT, Push
(Superseded to 028X76MA)

$4.49

$

In Stock, only 1 left!

0

0070

Snapper 1739305

NUT, 5/16-18, ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 7

0

0090

Snapper 722085

PULLEY, Engine
(Superseded to 1501109MA)

$41.99

$

In Stock, Qty 6

0

0100

Snapper 1919381

WASHER, 5/16
(Superseded to 1919381SM)

$4.49

$

In Stock, Qty 11

0

0110

Snapper 1960428

CAPSCREW, Hex Head, 3/8-24 x 1-1/4
(Superseded to 1960428SM)

$3.99

$

Usually ships in 2-12 days

0

0120

Snapper 1733324

V-BELT, 3L, 33.13, Drive
(Superseded to 1733324SM)

$19.99

$

In Stock, Qty 20+

0

0130

Snapper 1736421

V-BELT, 4L, 38.35, Auger
(Superseded to 1736421YP)

$30.99

$

In Stock, Qty 5

0

0140

Snapper 1739070

BELT GUIDE
(Superseded to 1739070YP)

$7.99

$

In Stock, Qty 6

0

0150

Snapper 1917356

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0160

Snapper 1921515

CAPSCREW, Hex Head, 5/16-24 x 3/4
(Superseded to 1921515SM)

$3.99

$

Usually ships in 2-12 days

0

0170

Snapper 722090

BRACKET, Idler
(Superseded to 1687797YP)

$8.49

$

In Stock, only 2 left!

0

0180

Snapper 722072

BUSHING, Idler Bracket
(Superseded to 1501065MA)

$5.49

$

In Stock, Qty 6

0

0190

Snapper 724418

SPRING, Extension, Idler
(Superseded to 53704MA)

$8.49

$

In Stock, only 4 left!

0

0200

Snapper 722378

IDLER
(Superseded to 1502120MA)

$21.99

$

In Stock, only 1 left!

0

0210

Snapper 1960251

NUT, Hex, Centerlock Jaam, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, only 2 left!

0

0220

Snapper 724823

BOLT, Carriage, 3/8-16 x 1-1/4
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

0230

Snapper 722132

IDLER, Auger
(Superseded to 1501226YZMA)

$52.99

$

Usually ships in 2-12 days

0

0240

Snapper 722118

SPACER
(Superseded to 1501200MA)

$5.99

$

Usually ships in 2-12 days

0

0250

Snapper 80003590

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0260

Snapper 1733451

ARM, Control
(Superseded to 1733451SM)

$20.99

$

In Stock, Qty 5

0

0270

Snapper 725367

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0280

Snapper 1736381

PIN, Clevis
(Superseded to 703313)

$4.99

$

In Stock, Qty 8

0

0290

Snapper 1740906BM

PANEL, Bottom
(Superseded to 1753969BMYP)

$75.99

$

Usually ships in 2-12 days

0

0300

Snapper 1927429

CAPSCREW, Hex Washer Head, Taptite,1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, only 2 left!

0

0310

Snapper 722455

SPRING, Extension, Auger
(Superseded to 165X159MA)

$6.99

$

In Stock, Qty 10

0

0320

Snapper 1733154D

FRAME, Motor Box, Easy Steer
(Superseded to 1733154DSM)

$122.99

$

Usually ships in 2-12 days

0

0330

Snapper 1733583D

PLATE, Engine Mount
(Superseded to 1733583DSM)

$51.99

$

Usually ships in 2-12 days

0

0340

Snapper 1924856

CAPSCREW, Hex Washer Head, Taptite,5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, Qty 14

0

0350

Snapper 1664847

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0360

Snapper 1741069

COVER, Belt, With Toolbox
(Superseded to 1741069MA)

Note: (Used on 15.5TP Domestic)

$

$

Not available

0360

Snapper 1733923

COVER, Belt
(Superseded to 1733923SM)

Note: (Used on all 13.5TP & 15.5TP Export)

$75.99

$

Usually ships in 2-12 days

0

0370

Snapper 722887

SCREW, Tapping, 1/4 x 3/4
(Superseded to 26X306MA)

$4.99

$

Usually ships in 2-12 days

0

0380

Snapper 1733898

SEAL, Foam
(Superseded to 1733898SM)

$6.49

$

Usually ships in 2-12 days

0

0390

Snapper 1733868A

PLATE, Seal
(Superseded to 1733868BMYP)

$13.99

$

In Stock, only 1 left!

0

0400

Snapper 1733897

SEAL, Foam
(Superseded to 1733897SM)

$8.99

$

Usually ships in 2-12 days

0

0410

Snapper 725996

BOLT, Hex, 5/16-24 x 1
(Superseded to 703301)

$3.99

$

In Stock, Qty 6

0

0420

Snapper 7023590

PIN, Cotter, 1/4
(Superseded to 7023590SM)

$3.99

$

In Stock, Qty 20+

0

0460

Snapper 1733924

CLIP, Tree
(Superseded to 1733924SM)

$3.99

$

Usually ships in 2-12 days

0

0470

Snapper 1916955

WASHER, 3/16
(Superseded to 1916955SM)

$3.49

$

Usually ships in 2-12 days

0

0480

Snapper 1922755

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 5

0

0490

Snapper 7091528

WASHER, Flat, 3/8
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0
