L 1732EX (1695856) - Snapper 32" Snow Thrower, 16.5hp Chute & Rotation Group Parts Diagram

32" Snow Thrower, 16.5hp

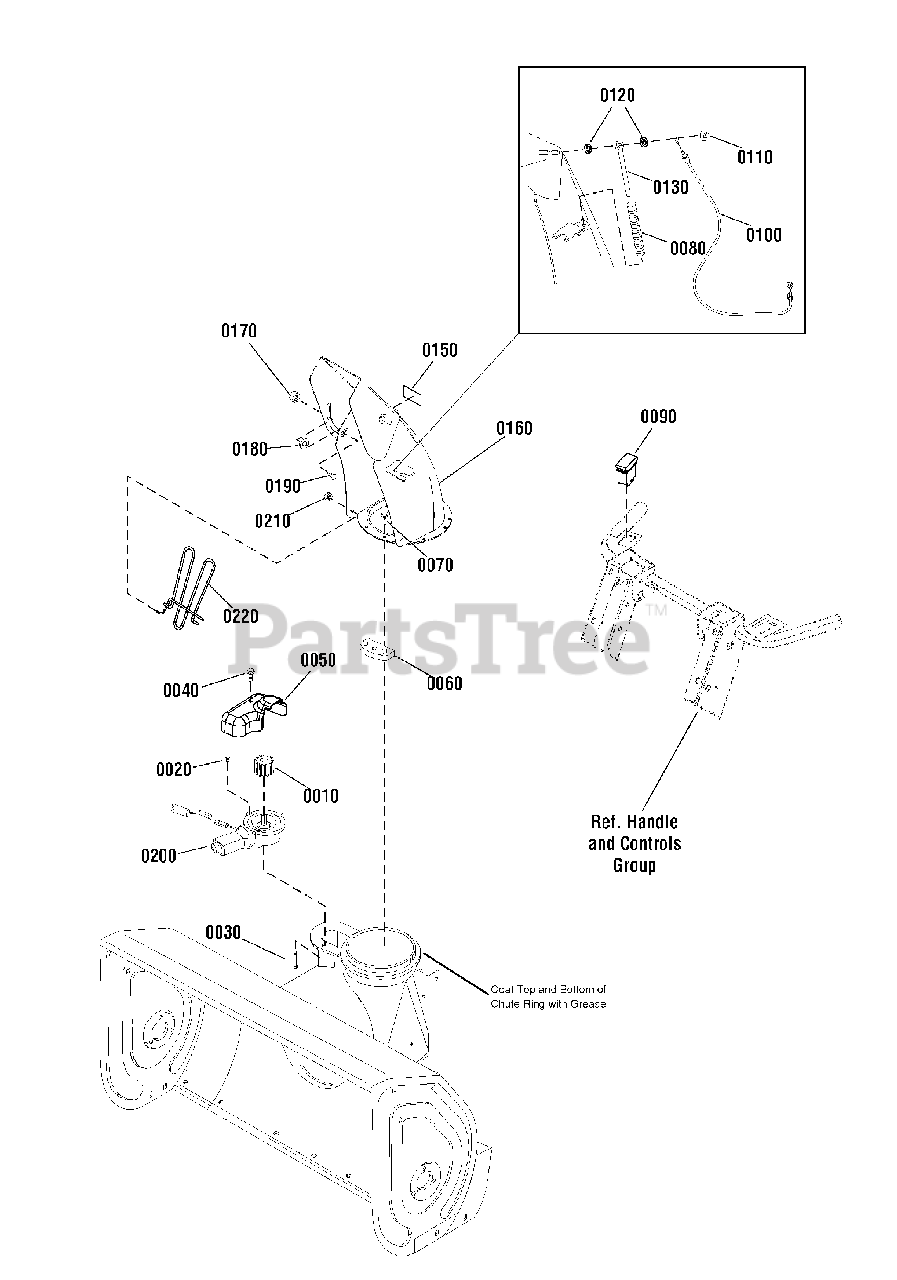

Chute & Rotation Group Parts Diagram

  • Title

0010

Snapper 1728967

PINION
(Superseded to 1728967SM)

$18.99

$

In Stock, Qty 5

0

0020

Snapper 1960745

NUT, Hex Flange, Whiz Lock, #10-24
(Superseded to 703917)

$3.99

$

In Stock, Qty 20+

0

0030

Snapper 2860604

CAPSCREW, Hex Washer, #10 x 1-1/4
(Superseded to 2860604SM)

$4.99

$

In Stock, Qty 20+

0

0040

Snapper 1927428

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

0050

Snapper 1733934A

COVER, Gear
(Superseded to 1733934ASM)

$

$

Not available

0060

Snapper 1666613

HOLD DOWN
(Superseded to 1666613SM)

$3.99

$

In Stock, Qty 20+

0

0070

Snapper 1960001

SCREW, Hex Washer Head, Plastite, 10-14 x 5/8
(Superseded to 703062)

$4.99

$

In Stock, Qty 20+

0

0080

Snapper 1734647

SPRING, Compression, 6"
(Superseded to 1734647SM)

$4.49

$

Usually ships in 2-12 days

0

0090

Snapper 1728969

SWITCH, Rocker, Chute Rotation
(Superseded to 1728969SM)

$57.99

$

In Stock, only 4 left!

0

0100

Snapper 1750623

CABLE, Deflector Control
(Superseded to 1750623YP)

Note: (was 1732971)

$49.99

$

In Stock, Qty 11

0

0110

Snapper 1932718

NUT, Push, For 5/16 Stud
(Superseded to 704028)

$5.49

$

In Stock, Qty 7

0

0120

Snapper 1666697

SPACER, 5/16 ID x 1/2 OD x 1/4"
(Superseded to 1666697SM)

$6.49

$

In Stock, only 2 left!

0

0130

Snapper 1734708A

ROD, Spring Guide
(Superseded to 1734708ASM)

$14.99

$

Usually ships in 2-12 days

0

0140

Snapper 2825094

TIE, Self Locking
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

0150

Snapper 1738340

DECAL, Hinge
(Superseded to 1738340YP)

$12.99

$

Usually ships in 2-12 days

0

0160

Snapper 1734400D

CHUTE

$

$

Not available

0170

Snapper 1960686

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0180

Snapper 2860210

WASHER, Nylon, 3/8
(Superseded to 2860210SM)

$4.99

$

In Stock, only 2 left!

0

0190

Snapper 1931333

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0200

Snapper 1728965

MOTOR, Spout Rotator
(Superseded to 1728965SM)

$181.99

$

In Stock, only 2 left!

0

0210

Snapper 1960126

NUT, Push Pal, For 1/4 Stud
(Superseded to 704066)

$5.49

$

In Stock, Qty 10

0

0220

Snapper 1735174

CHUTE GUARD ASSEMBLY
(Superseded to 1735174SM)

$58.99

$

Usually ships in 2-12 days

0
