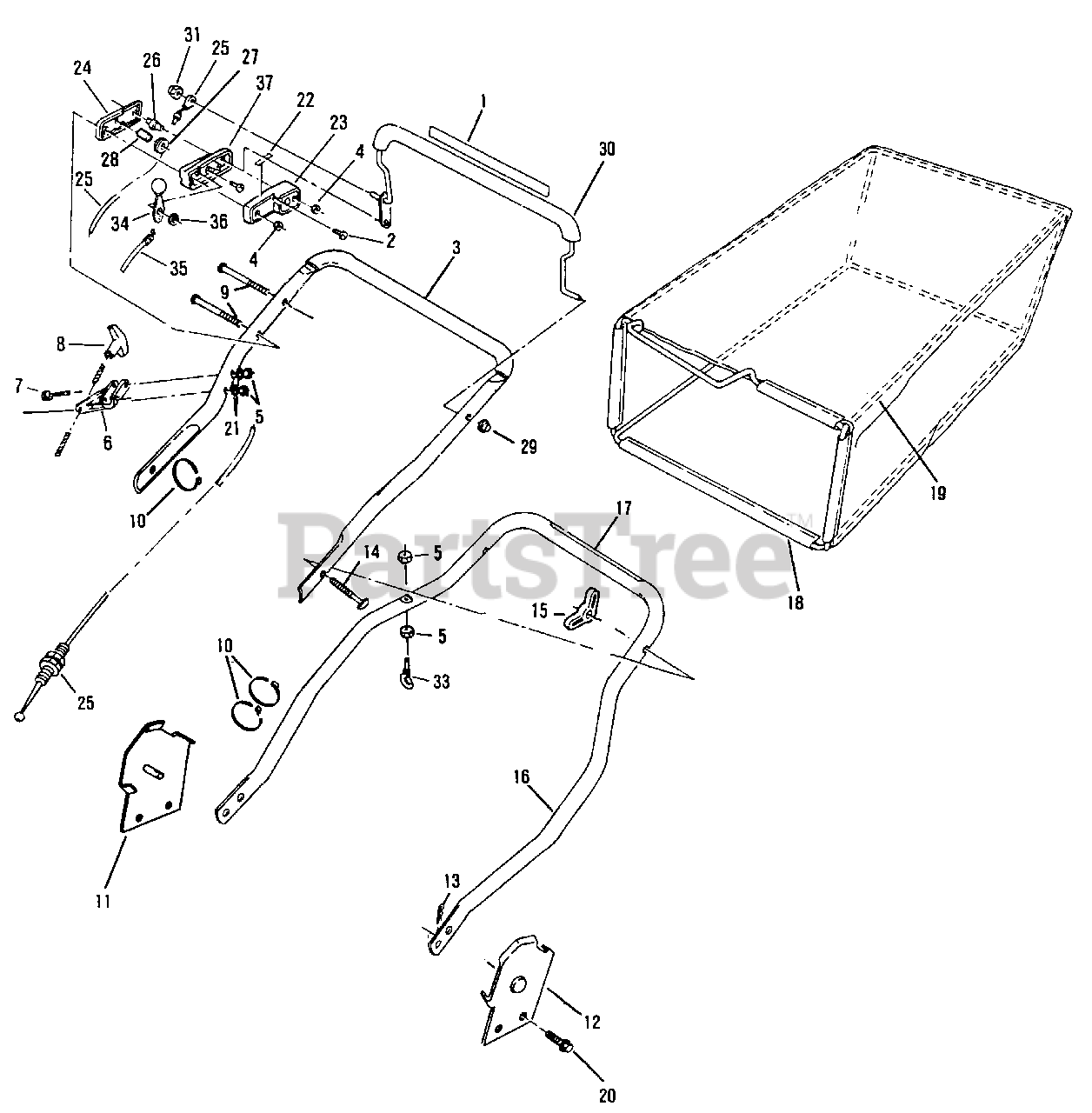

L 20 ZPR A - Lawn-Boy Walk-Behind Mower (SN: H00000001 - H99999999) (1989) HANDLE AND REAR GRASS CATCHER GROUP MODELS: L20ZPRA Parts Diagram

Walk-Behind Mower

HANDLE AND REAR GRASS CATCHER GROUP MODELS: L20ZPRA Parts Diagram

  • Title

1

Lawn-Boy 612651

Decal-Engine/Blade Control

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

2

Lawn-Boy 611543

Screw Truss Head

Note: Important Note: Replacement parts may not be available in matching colors.

$3.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 611554

Top Handle

Note: Important Note: Replacement parts may not be available in matching colors.

$154.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 611258

Locknut-Hex

Note: Important Note: Replacement parts may not be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

5

Lawn-Boy 602315

Locknut

Note: Important Note: Replacement parts may not be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

6

Lawn-Boy 153254

Rope Guide Assembly
(Superseded to 682684)

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

7

Lawn-Boy 611233

Screw-Truss Head

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

8

Lawn-Boy 612430

Handle-Starter

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

9

Lawn-Boy 611799

Screw

Note: Important Note: Replacement parts may not be available in matching colors.

$4.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 320107

Tie Strap
(Superseded to 614249)

Note: Important Note: Replacement parts may not be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 682878

Bracket-Handle-R.H.

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

12

Lawn-Boy 682879

Bracket-Handle-L.H.
(Superseded to 684543)

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

13

Lawn-Boy 605803

Hair Pin

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

14

Lawn-Boy 611184

Screw

Note: Important Note: Replacement parts may not be available in matching colors.

$6.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 607544

Knob

Note: Important Note: Replacement parts may not be available in matching colors.

$22.99

$

In Stock, only 4 left!

0

16

Lawn-Boy 612787

Handle-Bottom

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

17

Lawn-Boy 612579

Decal-Starting Instructions

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

18

Lawn-Boy 683498

Bag Assembly
(Superseded to 683799)

Note: Important Note: Replacement parts may not be available in matching colors.

$254.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 682894

Frame-Support Bag

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

20

Lawn-Boy 611487

Screw-Bracket Handle to Housing

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

21

Lawn-Boy 602945

Washer

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

22

Lawn-Boy 612568

Decal-Throttle

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

Lawn-Boy 683171

Control Case Assembly

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

23

Lawn-Boy 612571

Control Case-Inner

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

24

Lawn-Boy 611782

Control Case-Outer

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

25

Lawn-Boy 683041

Control Cable Assembly

Note: Important Note: Replacement parts may not be available in matching colors.

$114.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 611541

Column

Note: Important Note: Replacement parts may not be available in matching colors.

$12.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 612564

Pulley

Note: Important Note: Replacement parts may not be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

28

Lawn-Boy 611542

Pin

Note: Important Note: Replacement parts may not be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

29

Lawn-Boy 605546

Pushnut
(Superseded to 32112-11)

Note: Important Note: Replacement parts may not be available in matching colors.

$1.49

$

In Stock, Qty 15

0

30

Lawn-Boy 683727

Control Lever and Nut Assembly

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

31

Lawn-Boy 612168

Nut-Acorn

Note: Important Note: Replacement parts may not be available in matching colors.

$17.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 611571

Eyebolt

Note: Important Note: Replacement parts may not be available in matching colors.

$14.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 683663

Lever and Knob

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available

35

Lawn-Boy 612588

Cable-Throttle

Note: Important Note: Replacement parts may not be available in matching colors.

$50.99

$

In Stock, only 1 left!

0

36

Lawn-Boy 612586

Washer-Spring

Note: Important Note: Replacement parts may not be available in matching colors.

$2.99

$

In Stock, Qty 5

0

37

Lawn-Boy 612569

Case-Throttle-Center
(Superseded to 612633)

Note: Important Note: Replacement parts may not be available in matching colors.

$

$

Not available
