L 221 A (961480063-00) - Husqvarna 21" Walk-Behind Mower ENGINE Parts Diagram

21" Walk-Behind Mower

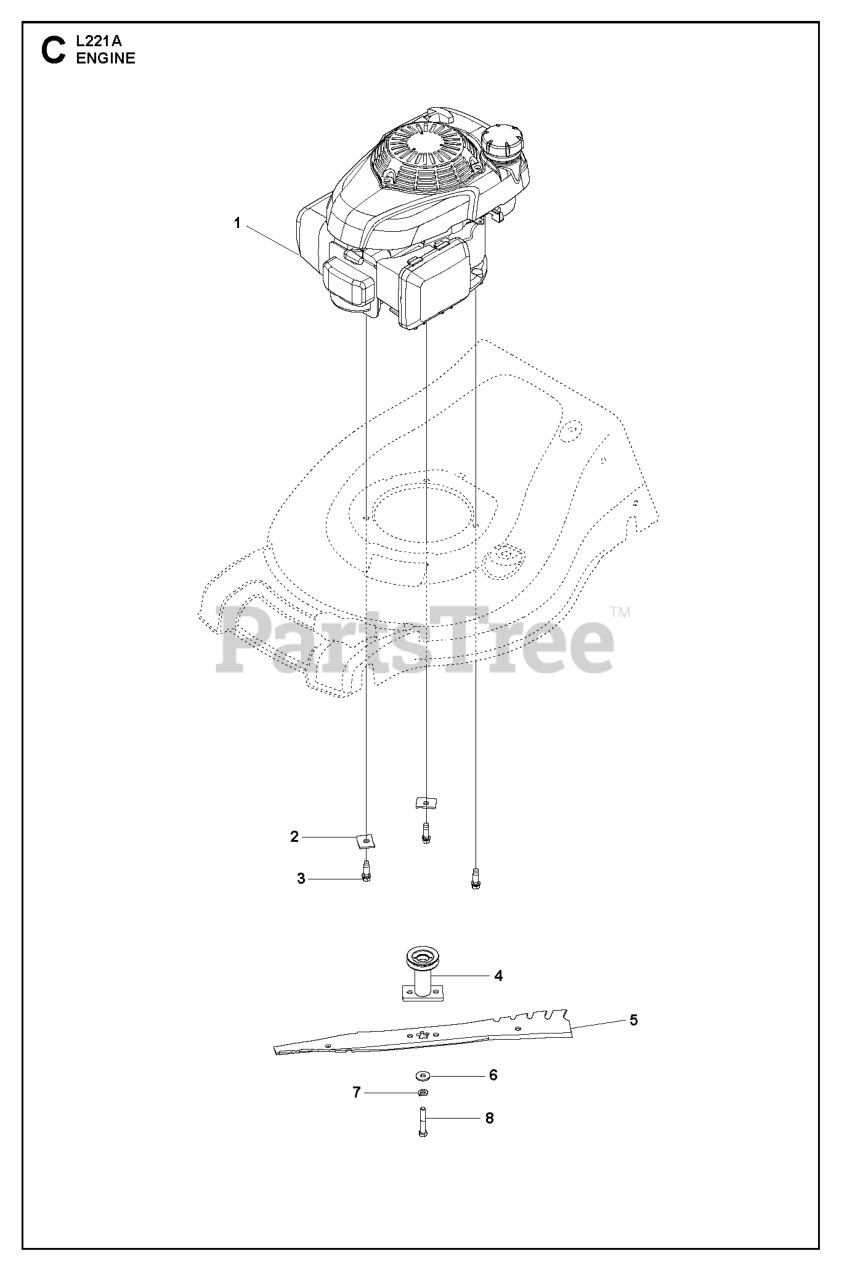

ENGINE Parts Diagram

  • Title

8

Husqvarna 582388401

BOLT.ENGINE.PULLEY

Note: Hex Head Machine Screw

$4.99

$

In Stock, Qty 14

0

7

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

Note: 3/8, Helical Spring

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 590044201

ADAPTER.BLD.25M.2P.AW/RW/21EFF

Note: 25mm

$10.99

$

In Stock, Qty 18

0

2

Husqvarna 532125078

WASHER.ENGINE.BZP

Note: Engine

$

$

Not available

6

Husqvarna 532851074

WASHER,HARDEN

Note: Hardened

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 586859602

BLADE.21.REAPER.WO/NOTCHES
(Superseded to 586859604)

Note: High Lift

$15.99

$

In Stock, Qty 20+

0

3

Husqvarna 532150406

BOLT 3/8-16X1-1/8

Note: 3/8-16

$7.49

$

In Stock, Qty 10

0

1

000000000

Note: HONDA GCV160-LAOS3B FOR SERVICE & PARTS 1-800-426-7701

$

$

Not available
