L 221 A (961480063-00) - Husqvarna 21" Walk-Behind Mower HANDLE Parts Diagram

21" Walk-Behind Mower

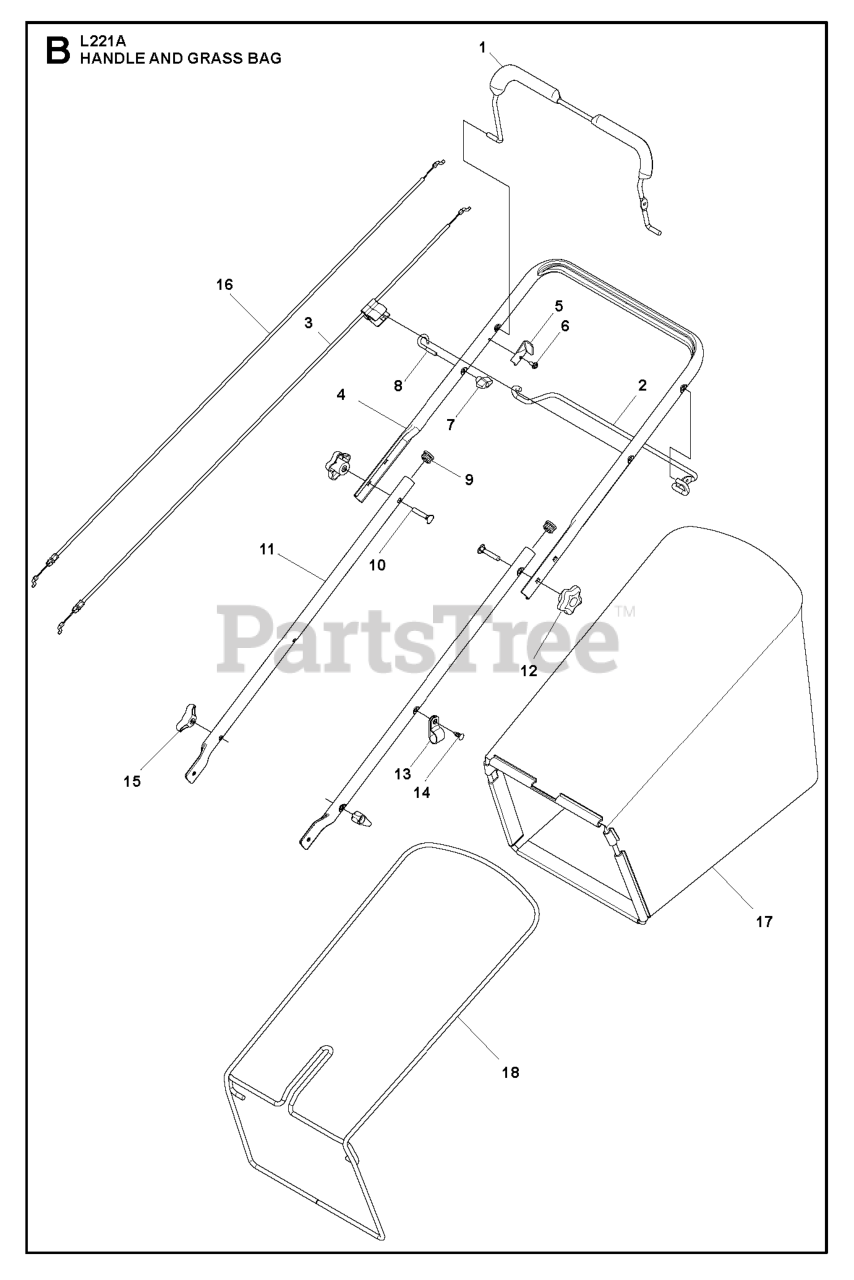

HANDLE Parts Diagram

  • Title

14

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

Note: Push, 0.250 X 0.783

$6.49

$

In Stock, only 2 left!

0

13

Husqvarna 532197991

CLIP.CABLE.BLK

Note: P/Cable

$7.49

$

In Stock, Qty 9

0

2

Husqvarna 532198453

BAIL.CONT.DR.S/S.ROUND.BLACK

Note: Drive, Straight

$37.99

$

In Stock, only 1 left!

0

15

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

Note: Handle, Standard

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 588040401

BOLT.CONCAVE.HEAD.RETAINING

Note: Concave Head, Retaining

$4.99

$

In Stock, Qty 14

0

7

Husqvarna 581912601

T-KNOB.NEW ROPE GUIDE

Note: T, Rope Guide

$4.99

$

In Stock, Qty 9

0

18

Husqvarna 586929102

FRAME.GBAG.AWD.21.BLACK

Note: FRAME

$18.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

Note: Handle, Star

$7.49

$

In Stock, Qty 20+

0

17

Husqvarna 587100409

GBAG.C361029EM.HUSQ.GRY.21EFF
(Superseded to 587100402)

Note: Husqvarna 21" AWD

$34.99

$

In Stock, Qty 20+

0

8

Husqvarna 581902101

GUIDE.ROPE.BLK.ZINC.CHROM

Note: Rope

$

$

Not available

5

Husqvarna 532430034

BRACKET.UPSTOP.RT

Note: Upstop

$6.49

$

In Stock, Qty 6

0

1

Husqvarna 587478302

BAIL.ARM.ASSY:STRAIGHT OM

Note: Straight

$26.99

$

In Stock, only 3 left!

0

16

Husqvarna 582598601

CABLE.DRIVE.UB.NA.21EFF.AW

Note: Drive, Under-bail

$7.49

$

In Stock, only 1 left!

0

9

Husqvarna 532437516

PLUG.PLASTIC.7/8".14-20.GAUGE

Note: Plastic, 7/8, 14-20 Gauge

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 501064002

HANDLE.LOW.2PC.2POS.21EFF.498

Note: Lower 2 piece, 3 Position

$

$

Not available

3

Husqvarna 583547901

CABLE.MZR.RGD.PLUS.STRT

Note: Operator Presence Bail

$15.99

$

In Stock, Qty 20+

0

6

Husqvarna 532178848

SCREW

Note: 10-16 X 5/8

$7.49

$

In Stock, Qty 20+

0

4

Husqvarna 589197902

HANDLE.UPP.DST.EXTCR.SM.SP.498

Note: Straight

$

$

Not available
