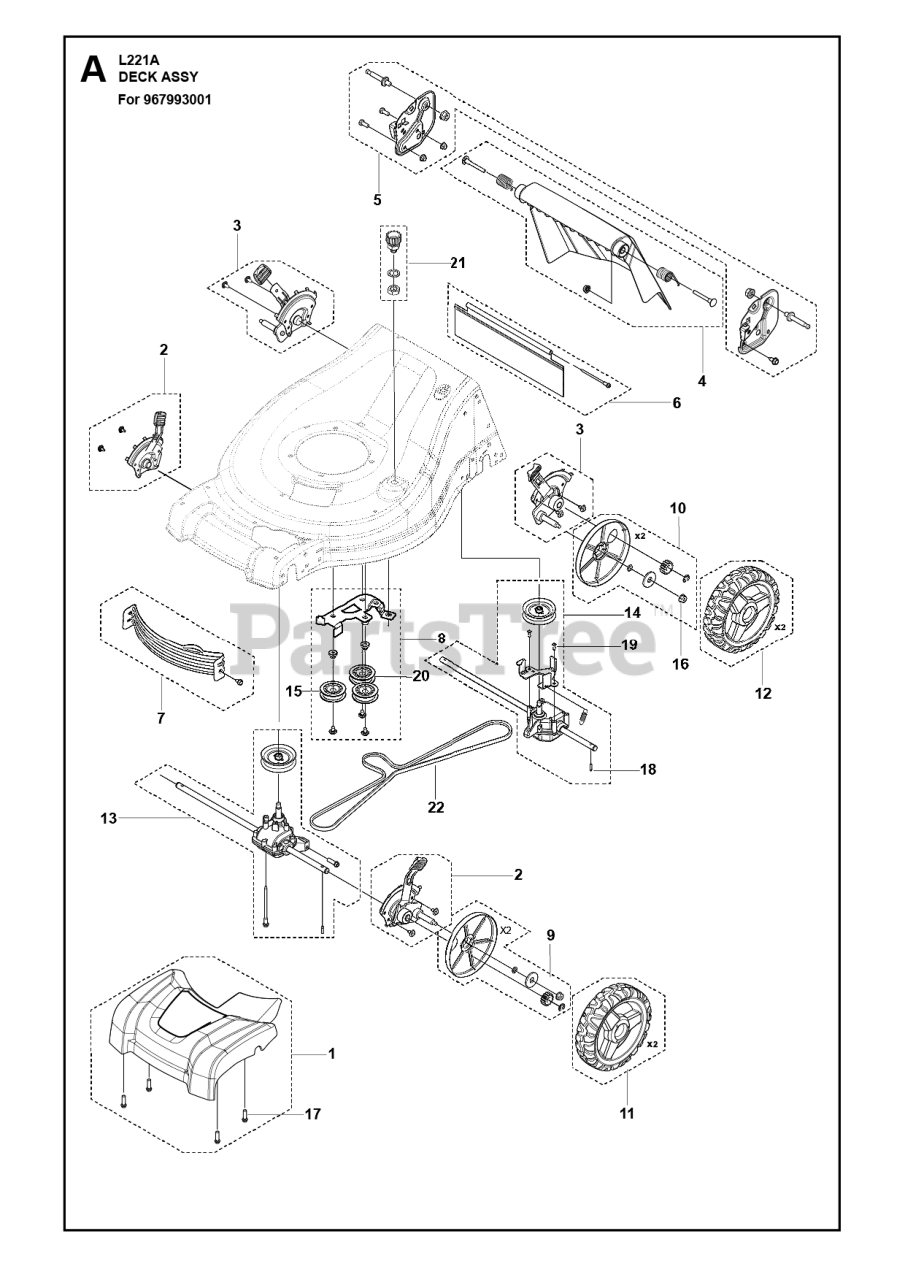

L 221 A - Husqvarna 21" Walk-Behind Mower (Original) MOWER DECK / CUTTING DECK Parts Diagram

21" Walk-Behind Mower

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
17

Husqvarna 584299401

SCREW.HI-LO. 5/16 X 1.00

Note: SCREW

$4.99

$

In Stock, only 4 left!

0

2

Husqvarna 598453901

Wheels

Note: 8 IN WHEEL ADJUSTER KIT

$170.99

$

In Stock, only 1 left!

0

20

Husqvarna 587969201

PULLEY.RWD.IDLER.DBL SEAL

Note: PULLEY

$14.99

$

In Stock, Qty 20+

0

7

Husqvarna 598454301

Baffles

Note: FRONT BAFFLE KIT

$20.99

$

Usually ships in 3-10 days

0

5

Husqvarna 598453601

Handles

Note: HANDLE BRACKET KIT

$39.99

$

In Stock, only 1 left!

0

8

Husqvarna 598454401

Pulleys

Note: PULLEY KIT

$43.99

$

In Stock, only 1 left!

0

22

Husqvarna 580364609

BELT.DRIVE.21EFF.AWD

Note: BELT

$17.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

Note: NUT

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 587973001

PULLEY.ASM.22+ AWD

Note: PULLEY

$22.99

$

In Stock, Qty 17

0

3

Husqvarna 598453901

Wheels

Note: 8 IN WHEEL ADJUSTER KIT

$170.99

$

In Stock, only 1 left!

0

11

Husqvarna 598454701

Wheels
(Superseded to 580365301)

Note: 8 IN WHEEL KIT

$47.99

$

In Stock, Qty 15

0

12

Husqvarna 598454701

Wheels
(Superseded to 580365301)

Note: 8 IN WHEEL KIT

$47.99

$

In Stock, Qty 15

0

14

Husqvarna 598455001

NEEDS DESCRIPTION

Note: REAR TRANSMISSION KIT

$

$

Currently unavailable

13

Husqvarna 598454901

NEEDS DESCRIPTION

Note: FRONT TRANSMISSION KIT

$

$

Currently unavailable

1

Husqvarna 598453801

Covers

Note: FRONT COVER KIT

$26.99

$

Usually ships in 3-10 days

0

4

Husqvarna 598453701

Doors

Note: REAR DOOR KIT

$37.99

$

Usually ships in 3-10 days

0

21

Husqvarna 532421114

KIT.WASH-OUT.PORT

Note: WASHOUT

$24.99

$

In Stock, only 2 left!

0

6

Husqvarna 598454201

Inserts

Note: REAR INSERT KIT

$56.99

$

In Stock, only 3 left!

0

19

Husqvarna 532163409

SCREW

Note: SCREW

$7.49

$

In Stock, Qty 6

0

9

Husqvarna 598454501

Wheels

Note: 8 IN WHEEL DRIVE KIT

$13.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532404845

PAWL, DRIVE

Note: PAWL

$5.99

$

In Stock, Qty 6

0

10

Husqvarna 598454501

Wheels

Note: 8 IN WHEEL DRIVE KIT

$13.99

$

Usually ships in 3-10 days

0
