L 221 AHK (961450031-00) - Husqvarna 21" Walk-Behind Mower (2016-09) HANDLE Parts Diagram

21" Walk-Behind Mower

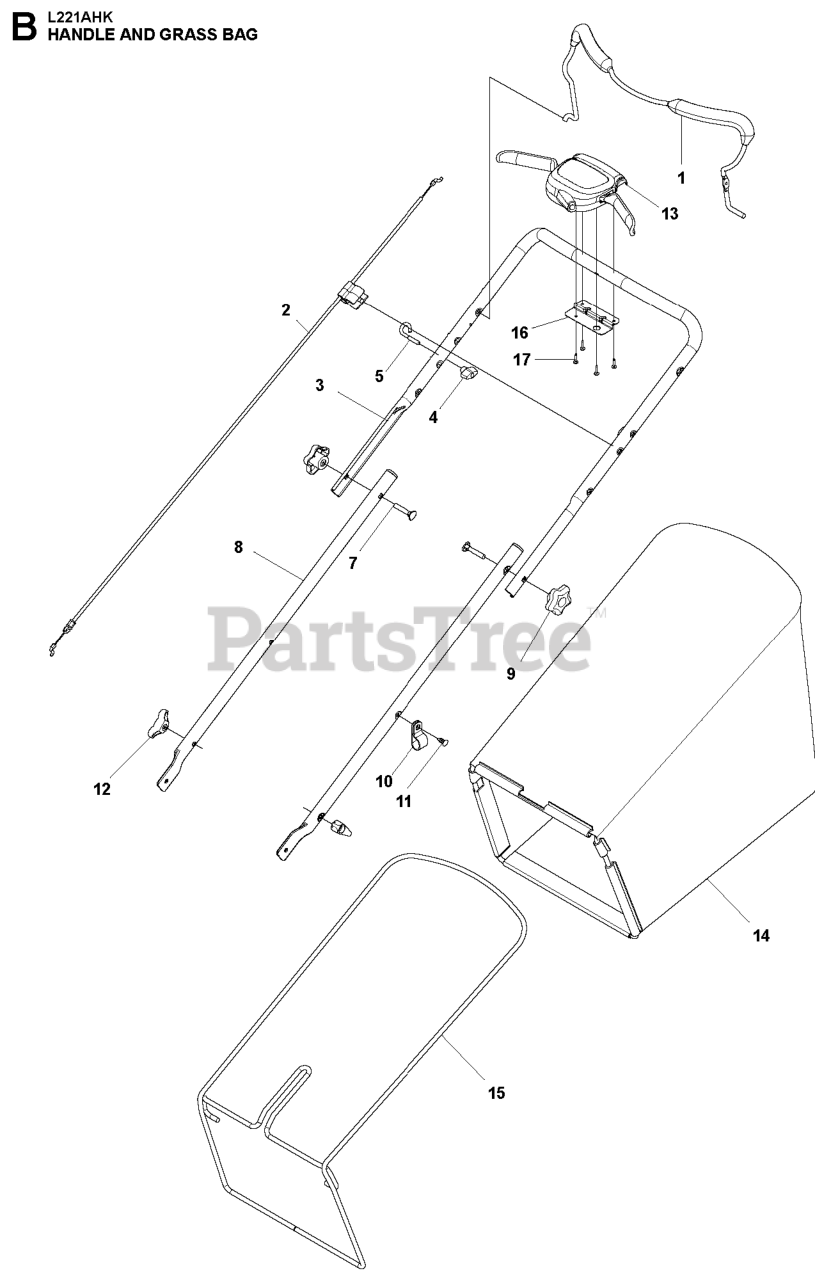

HANDLE Parts Diagram

  • Title

2

Husqvarna 532424983

CABLE.MZR.ZONE.CONTROL

Note: Operator Presence Bail

$20.99

$

In Stock, Qty 20+

0

17

Husqvarna 532181698

SCREW, PHILLIPS HEAD 10 X 5/8

$7.49

$

In Stock, Qty 6

0

10

Husqvarna 532197991

CLIP.CABLE.BLK

Note: P/Cable

$7.49

$

In Stock, Qty 10

0

9

Husqvarna 532182398

KNOB.HANDLE.PLASTIC.STAR.BLACK

Note: "Handle, Star"

$7.49

$

In Stock, Qty 20+

0

1

Husqvarna 587689302

BAIL.OM.ERGO.BENT.MZR.ORAN.668
(Superseded to 587689301)

Note: "Straight, Overmolded, Operator Presence"

$51.99

$

Usually ships in 3-10 days

0

13

Husqvarna 589813207

CONTROL.AW2.GEN.CURVED.AW/RGD.

Note: Includes Cable

$85.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532191938

KNOB, DEFLECTOR
(Superseded to 532189713)

Note: "Handle, STANDARD"

$9.49

$

In Stock, Qty 20+

0

3

Husqvarna 580638706

HANDLE.UPPER.3.POS.BS.AW2.GREY

Note: "Upper, Curved"

$

$

Not available

4

Husqvarna 581912601

T-KNOB.NEW ROPE GUIDE

Note: "T, Rope Guide"

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 587249302

BRACKET DUAL TRIGGER CONTROL

Note: Dual Trigger Control

$

$

Not available

5

Husqvarna 581902101

GUIDE.ROPE.BLK.ZINC.CHROM

Note: Rope

$

$

Not available

7

Husqvarna 588040401

BOLT.CONCAVE.HEAD.RETAINING

Note: "Concave Head, Retaining"

$4.99

$

In Stock, Qty 18

0

14

Husqvarna 587100409

GBAG.C361029EM.HUSQ.GRY.21EFF
(Superseded to 587100402)

Note: "Husqvarna 21"" AWD"

$45.99

$

In Stock, Qty 20+

0

8

Husqvarna 593270401

HANDLEBAR ASSY TWO PIECE LOWER

Note: INCLUDES PLUG

$

$

Not available

11

Husqvarna 532428124

FASTENER.PUSH.O.250X0.783

Note: "Push, 0.250 X 0.783"

$6.49

$

In Stock, only 4 left!

0

15

Husqvarna 586929102

FRAME.GBAG.AWD.21.BLACK

$22.99

$

Usually ships in 3-10 days

0
