L 2400 AR - Electrolux/AYP Lawn Tractor

Lawn Tractor

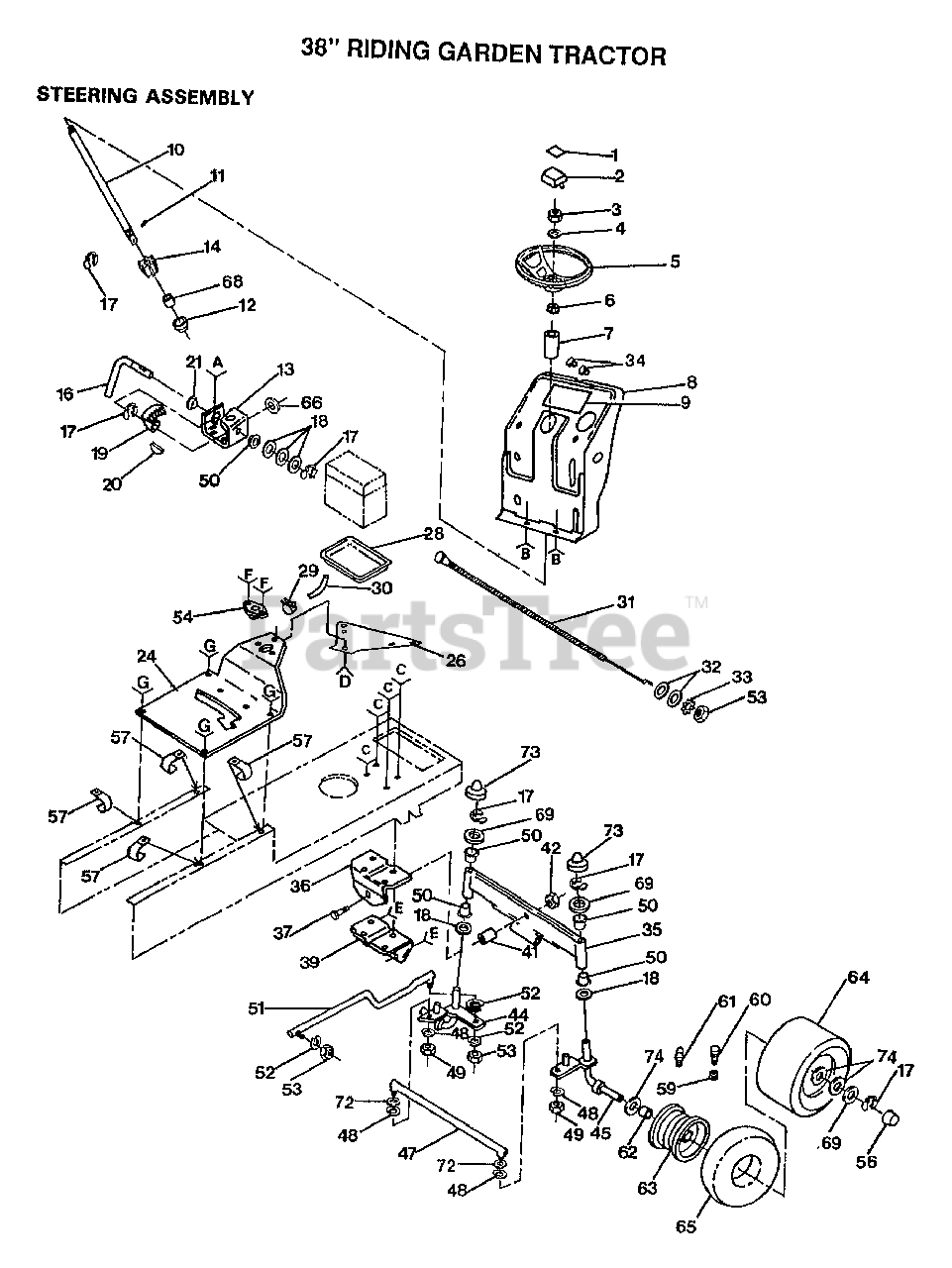

L 2400 AR - Electrolux/AYP Lawn Tractor > Parts Diagrams (13) > STEERING ASSY, FRONT WHEELS

  • Title
109325X

1

SUB= 127075

Part# 109325X

OEM Warranty Repair Part for Electrolux/AYP

Not available

100710L

2

INSERT-WHEEL LT

Part# 100710L (Superseded to 532100710)

OEM Warranty Repair Part for Electrolux/AYP

Not available

73940800

3

SUB= 73360800

Part# 73940800 (Superseded to 873940800)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

100712K

4

WASHER

Part# 100712K (Superseded to 532100712)

OEM Warranty Repair Part for Electrolux/AYP

Not available

100713N

5

SUB= 150547

Part# 100713N

OEM Warranty Repair Part for Electrolux/AYP

Not available

100711L

6

ADAPTER LT

Part# 100711L (Superseded to 532100711)

OEM Warranty Repair Part for Electrolux/AYP

Not available

100714L

7

SLEEVE LTV

Part# 100714L

OEM Warranty Repair Part for Electrolux/AYP

Not available

122341X

8

DASH

Part# 122341X

OEM Warranty Repair Part for Electrolux/AYP

Not available

123175X

9

DECAL DASH

Part# 123175X

OEM Warranty Repair Part for Electrolux/AYP

Not available

108705X

10

SHAFT STR HYT

Part# 108705X

OEM Warranty Repair Part for Electrolux/AYP

Not available

2882J

11

DRIVE PIN

Part# 2882J

OEM Warranty Repair Part for Electrolux/AYP

Not available

71208

12

BUSHING

Part# 71208 (Superseded to 532071208)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

109432X

13

SUB= 110150X

Part# 109432X

OEM Warranty Repair Part for Electrolux/AYP

Not available

108685X

14

GEAR PINION T

Part# 108685X

OEM Warranty Repair Part for Electrolux/AYP

Not available

108683X

16

ROD STEERING T

Part# 108683X

OEM Warranty Repair Part for Electrolux/AYP

Not available

12000029

17

RING

Part# 12000029 (Superseded to 812000029)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.75

6266H

18

WASHER .T

Part# 6266H

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $6.70

108684X

19

GEAR.SECTOR.HYT

Part# 108684X

OEM Warranty Repair Part for Electrolux/AYP

Not available

106126X

20

KEY-WOODRUFF LT

Part# 106126X

OEM Warranty Repair Part for Electrolux/AYP

Not available

109816X

21

NYLINER T

Part# 109816X (Superseded to 532109816)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

108263X020

24

SADDLE

Part# 108263X020

OEM Warranty Repair Part for Electrolux/AYP

Not available

106965X

26

SUB= 140181

Part# 106965X

OEM Warranty Repair Part for Electrolux/AYP

Not available

7603J

28

"TRAY T, BATTERY"

Part# 7603J

OEM Warranty Repair Part for Electrolux/AYP

Not available

109596X

29

HOSE CLAMP T

Part# 109596X (Superseded to 532109596)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $3.34

100541K

30

SUB= 7697J

Part# 100541K

OEM Warranty Repair Part for Electrolux/AYP

Not available

121525X

31

SUB= 132779

Part# 121525X

OEM Warranty Repair Part for Electrolux/AYP

Not available

19131316

32

WASHER

Part# 19131316 (Superseded to 819131316)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

11050600

33

LOCKWASHER

Part# 11050600

OEM Warranty Repair Part for Electrolux/AYP

Not available

8022J

34

PLUG-DASH T

Part# 8022J (Superseded to 532125085)

OEM Warranty Repair Part for Electrolux/AYP

Not available

108075X

35

FRONT AXLE

Part# 108075X (Superseded to 532108075)

OEM Warranty Repair Part for Electrolux/AYP

Not available

105663X

36

SUPPORT-SADDL T

Part# 105663X (Superseded to 532105663)

OEM Warranty Repair Part for Electrolux/AYP

Not available

74761060

37

BOLT LT

Part# 74761060 (Superseded to 874761060)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $4.46

105664X

39

SUPPORT.SADDLE.FT

Part# 105664X (Superseded to 532105664)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 7 business days

Your price: $11.17

110438X

41

BEARING

Part# 110438X (Superseded to 532110438)

OEM Warranty Repair Part for Electrolux/AYP

Not available

73901000

42

"NUT-LOC,FLANGE LT"

Part# 73901000 (Superseded to 873601000)

OEM Warranty Repair Part for Electrolux/AYP

Not available

105656X

44

SPINDLE-LH LT

Part# 105656X (Superseded to 532105656)

OEM Warranty Repair Part for Electrolux/AYP

Not available

105654X

45

SUB= 130524

Part# 105654X

OEM Warranty Repair Part for Electrolux/AYP

Not available

121321X

47

SUB= 121334X

Part# 121321X

OEM Warranty Repair Part for Electrolux/AYP

Not available

10040500

48

LOCKWASHER

Part# 10040500 (Superseded to 810040500)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

73610500

49

NUT

Part# 73610500

OEM Warranty Repair Part for Electrolux/AYP

Not available

3366R

50

COL. SRTG. BEAR.

Part# 3366R

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.76

105727X

51

LINK-DRAG LT

Part# 105727X

OEM Warranty Repair Part for Electrolux/AYP

Not available

10040600

52

LOCKWASHER

Part# 10040600 (Superseded to 810040600)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $1.67

73610600

53

SUB= 7810H

Part# 73610600 (Superseded to 873610600)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 4 to 10 business days

Your price: $2.75

1554J

54

SUB= 155108

Part# 1554J

OEM Warranty Repair Part for Electrolux/AYP

Not available

104757X

56

HUB CAP

Part# 104757X

OEM Warranty Repair Part for Electrolux/AYP

Not available

2751R

57

CLIP T

Part# 2751R (Superseded to 532002751)

OEM Warranty Repair Part for Electrolux/AYP

Not available

59192

59

VALVE CAP

Part# 59192 (Superseded to 532059192)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

65139

60

VALVE STEM LT

Part# 65139 (Superseded to 532065139)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $6.70

278H

61

FITTING LT

Part# 278H (Superseded to 532000278)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $3.34

9040H

62

"FLANGE, BEARING"

Part# 9040H (Superseded to 532009040)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $4.46

106732X

63

SUB= 106732X417

Part# 106732X

OEM Warranty Repair Part for Electrolux/AYP

Not available

106222X

64

SUB= 122073X

Part# 106222X

OEM Warranty Repair Part for Electrolux/AYP

Not available

59904

65

TUBE.5.3/4.5/6

Part# 59904 (Superseded to 532059904)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $25.37

101930X

66

WASHER YTV

Part# 101930X

OEM Warranty Repair Part for Electrolux/AYP

Not available

74580

68

SHAFT SPACER LT

Part# 74580

OEM Warranty Repair Part for Electrolux/AYP

Not available

121748X

69

WASHER

Part# 121748X (Superseded to 532121748)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.75

19111216

72

WASHER M

Part# 19111216 (Superseded to 819111216)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $5.81

121232X

73

CAP

Part# 121232X (Superseded to 532121232)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.75

121749X

74

WASHER

Part# 121749X (Superseded to 532121749)

OEM Warranty Repair Part for Electrolux/AYP

Usually leaves our warehouse in 1 business day

Your price: $2.75
