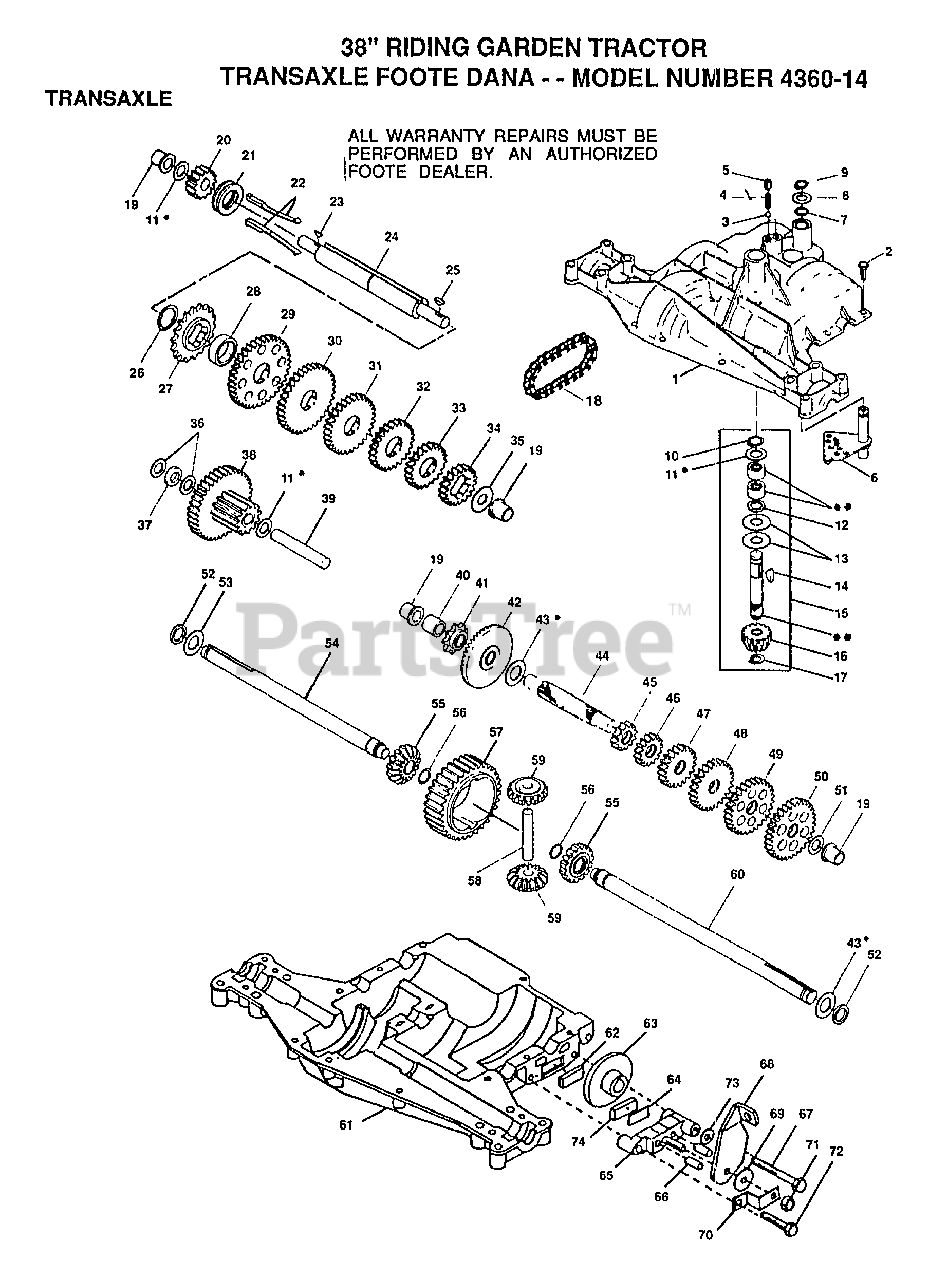

L 2400 AR - Electrolux/AYP Lawn Tractor > Parts Diagrams (13) > TRANSAXLE P/N BREAKOUT

  • Title
3865

1

HOUSING UPPER

Part# 3865

OEM Warranty Repair Part for Electrolux/AYP

Not available

1919

2

SCREW

Part# 1919

OEM Warranty Repair Part for Electrolux/AYP

Not available

1151

3

BALL DETENT

Part# 1151

OEM Warranty Repair Part for Electrolux/AYP

Not available

3626

4

SPRING, DETENT

Part# 3626

OEM Warranty Repair Part for Electrolux/AYP

Not available

3623

5

SCREW, SET

Part# 3623

OEM Warranty Repair Part for Electrolux/AYP

Not available

4336

6

ASSY SHIFTER

Part# 4336

OEM Warranty Repair Part for Electrolux/AYP

Not available

3884

7

O-RING

Part# 3884

OEM Warranty Repair Part for Electrolux/AYP

Not available

3885

8

WASHER PLAIN

Part# 3885

OEM Warranty Repair Part for Electrolux/AYP

Not available

3886

8A

WASHER PLAIN

Part# 3886

OEM Warranty Repair Part for Electrolux/AYP

Not available

3887

8B

WASHER PLAIN

Part# 3887

OEM Warranty Repair Part for Electrolux/AYP

Not available

3888

8C

WASHER PLAIN

Part# 3888

OEM Warranty Repair Part for Electrolux/AYP

Not available

3889

8D

WASHER PLAIN

Part# 3889

OEM Warranty Repair Part for Electrolux/AYP

Not available

3121

8E

WASHER PLAIN

Part# 3121

OEM Warranty Repair Part for Electrolux/AYP

Not available

3890

8F

WASHER PLAIN

Part# 3890

OEM Warranty Repair Part for Electrolux/AYP

Not available

1100

9

RING RETAINING

Part# 1100

OEM Warranty Repair Part for Electrolux/AYP

Not available

1099

10

RING RETAINING

Part# 1099

OEM Warranty Repair Part for Electrolux/AYP

Not available

1959

11

WASHER PLAIN

Part# 1959

OEM Warranty Repair Part for Electrolux/AYP

Not available

1441

11A

WASHER PLAIN

Part# 1441

OEM Warranty Repair Part for Electrolux/AYP

Not available

1423

11B

WASHER, PLAIN .632 X 1.00 X .026

Part# 1423

OEM Warranty Repair Part for Electrolux/AYP

Not available

1082

11C

WASHER PLAIN

Part# 1082

OEM Warranty Repair Part for Electrolux/AYP

Not available

1424

11D

WASHER PLAIN

Part# 1424

OEM Warranty Repair Part for Electrolux/AYP

Not available

1068

11E

WASHER PLAIN

Part# 1068

OEM Warranty Repair Part for Electrolux/AYP

Not available

1425

11F

WASHER PLAIN

Part# 1425

OEM Warranty Repair Part for Electrolux/AYP

Not available

1358

11G

WASHER PLAIN

Part# 1358

OEM Warranty Repair Part for Electrolux/AYP

Not available

1145

11H

WASHER, PLAIN .632 X 1.00 X .060

Part# 1145

OEM Warranty Repair Part for Electrolux/AYP

Not available

1319

11I

WASHER PLAIN

Part# 1319

OEM Warranty Repair Part for Electrolux/AYP

Not available

3312

12

O-RING

Part# 3312

OEM Warranty Repair Part for Electrolux/AYP

Not available

3876

13

WASHER, PLAIN .632 X 1.38 X .046

Part# 3876

OEM Warranty Repair Part for Electrolux/AYP

Not available

1374

14

KEY WOODRUFF #9

Part# 1374

OEM Warranty Repair Part for Electrolux/AYP

Not available

4134

15

ASSY KIT INPUT SHAFT

Part# 4134

OEM Warranty Repair Part for Electrolux/AYP

Not available

3590

16

PINION, BEVEL, 14 TEETH

Part# 3590

OEM Warranty Repair Part for Electrolux/AYP

Not available

3624

17

RING, RETAINING

Part# 3624

OEM Warranty Repair Part for Electrolux/AYP

Not available

3625

18

CHAIN, 24 PITCHES

Part# 3625

OEM Warranty Repair Part for Electrolux/AYP

Not available

1542

19

BEARING, FLANGE

Part# 1542

OEM Warranty Repair Part for Electrolux/AYP

Not available

3773

20

GEAR SPUR, 14 TEETH

Part# 3773

OEM Warranty Repair Part for Electrolux/AYP

Not available

3631

21

COLLAR CLUTCH

Part# 3631

OEM Warranty Repair Part for Electrolux/AYP

Not available

3828

22

KEY CLUTCH

Part# 3828

OEM Warranty Repair Part for Electrolux/AYP

Not available

1369

23

KEY WOODRUFF #3

Part# 1369

OEM Warranty Repair Part for Electrolux/AYP

Not available

3883

24

SHAFT INTERMEDIATE

Part# 3883

OEM Warranty Repair Part for Electrolux/AYP

Not available

1375

25

KEY, WOODRUFF, #61

Part# 1375

OEM Warranty Repair Part for Electrolux/AYP

Not available

3627

26

RING, RETAINING

Part# 3627

OEM Warranty Repair Part for Electrolux/AYP

Not available

3830

27

SPROCKET, 18 TEETH

Part# 3830

OEM Warranty Repair Part for Electrolux/AYP

Not available

3841

28

SPACER

Part# 3841

OEM Warranty Repair Part for Electrolux/AYP

Not available

3786

29

GEAR, SPUR, 37 TEETH

Part# 3786

OEM Warranty Repair Part for Electrolux/AYP

Not available

3785

30

GEAR, SPUR, 35 TEETH

Part# 3785

OEM Warranty Repair Part for Electrolux/AYP

Not available

3867

31

GEAR, SPUR, 30 TEETH

Part# 3867

OEM Warranty Repair Part for Electrolux/AYP

Not available

3783

32

GEAR, SPUR, 25 TEETH

Part# 3783

OEM Warranty Repair Part for Electrolux/AYP

Not available

3869

33

GEAR, SPUR, 22 TEETH

Part# 3869

OEM Warranty Repair Part for Electrolux/AYP

Not available

3741

34

GEAR SPUR

Part# 3741

OEM Warranty Repair Part for Electrolux/AYP

Not available

3628

35

WASHER, PLAIN .640 X 1.37 X .061

Part# 3628

OEM Warranty Repair Part for Electrolux/AYP

Not available

1423

36

WASHER, PLAIN .632 X 1.00 X .026

Part# 1423

OEM Warranty Repair Part for Electrolux/AYP

Not available

3422

37

SPACER .630 X 1.00 X .169

Part# 3422

OEM Warranty Repair Part for Electrolux/AYP

Not available

4286

38

ASSY GEAR COMB 12&35 TEETH

Part# 4286

OEM Warranty Repair Part for Electrolux/AYP

Not available

3877

39

SHAFT IDLER

Part# 3877

OEM Warranty Repair Part for Electrolux/AYP

Not available

3901

40

SPACER .635 X .875 X .755

Part# 3901

OEM Warranty Repair Part for Electrolux/AYP

Not available

3645

41

SPROCKET, 9 TEETH

Part# 3645

OEM Warranty Repair Part for Electrolux/AYP

Not available

3853

42

GEAR, BEVEL, 42 TEETH

Part# 3853

OEM Warranty Repair Part for Electrolux/AYP

Not available

3749

43

WASHER PLAIN

Part# 3749

OEM Warranty Repair Part for Electrolux/AYP

Not available

3652

43A

WASHER PLAIN

Part# 3652

OEM Warranty Repair Part for Electrolux/AYP

Not available

3693

43B

WASHER PLAIN

Part# 3693

OEM Warranty Repair Part for Electrolux/AYP

Not available

3653

43C

WASHER PLAIN

Part# 3653

OEM Warranty Repair Part for Electrolux/AYP

Not available

3408

43D

WASHER PLAIN

Part# 3408

OEM Warranty Repair Part for Electrolux/AYP

Not available

3732

43E

WASHER PLAIN

Part# 3732

OEM Warranty Repair Part for Electrolux/AYP

Not available

3184

43F

WASHER, PLAIN .758 X 1.25 X .031

Part# 3184

OEM Warranty Repair Part for Electrolux/AYP

Not available

3733

43G

WASHER PLAIN

Part# 3733

OEM Warranty Repair Part for Electrolux/AYP

Not available

3198

43H

WASHER PLAIN

Part# 3198

OEM Warranty Repair Part for Electrolux/AYP

Not available

3734

43I

WASHER PLAIN

Part# 3734

OEM Warranty Repair Part for Electrolux/AYP

Not available

3735

43J

WASHER PLAIN

Part# 3735

OEM Warranty Repair Part for Electrolux/AYP

Not available

3736

43K

WASHER PLAIN

Part# 3736

OEM Warranty Repair Part for Electrolux/AYP

Not available

3180

43L

WASHER PLAIN

Part# 3180

OEM Warranty Repair Part for Electrolux/AYP

Not available

3882

44

SHAFT, DRIVE

Part# 3882

OEM Warranty Repair Part for Electrolux/AYP

Not available

3646

45

GEAR, SPUR, 12 TEETH

Part# 3646

OEM Warranty Repair Part for Electrolux/AYP

Not available

3707

46

GEAR SPUR, 15 TEETH

Part# 3707

OEM Warranty Repair Part for Electrolux/AYP

Not available

3866

47

GEAR, SPUR, 20 TEETH

Part# 3866

OEM Warranty Repair Part for Electrolux/AYP

Not available

3719

48

GEAR, SPUR, 25 TEETH

Part# 3719

OEM Warranty Repair Part for Electrolux/AYP

Not available

3868

49

GEAR, SPUR, 28 TEETH

Part# 3868

OEM Warranty Repair Part for Electrolux/AYP

Not available

3683

50

GEAR, SPUR, 31 TEETH

Part# 3683

OEM Warranty Repair Part for Electrolux/AYP

Not available

1145

51

WASHER, PLAIN .632 X 1.00 X .060

Part# 1145

OEM Warranty Repair Part for Electrolux/AYP

Not available

3191

52

SEAL FELT

Part# 3191

OEM Warranty Repair Part for Electrolux/AYP

Not available

3180

53

WASHER PLAIN

Part# 3180

OEM Warranty Repair Part for Electrolux/AYP

Not available

3880

54

AXLE LEFT HAND

Part# 3880

OEM Warranty Repair Part for Electrolux/AYP

Not available

3871

55

GEAR MITER 15 TEETH

Part# 3871

OEM Warranty Repair Part for Electrolux/AYP

Not available

3656

56

RING, RETAINING

Part# 3656

OEM Warranty Repair Part for Electrolux/AYP

Not available

3839

57

GEAR, SPUR, 32 TEETH

Part# 3839

OEM Warranty Repair Part for Electrolux/AYP

Not available

3919

58

SHAFT, CROSS

Part# 3919

OEM Warranty Repair Part for Electrolux/AYP

Not available

3726

59

GEAR, MITER, 15 TEETH

Part# 3726

OEM Warranty Repair Part for Electrolux/AYP

Not available

3881

60

AXLE, R.H.

Part# 3881

OEM Warranty Repair Part for Electrolux/AYP

Not available

3864

61

HOUSING LOWER

Part# 3864

OEM Warranty Repair Part for Electrolux/AYP

Not available

3920

62

PUCK, FRICTION

Part# 3920

OEM Warranty Repair Part for Electrolux/AYP

Not available

3276

63

DISC, BRAKE

Part# 3276

OEM Warranty Repair Part for Electrolux/AYP

Not available

3758

64

SPACER

Part# 3758

OEM Warranty Repair Part for Electrolux/AYP

Not available

3916

65

JAW, BRAKE

Part# 3916

OEM Warranty Repair Part for Electrolux/AYP

Not available

3843

66

PIN, DOWEL

Part# 3843

OEM Warranty Repair Part for Electrolux/AYP

Not available

3915

67

SCREW TAPPING

Part# 3915

OEM Warranty Repair Part for Electrolux/AYP

Not available

3768

68

LEVER, ACTUATING

Part# 3768

OEM Warranty Repair Part for Electrolux/AYP

Not available

3760

69

WASHER, PLAIN .321 X 1.00 X .055

Part# 3760

OEM Warranty Repair Part for Electrolux/AYP

Not available

3917

70

BRACKET, ANTI-ROTATION

Part# 3917

OEM Warranty Repair Part for Electrolux/AYP

Not available

3847

71

LOCKNUT 5/16-24

Part# 3847

OEM Warranty Repair Part for Electrolux/AYP

Not available

3724

72

SCREW TAPPING

Part# 3724

OEM Warranty Repair Part for Electrolux/AYP

Not available

3906

73

WASHER PLAIN

Part# 3906

OEM Warranty Repair Part for Electrolux/AYP

Not available

3907

74

PUCK, FRICTION

Part# 3907

OEM Warranty Repair Part for Electrolux/AYP

Not available

4300

75

GREASE

Part# 4300

OEM Warranty Repair Part for Electrolux/AYP

Not available
