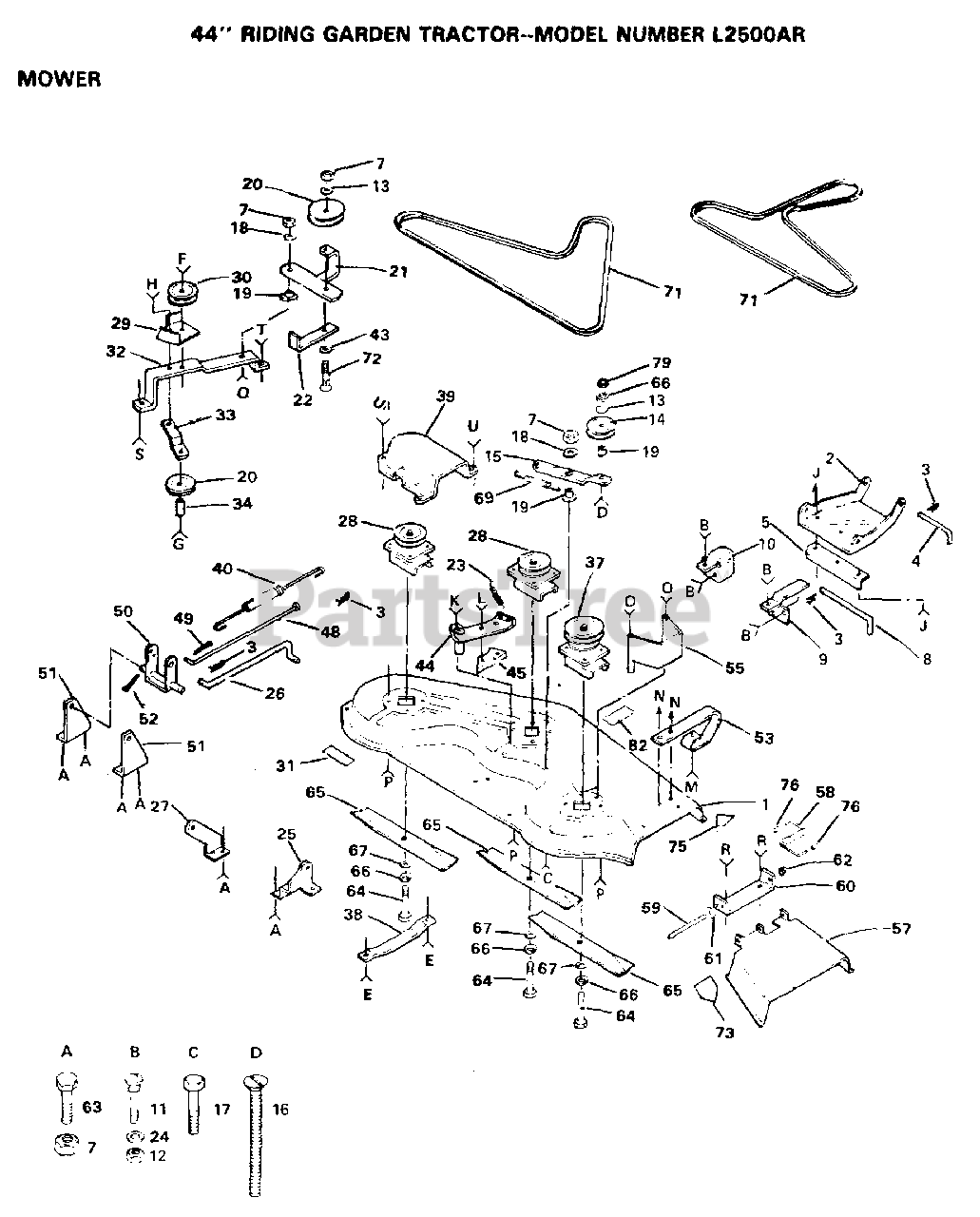

L 2500 AR - Electrolux/AYP Lawn Tractor MOWER Parts Diagram

Lawn Tractor

MOWER Parts Diagram

  • Title

1

Electrolux/AYP 105690X

Housing -Mower

$

$

Not available

2

Electrolux/AYP 105662X

LINK.PARALLEL
(Superseded to 532105662)

$

$

Not available

3

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

In Stock, only 2 left!

0

4

Electrolux/AYP 105744X

"ROD, FRT. PARAL T"
(Superseded to 532105744)

$

$

Not available

5

Electrolux/AYP 105872X

LINK STOP
(Superseded to 583646901)

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 105743X

SUB= 109835X

$

$

Not available

9

Electrolux/AYP 106512X

BRACKET RH YT

$

$

Not available

10

Electrolux/AYP 106511X

BRACKET LH YT

$

$

Not available

11

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

12

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

13

Murray 19131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 102932X

IDLER.FLAT.GTV
(Superseded to 532102932)

$30.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 106526X

ARM-IDLER YT
(Superseded to 532106526)

$18.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 74110632

SCREW YT
(Superseded to 874110632)

$

$

Not available

17

Electrolux/AYP 74760620

SUB= 74780620
(Superseded to 874760620)

$7.49

$

In Stock, only 3 left!

0

18

Electrolux/AYP 106513X

"WASHER, WEAR LT"
(Superseded to 532106513)

$3.99

$

In Stock, only 3 left!

0

19

Electrolux/AYP 106902X

SPACER RETAINER
(Superseded to 532106902)

$2.99

$

In Stock, only 2 left!

0

20

Electrolux/AYP 102403X

IDLER-FLAT T
(Superseded to 532102403)

$37.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 106518X

SUB= 121424X

$

$

Not available

22

Electrolux/AYP 106461X

SUB= 126756X

$

$

Not available

23

Electrolux/AYP 106530X

SPRING-EXT YT

$

$

Not available

24

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 109278X

SUB= 123807X

$

$

Not available

26

Electrolux/AYP 108235X

ROD LT

$

$

Not available

27

Electrolux/AYP 108359X

SUB= 123808X

$

$

Not available

28

Electrolux/AYP 106037X

SUB= 136819

$

$

Not available

29

Electrolux/AYP 106529X

GUIDE-BELT YT
(Superseded to 583651201)

$

$

Not available

30

Electrolux/AYP 677A451

IDLER-INSIDE T
(Superseded to 532124858)

$

$

Not available

31

Electrolux/AYP 106223X

DECAL YT

$

$

Not available

32

Electrolux/AYP 106523X

"SUPPORT YT, BAR"
(Superseded to 532106523)

$

$

Not available

33

Electrolux/AYP 106522X

BRACE-IDLER YT
(Superseded to 532106522)

$2.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 106525X

SPACER YT

$

$

Not available

37

Electrolux/AYP 106041X

SUB= 121705X

$

$

Not available

38

Electrolux/AYP 7631J

RUNNER-LH M
(Superseded to 532007631)

$18.99

$

In Stock, only 4 left!

0

39

Electrolux/AYP 106214X

GUARD YT
(Superseded to 532106214)

$

$

Not available

40

Electrolux/AYP 108395X

NLA

$

$

Not available

43

Electrolux/AYP 19171912

WASHER
(Superseded to 819171912)

$7.49

$

In Stock, only 2 left!

0

44

Electrolux/AYP 106606X

BRAKE ARM LT

$7.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 102951X

BRAKE-BLOCK YTV

$

$

Not available

48

Electrolux/AYP 108394X

ROD BRAKE YT

$

$

Not available

49

Electrolux/AYP 76020312

SUB= 3145
(Superseded to 539003145)

$133.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 108242X

SUB= 110384X

$

$

Not available

51

Electrolux/AYP 108393X

SUPPORT SHAFT YT
(Superseded to 583655201)

$7.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 76020616

SUB= 76020624

$

$

Not available

53

Electrolux/AYP 8418J

SUB= 136321
(Superseded to 532136321)

$

$

Not available

55

Electrolux/AYP 102924X

ASSY RH BELT GRD

$

$

Not available

57

Electrolux/AYP 109785X

DEFLECTOR SHIELD
(Superseded to 532109785)

$30.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 106734X

SUB= 123713X

$

$

Not available

59

Electrolux/AYP 106735X

ROD-HINGE T
(Superseded to 532106735)

$8.99

$

In Stock, only 1 left!

0

60

Electrolux/AYP 109743X

SUB= 137607
(Superseded to 532109743)

$

$

Not available

61

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.99

$

In Stock, Qty 20+

0

62

Electrolux/AYP 5846R

SUB= 110452X

$

$

Not available

63

Electrolux/AYP 72140606

BOLT
(Superseded to 872140606)

$

$

Not available

64

Electrolux/AYP 74610624

BOLT.3/8-24X1-1/2
(Superseded to 874610624)

$6.49

$

In Stock, only 1 left!

0

65

Electrolux/AYP 106635X

SUB= 25034
(Superseded to 532025034)

$

$

Not available

66

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$3.49

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 100123L

SPRING LT

$

$

Not available

71

Electrolux/AYP 106085X

BELT-V.79.1.MWR
(Superseded to 532106085)

$36.99

$

In Stock, only 1 left!

0

72

Electrolux/AYP 72140616

BOLT
(Superseded to 582736301)

$2.99

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 78850

SUB= 85463

$

$

Not available

75

Electrolux/AYP 106975X

DECAL - SAFETY STANDARD

$

$

Not available

76

Electrolux/AYP 105304X

CAP-SLEEVE LT
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

79

Electrolux/AYP 73220600

NUT.HEX.3/8-16UNC
(Superseded to 873220600)

$6.49

$

In Stock, only 4 left!

0

82

Electrolux/AYP 106679X

DECAL.WARNING.T

$

$

Not available
