L 2500 AR - Electrolux/AYP Lawn Tractor STEERING ASSEMBLY Parts Diagram

Lawn Tractor

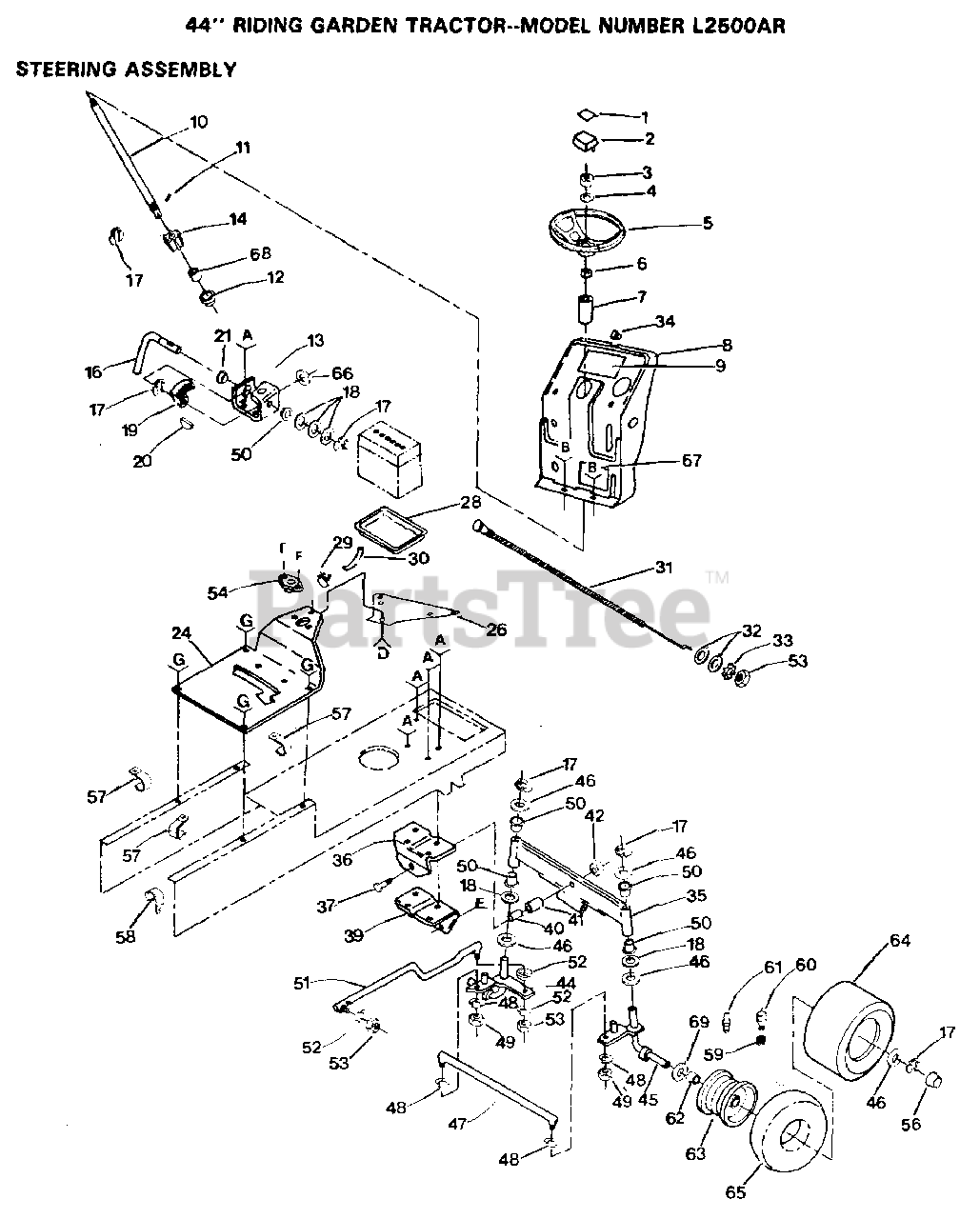

STEERING ASSEMBLY Parts Diagram

  • Title
1

Electrolux/AYP 109325X

Decal Steering Wheel Insert

$

$

Not available

2

Electrolux/AYP 100710L

INSERT-WHEEL LT
(Superseded to 532100710)

$

$

Not available

3

Electrolux/AYP 73360800

NUT
(Superseded to 873940800)

$7.49

$

In Stock, only 4 left!

0

4

Electrolux/AYP 100712K

WASHER
(Superseded to 532100712)

$

$

Not available

5

$

$

Not available

6

Electrolux/AYP 100711L

ADAPTER LT
(Superseded to 587738905)

$9.49

$

In Stock, Qty 7

0

7

Electrolux/AYP 100714L

SLEEVE LTV
(Superseded to 583638001)

$2.99

$

Usually ships in 3-10 days

0

$

$

Not available

$

$

Not available

10

Electrolux/AYP 108705X

SHAFT STR HYT

$

$

Not available

11

$

$

Not available

12

Electrolux/AYP 71208

BUSHING
(Superseded to 532071208)

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 109432X

SUB= 110150X

$

$

Not available

14

Electrolux/AYP 108685X

GEAR PINION T

$

$

Not available

16

Electrolux/AYP 108683X

ROD STEERING T

$

$

Not available

17

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 6266H

WASHER .T
(Superseded to 532006266)

$7.49

$

In Stock, Qty 11

0

19

Electrolux/AYP 108684X

GEAR.SECTOR.HYT

$

$

Not available

20

Electrolux/AYP 106126X

KEY-WOODRUFF LT

$

$

Not available

21

Electrolux/AYP 109816X

NYLINER T
(Superseded to 532109816)

$6.49

$

In Stock, only 2 left!

0

$

$

Not available

26

$

$

Not available

28

Electrolux/AYP 7603J

"TRAY T, BATTERY"
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 109596X

HOSE CLAMP T
(Superseded to 532109596)

$4.99

$

Usually ships in 3-10 days

0

30

$

$

Not available

31

Electrolux/AYP 109836X

SUB= 132779
(Superseded to 532132779)

$21.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 8022J

PLUG-DASH T
(Superseded to 532125085)

$

$

Not available

35

Electrolux/AYP 105669X

SUB= 108075X
(Superseded to 108075X)

$

$

Not available

36

Electrolux/AYP 105663X

SUPPORT-SADDL T
(Superseded to 532105663)

$

$

Not available

37

Electrolux/AYP 74761060

BOLT LT
(Superseded to 874761060)

$6.49

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 105664X

SUPPORT.SADDLE.FT
(Superseded to 532105664)

$9.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 105725X

SUB= 110438X

$

$

Not available

41

$

$

Not available

42

Electrolux/AYP 73901000

"NUT-LOC,FLANGE LT"
(Superseded to 583612401)

$3.49

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 105655X

SPINDLE LH YT

$

$

Not available

45

$

$

Not available

46

$

$

Not available

47

$

$

Not available

48

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 73610500

NUT
(Superseded to 582737001)

$2.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 3366R

COL. SRTG. BEAR.
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

51

Electrolux/AYP 105727X

LINK-DRAG LT
(Superseded to 532105727)

$

$

Not available

52

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 73610600

SUB= 7810H
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 1554J

SUB= 155108

$

$

Not available

56

Electrolux/AYP 104757X

HUB CAP
(Superseded to 532104757)

$4.99

$

In Stock, Qty 20+

0

57

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

58

Electrolux/AYP 5320R

INSUL CLIP T
(Superseded to 532005320)

$5.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 59192

VALVE CAP
(Superseded to 532059192)

$7.49

$

In Stock, Qty 9

0

60

Electrolux/AYP 65139

VALVE STEM LT
(Superseded to 532065139)

$9.99

$

In Stock, only 1 left!

0

61

Electrolux/AYP 278H

FITTING LT
(Superseded to 532000278)

$6.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 9040H

"FLANGE, BEARING"
(Superseded to 532009040)

$7.99

$

In Stock, Qty 20+

0

63

Electrolux/AYP 106732X

SUB= 106732X417

$

$

Not available

64

Electrolux/AYP 106222X

SUB= 122073X
(Superseded to 532122073)

$74.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 59904

TUBE.5.3/4.5/6
(Superseded to 532059904)

$37.99

$

In Stock, Qty 7

0

66

$

$

Not available

67

Electrolux/AYP 8497J

DECAL, INSTRUCTION

$

$

Not available

68

Electrolux/AYP 74580

SHAFT SPACER LT

$

$

Not available

69

$

$
