L 421 P (961330033-00) - Husqvarna 21" Walk-Behind Mower (2017-10) ENGINE Parts Diagram

21" Walk-Behind Mower

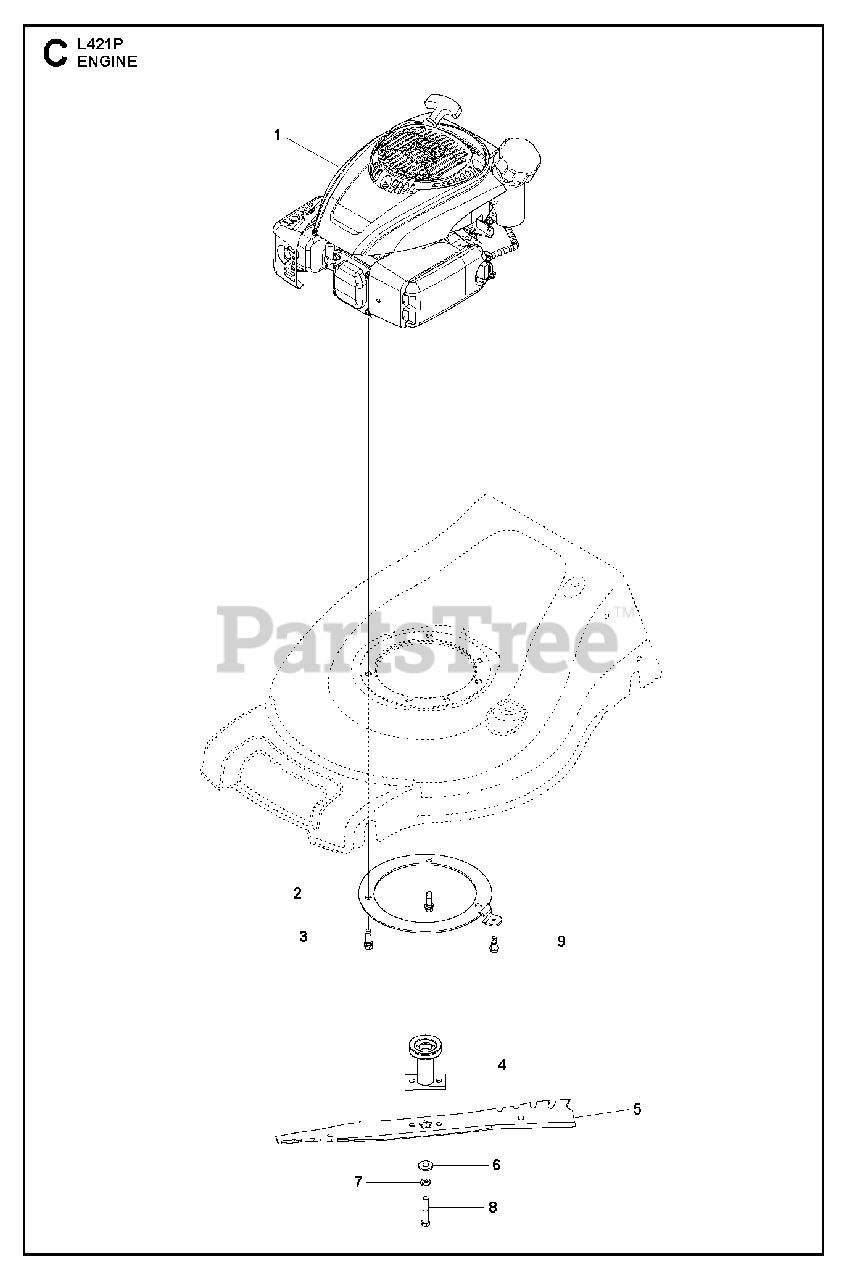

ENGINE Parts Diagram

  • Title

1

000000000

Note: Kohler HD 775 For service and parts 1-800-544-2444

$

$

Not available

2

Husqvarna 591101102

MOUNTING PLATE BOTTOM ENGINE R

Note: Bottom Engine Ring

$

$

Not available

3

Husqvarna 532150406

BOLT 3/8-16X1-1/8

Note: 3 /8-16

$7.49

$

In Stock, Qty 10

0

4

Husqvarna 590044201

Blade Adapter, 25M.2P.Aw

Note: 7 /8 21

$10.99

$

In Stock, Qty 18

0

5

Husqvarna 586859602

BLADE.21.REAPER.WO/NOTCHES
(Superseded to 586859604)

Note: High Lift

$15.99

$

In Stock, Qty 20+

0

6

Husqvarna 532851074

WASHER,HARDEN

Note: Hardened

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

Note: 3 /8 Helical Spring

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 582388401

BOLT.ENGINE.PULLEY

Note: Hex Head Machine Screw

$4.99

$

In Stock, Qty 14

0

9

Husqvarna 581726101

BOLT SHOULDER_1/4-20_TRILOB

Note: Shoulder 1 /4-20 Tri-lobe

$4.99

$

In Stock, Qty 10

0
