L-518 - Toro 18" Walk-Behind Mower (1966) PARTS LIST L-518 REO MOWER Parts Diagram

18" Walk-Behind Mower

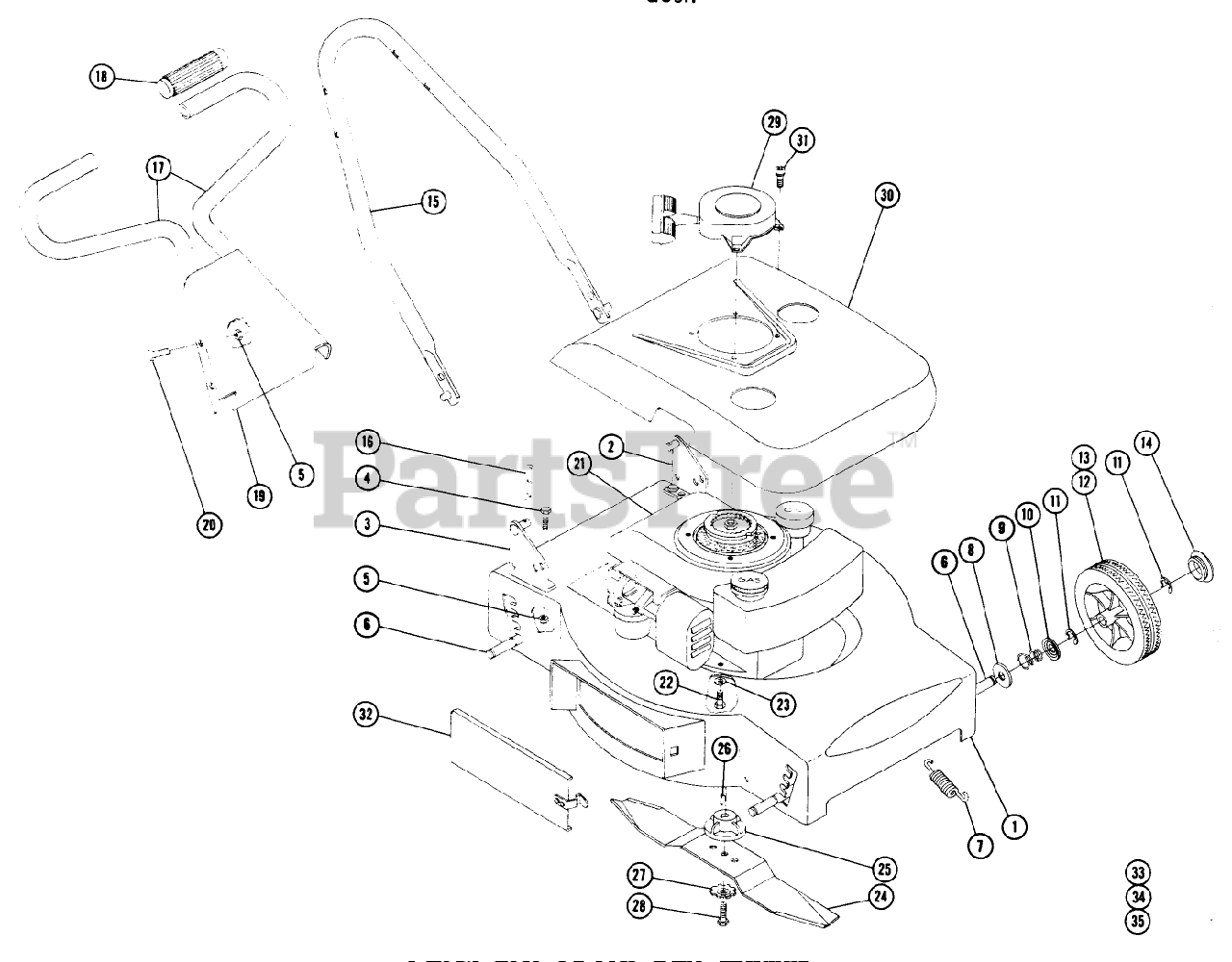

PARTS LIST L-518 REO MOWER Parts Diagram

  • Title

1

Toro MW-8629

Ass-y. Deck

$

$

Currently unavailable

2

Toro MW-8590

Ass-y. Bracket-Handle L.H.

$

$

Currently unavailable

3

Toro MW-8591

Ass-y. Bracket-Handle R.H.

$

$

Currently unavailable

4

Toro 908017-4

Bolt 5/16-18 x

$

$

Currently unavailable

5

Toro 915112-6

Nut-Nylok

$

$

Currently unavailable

6

Toro MW-8640

Shaft-Axle

$

$

Currently unavailable

7

Toro MW-8402

Spring-Idler

$

$

Currently unavailable

8

Toro 920213-4

Washer

$

$

Currently unavailable

9

Toro 5363

Spring-Wheel

$

$

Currently unavailable

10

Toro MW-5191

Washer-Cup

$

$

Currently unavailable

11

Toro MW-4564

Lock Rod

$

$

Currently unavailable

12

Toro 6316

Wheel-Rear 8"

$

$

Currently unavailable

13

Toro 6315

Wheel-Front 7"

$

$

Currently unavailable

14

Toro 6287

Hubcap

$

$

Currently unavailable

15

Toro MW-8667

Ass-y. Handle-Lower

$

$

Currently unavailable

16

Toro 933503-4

Hairpin

$

$

Currently unavailable

17

Toro MW-8665

Handle-Upper

$

$

Currently unavailable

18

Toro 6223

Grip-Handle

$

$

Currently unavailable

19

Toro MW-8566

Cover-Handle

$

$

Currently unavailable

20

Toro 5364

Bolt-Hex. 5/16-18 x 1

$

$

Currently unavailable

21

Toro 6190

Pivot Bushing
(Superseded to 703312)

$

$

Not available

22

Toro 908019-4

Bolt 5/16-18 x 1

$

$

Currently unavailable

23

Toro 920082-4

Lockwasher

$

$

Currently unavailable

24

Toro MW-8034

Blade 18" Rotary

$

$

Currently unavailable

25

Toro MW-7726

Drive Blade

$

$

Currently unavailable

26

Toro 937010

WOODRUFF KEY

$0.99

$

Usually ships in 3-6 days

0

27

Toro 1336

WASHER

$

$

Not available

28

Toro 908184-5

Bolt 3/8-24 x 1 1/4 Nylok

$

$

Currently unavailable

29

Toro MW-8580

Ass-y. Starter-Recoil

$

$

Currently unavailable

30

Toro 6218

Shroud-Engine

$

$

Currently unavailable

31

Toro 911565-4

Screw & Lockwasher 1/4-28 x 9/16

$

$

Currently unavailable

32

Toro MW-8690

Ass-y. Plate-Mulching

$

$

Currently unavailable

33

Toro 6332

4XC6485 GIS ROTARY

$3.23

$

Usually ships in 3-6 days

0

34

Toro 6151

Decal-Reo
(Superseded to 83-3410)

$

$

Not available

35

Toro 6181

Decal-Caution
(Superseded to 704093)

$

$

Not available
