L 80000 AT - Electrolux/AYP Lawn Tractor STEERING, ENCLOSURES, SEAT Parts Diagram

Lawn Tractor

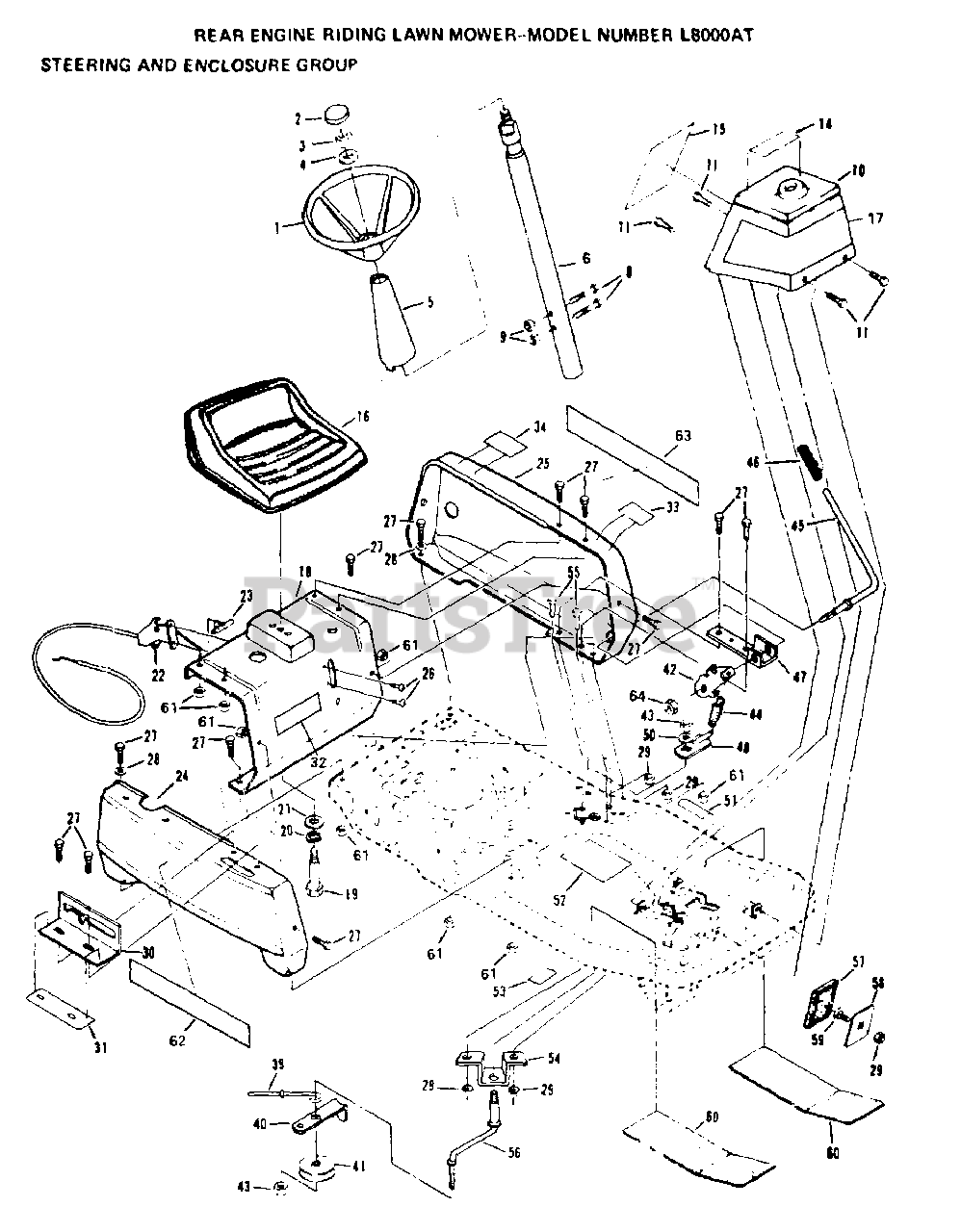

STEERING, ENCLOSURES, SEAT Parts Diagram

  • Title

1

Electrolux/AYP 74564

NLA

$

$

Not available

2

Electrolux/AYP 1114J

INSERT CAP LT

$

$

Not available

3

Electrolux/AYP 73360800

NUT
(Superseded to 873940800)

$7.49

$

In Stock, Qty 11

0

4

Electrolux/AYP 19171616

WASHER

$2.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 72705

STEERING SHAFT COVER

$

$

Not available

6

Electrolux/AYP 677A775

STEERING SHAFT ASSY

$

$

Not available

8

Electrolux/AYP 74780420

BOLT

$

$

Not available

9

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$3.99

$

In Stock, Qty 20+

0

10

Electrolux/AYP 677A782358

CONSOLE ASSY

$

$

Not available

11

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 8040J

DECAL - OPERATING INSTRUCTIONS

$

$

Not available

15

Electrolux/AYP 8044J

DECAL - INSTRUCTION

$

$

Not available

16

Electrolux/AYP 476J

SUB= 140119

$

$

Not available

17

Electrolux/AYP 108601X

NLA

$

$

Not available

18

Electrolux/AYP 8430J

FRONT PANEL W/SILK SCREEN

$

$

Not available

19

Electrolux/AYP 72639

NLA

$

$

Not available

20

Electrolux/AYP 10110800

SUB= 10040800

$

$

Not available

21

Electrolux/AYP 19171912

WASHER
(Superseded to 819171912)

$7.49

$

In Stock, only 2 left!

0

22

Electrolux/AYP 1544J

SUB= 132768

$

$

Not available

23

Electrolux/AYP 61159

KNOB

$

$

Not available

24

Electrolux/AYP 8034J358

PANEL - SIDE

$

$

Not available

25

Electrolux/AYP 8033J358

PANEL - SIDE

$

$

Not available

26

Electrolux/AYP 17760412

SCREW LT

$

$

Not available

27

Electrolux/AYP 98000131

NLA

$

$

Not available

28

Electrolux/AYP 19111816

SUB= 52915

$

$

Not available

29

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 74706

SHIFTER GATE T
(Superseded to 582937501)

$4.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 108630X

NLA

$

$

Not available

32

Electrolux/AYP 108658X

SUB= 120822X

$

$

Not available

33

Electrolux/AYP 8046J

DECAL - BLADE

$

$

Not available

34

Electrolux/AYP 8037J

DECAL - ENGINE

$

$

Not available

39

Electrolux/AYP 6407J

SUB= 110093X

$

$

Not available

40

Electrolux/AYP 6278J

BELT KEEPER T

$

$

Not available

41

Electrolux/AYP 6109J

IDLER PULLEY T

$9.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 105197X

SPRING ARM

$

$

Not available

43

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 2679J

SPRING

$

$

Not available

45

Electrolux/AYP 74538

LEVER.CLUTCH.BLAD

$

$

Not available

46

Electrolux/AYP 71246

NLA

$

$

Not available

47

Electrolux/AYP 74539

NLA

$

$

Not available

48

Electrolux/AYP 75339

CONTROL ARM ASSY

$

$

Not available

50

Electrolux/AYP 19131407

SUB= 55611

$

$

Not available

51

Electrolux/AYP 8045J

DECAL - ENTER & EXIT

$

$

Not available

52

Electrolux/AYP 8043J

DECAL - BRAKE INSTRUCTION

$

$

Not available

53

Electrolux/AYP 1133J

SUB= 101892X

$

$

Not available

54

Electrolux/AYP 74542

IDLER SUPPORT BKT

$

$

Not available

55

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

56

Electrolux/AYP 6077J

IDLER ARM

$

$

Not available

57

Electrolux/AYP 67365

FOOT PAD LT
(Superseded to 582936001)

$31.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 67189

NLA

$

$

Not available

59

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

60

Electrolux/AYP 72384

NLA

$

$

Not available

61

Electrolux/AYP 73510500

NUT

$2.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 108600X

DECAL - FENDER

$

$

Not available

63

Electrolux/AYP 108599X

DECAL - FENDER

$

$

Not available

64

Electrolux/AYP 73930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 101539X

SHEET INSTR LT
(Superseded to 532101539)

$

$

Not available

Electrolux/AYP 108616X

NLA

$

$

Not available
