L1 - Simplicity Two-Wheeled Tractor, 2hp Mower Group - 24" (3738I06) Parts Diagram

Two-Wheeled Tractor, 2hp

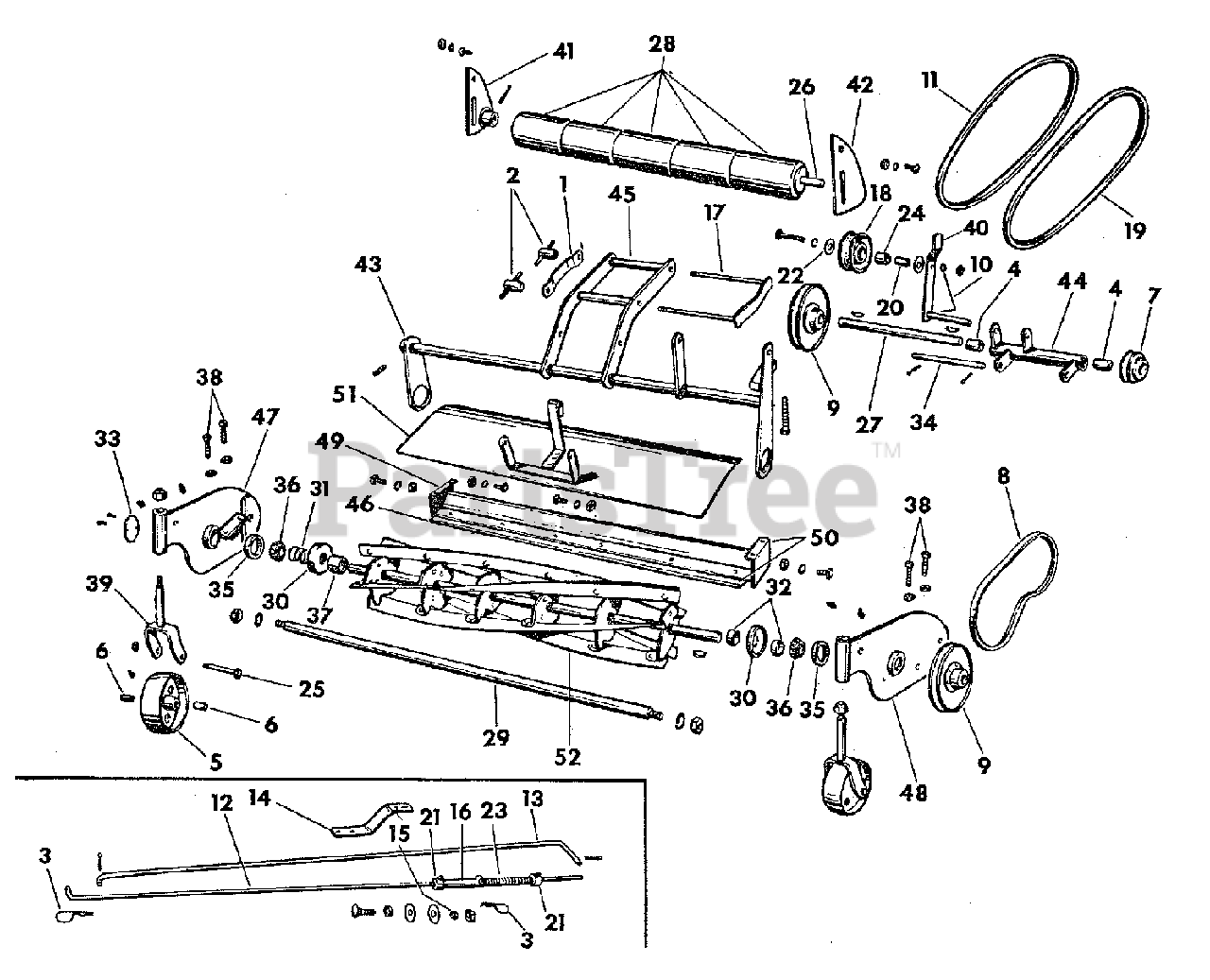

Mower Group - 24" (3738I06) Parts Diagram

  • Title

1

Simplicity S1A-29

SIDE PLATE, Hitch

$

$

Not available

2

Simplicity S1A-41

NUT, Wing, Complete

$

$

Not available

3

Simplicity S1A45

CLIP, Spring

$

$

Not available

4

Simplicity S1A59

BUSHING, Bronze

$

$

Not available

5

Simplicity S1A114

CASTER WHEEL, w/Bearing and Grease Fitting

$

$

Not available

6

Simplicity S1A115

BEARING, Caster Wheel

$

$

Not available

7

Simplicity S1A117

SHEAVE, Reel Driver

$

$

Not available

8

Simplicity S1A120

BELT, Reel Drive, 27" Circumferance

$

$

Not available

9

Simplicity S1A123

COUNTER SHAFT & REEL SHEAVE

$

$

Not available

10

Simplicity S1A158

BELT HOLDER

$

$

Not available

11

Simplicity S1A164

BELT, 31" Circumferance, 1-1/2 HP

$

$

Not available

12

Simplicity S1A-193

ROD, Lower Idler

$

$

Not available

13

Simplicity S1A213

ROD, Upper Idler

$

$

Not available

14

Simplicity S1A214

CLUTCH LEVER, Lower

$

$

Not available

15

Simplicity S1A215

BUSHING

$

$

Not available

16

Simplicity S1AX-18

SOCKET ASSEMBLY, Rod

$

$

Not available

17

Simplicity S1BX-1

CLAMP ASSEMBLY, Hitch

$

$

Not available

18

Simplicity SSA-3A

PULLEY, Idler

$

$

Not available

19

Simplicity S1A85

BELT, 35", 3HP

$

$

Not available

20

Simplicity S2-A20

BEARING RACE, Inner

$

$

Not available

21

Simplicity S2A22

COLLAR, Set

$

$

Not available

22

Simplicity S2A-37

WASHER, Thrust

$

$

Not available

23

Simplicity S2A45

SPRING, Idler Rod

$

$

Not available

24

Simplicity S2A-48

BEARING, Idler Pulley

$

$

Not available

25

Simplicity S1LA20

WHEEL SPINDLE, Caster

$

$

Not available

26

Simplicity S1LA21

SHAFT, Roller

$

$

Not available

27

Simplicity S1LA22

SHAFT, Transmission

$

$

Not available

28

Simplicity S1LA23

ROLLER, Hard Wood

$

$

Not available

29

Simplicity S1LA24

ROD, Spacer

$

$

Not available

30

Simplicity S1LA25

COVER, Bearing

$

$

Not available

31

Simplicity S1LA26

SPRING, Bearing

$

$

Not available

32

Simplicity S1LA27

SPACER, Bearing, Short

$

$

Not available

33

Simplicity S1LA28

CAP, Bearing

$

$

Not available

34

Simplicity S1LA29

PIN, Hinge

$

$

Not available

35

Simplicity S1LA30

CAP, Bearing

$

$

Not available

36

Simplicity S1LA31

CONE, Bearing

$

$

Not available

37

Simplicity S1LA32

SPACER, Bearing, Long

$

$

Not available

38

Simplicity S1LA33

SCREW, Blade Adjusting

$

$

Not available

39

Simplicity S1LAX14

FORK ASSEMBLY, Caster

$

$

Not available

40

Simplicity S1LAX5

LEVER ASSEMBLY, Idler

$

$

Not available

41

Simplicity S1LAX6

ROLLER BRACKET, R.H.

$

$

Not available

42

Simplicity S1LAX7

ROLLER BRACKET, L.H.

$

$

Not available

43

Simplicity S1LAX8

PUSH ARM ASSEMBLY, R.H.

$

$

Not available

44

Simplicity S1LBX2

BEARING BRACKET, w/Bushings and Grease Fitting

$

$

Not available

45

Simplicity S1LBX3

PUSH ARM ASSEMBLY, w/L.H. Push Arm

$

$

Not available

46

Simplicity S1LC6

BLADE

$

$

Not available

47

Simplicity S1LCX1

LAWN MOWER FRAME ASSEMBLY, R.H.

$

$

Not available

48

Simplicity S1LCX2

LAWN MOWER FRAME ASSEMBLY, L.H.

$

$

Not available

49

Simplicity S1LCX3

BAR ASSEMBLY, Cutter

$

$

Not available

50

Simplicity S1LCX4

CUTTER BAR ASSEMBLY, w/Blade

$

$

Not available

51

Simplicity S1LCX5

GUARD ASSEMBLY, Grass

$

$

Not available

52

Simplicity S1LCX6

REEL ASSEMBLY, 24"

$

$

Not available
