L1 - Simplicity Two-Wheeled Tractor, 2hp Sickle Bar Group - 30" (3738I07) Parts Diagram

Two-Wheeled Tractor, 2hp

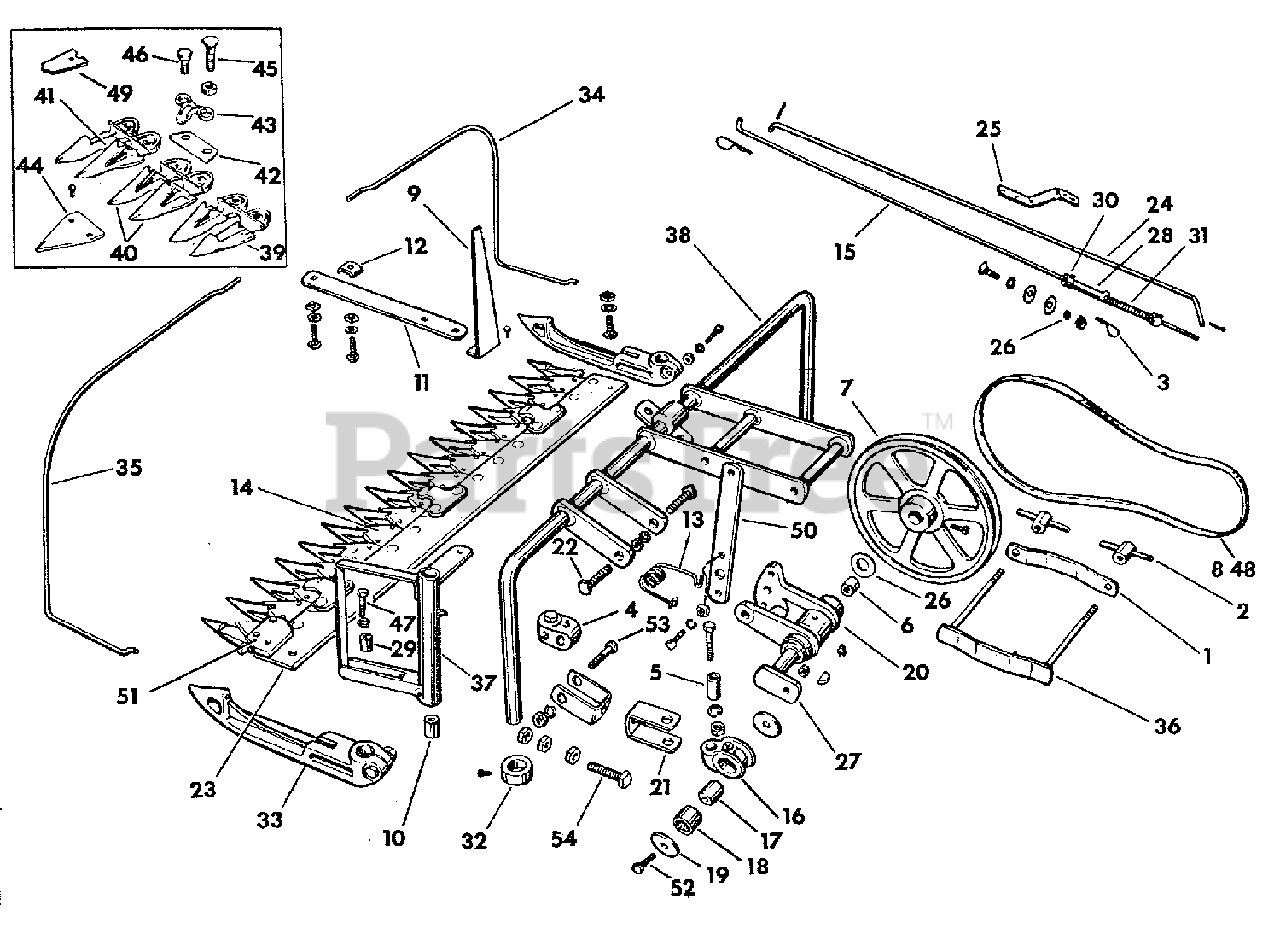

Sickle Bar Group - 30" (3738I07) Parts Diagram

  • Title

1

Simplicity S1A-29

SIDE PLATE, Hitch

$

$

Not available

2

Simplicity S1A-41

T-NUT, Complete

$

$

Not available

3

Simplicity S1-A45A

CLIP, Spring

$

$

Not available

4

Simplicity S1A52

PIVOT BLOCK

$

$

Not available

5

Simplicity S1A56

BEARING, Pivot Block

$

$

Not available

6

Simplicity S1A59

BUSHING, Bearing Bracket

$

$

Not available

7

Simplicity S1A86

SHEAVE

$

$

Not available

8

Simplicity S1A119

BELT, 33" (1-1/2 HP)

$

$

Not available

9

Simplicity S1A178

WHIPPER

$

$

Not available

10

Simplicity S1A180

BUSHING, Sickle Crank

$

$

Not available

11

Simplicity S1A181

BRACKET, Grass Finger

$

$

Not available

12

Simplicity S1A182

CLAMP, Grass Finger

$

$

Not available

13

Simplicity S1A185A

SPRING, Belt Release

$

$

Not available

14

Simplicity S1A188

SICKLE, Complete w/Head

$

$

Not available

15

Simplicity S1A-193

ROD, Lower Idler

$

$

Not available

16

Simplicity S1A196

HOUSING, Pitman Bearing

$

$

Not available

17

Simplicity S1A197

INNER RACE, Pitman Bearing

$

$

Not available

18

Simplicity S1A198

NEEDLE BEARING, Pitman

$

$

Not available

19

Simplicity S1A199

WASHER, Pitman Bearing

$

$

Not available

20

Simplicity S1A202

BRACKET, Bearing

$

$

Not available

21

Simplicity S1A203

CLEVIS, Pitman

$

$

Not available

22

Simplicity S1A209

CAPSCREW, Special

$

$

Not available

23

Simplicity S1A189

CUTTER BAR, 30"

$

$

Not available

24

Simplicity S1A213

ROD, Upper Idler

$

$

Not available

25

Simplicity S1A214

IDLER LEVER, Lower

$

$

Not available

26

Simplicity S1A215

BUSHING, Idler Lever

$

$

Not available

27

Simplicity S1AX15A

SHAFT ASSEMBLY, Crank

$

$

Not available

28

Simplicity S1AX-18

SOCKET ASSEMBLY, Rod

$

$

Not available

29

Simplicity S1A218

BUSHING, Sickle Head

$

$

Not available

30

Simplicity S2A22

COLLAR, Set

$

$

Not available

31

Simplicity S2A45

SPRING

$

$

Not available

32

Simplicity S2E-A5

COLLAR, Set

$

$

Not available

33

Simplicity S1B19

SHOE, Sickle Bar

$

$

Not available

34

Simplicity S1B26

GRASS FINGER, Right

$

$

Not available

35

Simplicity S1B27

GRASS FINGER, Left

$

$

Not available

36

Simplicity S1BX-1

CLAMP, Hitch

$

$

Not available

37

Simplicity S1BX7A

BELL CRANK, Sickle

$

$

Not available

38

Simplicity S1CX8

FRAME, Sickle Bar

$

$

Not available

39

Simplicity S1A131

GUARD, Left End

$

$

Not available

40

Simplicity S1A135

GUARD, Twin

$

$

Not available

41

Simplicity S1A138

GUARD, Right End

$

$

Not available

42

Simplicity S1A136

PLATE, Wear

$

$

Not available

43

Simplicity S1A137

CLIP, Sickle

$

$

Not available

44

Simplicity S1A132

SICKLE SECTIONS (15 Sections and 30 Rivets in box)

$

$

Not available

45

Simplicity S1A133

GUARD BOLT, Long

$

$

Not available

46

Simplicity S1A134

GUARD BOLT, Short

$

$

Not available

47

BOLT, Sickle Head, 3/8-24 x 1-1/2

$

$

Not available

48

Simplicity S1A217

BELT, "V", 3HP

$

$

Not available

49

Simplicity S1A191

PLATES, Ledger

$

$

Not available

50

Simplicity S1AX17

ARM ASSEMBLY, Clutch

$

$

Not available

51

SICKLE HEAD

$

$

Not available

52

BOLT, Crank Pin, 3/8-24 x 2

$

$

Not available

53

BOLT, Pivot Block, 3/8-16 x 1-3/4

$

$

Not available

54

BOLT, Pitman Machine, 7/16-14 x 1-1/2

$

$

Not available
