L2400 (9158-0) - Generac 2,400 Watt Portable Generator Generator No. 77392 Parts Diagram

2,400 Watt Portable Generator

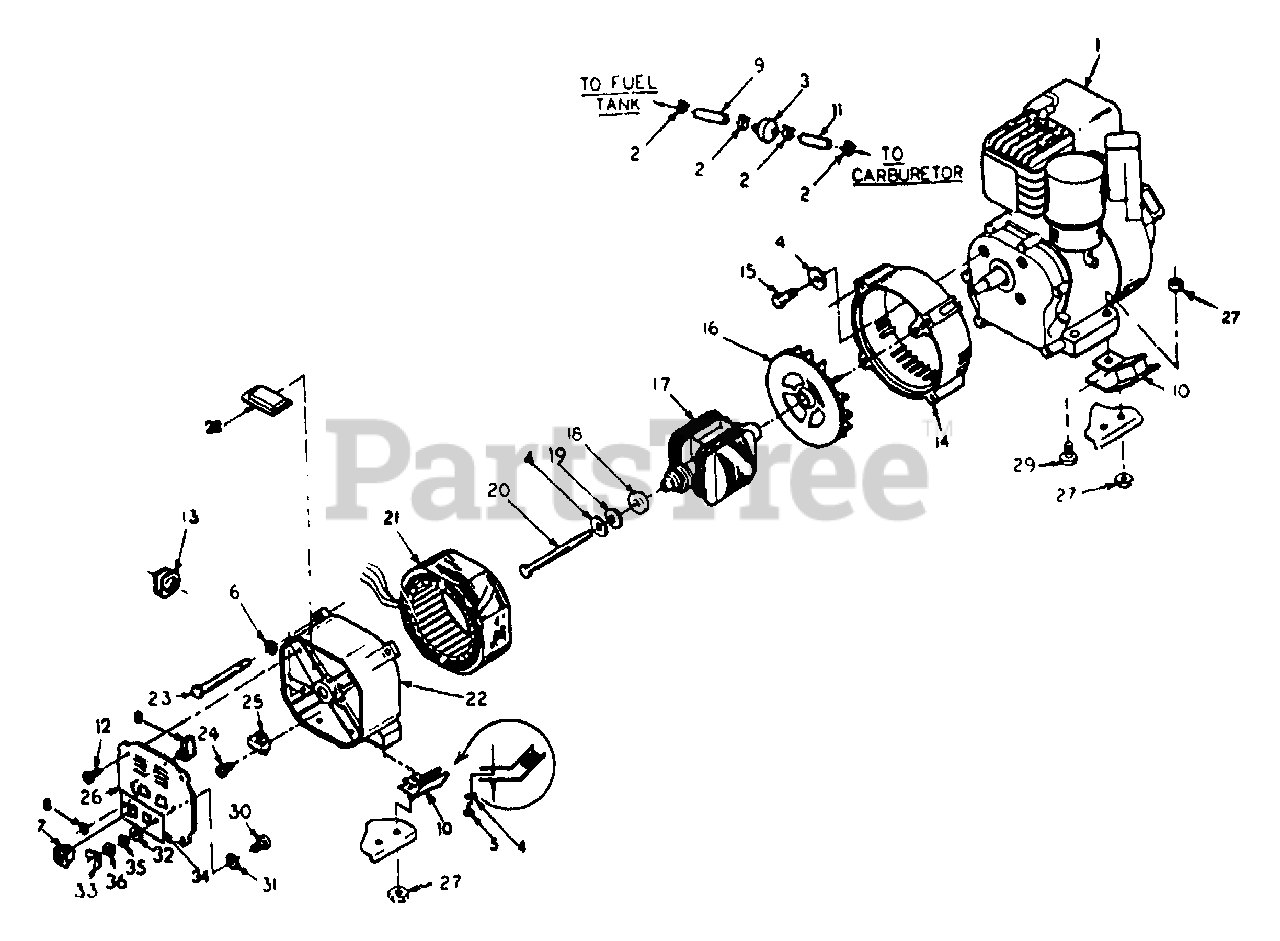

Generator No. 77392 Parts Diagram

  • Title

1

Briggs & Stratton 77352

ENGINE 3 HP., KAWASAKI (FA130)

$

$

Currently unavailable

2

Briggs & Stratton 66836

CLAMP, FUEL LINE

$

$

Currently unavailable

3

Briggs & Stratton 68740

FUEL FILTER
(Superseded to 68740GS)

$11.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 22129

WASHER, LOCK-M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 70644

SCREW, PAN HD.-M8-1.25 x 20MM
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 22097

LOCK WASHER-M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 66818

OUTLET, 120 VOLT
(Superseded to 66818GS)

$25.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 66861

BREAKER, CIRCUIT 12 AMPERE

$

$

Currently unavailable

9

Briggs & Stratton 77396

LINE, FUEL-4MM ID x 50MM LONG

$

$

Currently unavailable

10

Briggs & Stratton 70642

MOUNT, VIBRATION 45 DEGREE
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 77397

FUEL LINE-4MM I.D. x 300MM

$

$

Currently unavailable

12

Briggs & Stratton 74908

SCREW, SELF TAPPING M5-0.80 x 10MM
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 67022

GROMMET, WIRE OUTLET
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 66365

HOUSING, ENGINE ADAPTOR
(Superseded to 66365GS)

$69.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 39253

CAPSCREW, HEX HEAD-M8-1.25 x 20MM
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66389

FAN, COOLING

$

$

Not available

17

Briggs & Stratton 77367

ROTOR ASSEMBLY

$

$

Currently unavailable

18

Briggs & Stratton 65791

BEARING, BALL
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 67451

FLAT WASHER (SPECIAL) M8

$

$

Currently unavailable

20

Briggs & Stratton 66448C

BOLT, ROTOR-M8-1.25 x 170MM

$

$

Currently unavailable

21

Briggs & Stratton 77383

STATOR ASSEMBLY
(Superseded to 77383GS)

$424.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 66825

CARRIER, REAR BEARING

$

$

Currently unavailable

23

Briggs & Stratton 66449H

BOLT, STATOR-M6-1.00 x 60MM

$

$

Currently unavailable

24

Briggs & Stratton 66849

SCREW (TAPTITE) M5-0.80 x 16MM
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 66386

BRUSH
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 77394

COVER, BEARING CARRIER

$

$

Currently unavailable

27

Briggs & Stratton 52858

NUT, HEX LOCK M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 66850

BRIDGE, RECTIFIER
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 70629

SCREW, PAN HEAD-M8-1.25 x 40MM

$

$

Currently unavailable

30

Briggs & Stratton 52619

SCREW, MACHINE-M5-0.80 x 20MM
(Superseded to 52619GS)

$1.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 67444

WASHER, SERRATED-M5

$

$

Currently unavailable

32

Briggs & Stratton 51716

NUT, HEX-M5-0.80
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 67435

NUT, WING (GROUNDING)-M5-0.80

$

$

Currently unavailable

34

Briggs & Stratton 77379

DECAL, CONTROL PANEL

$

$

Currently unavailable

35

Briggs & Stratton 51713

FLAT WASHER-M5
(Superseded to 51713GS)

$2.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 49226

LOCK WASHER-M5
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0
