L4000 (8865-8) - Generac 4,000 Watt Portable Generator Mounting Base Parts Diagram

4,000 Watt Portable Generator

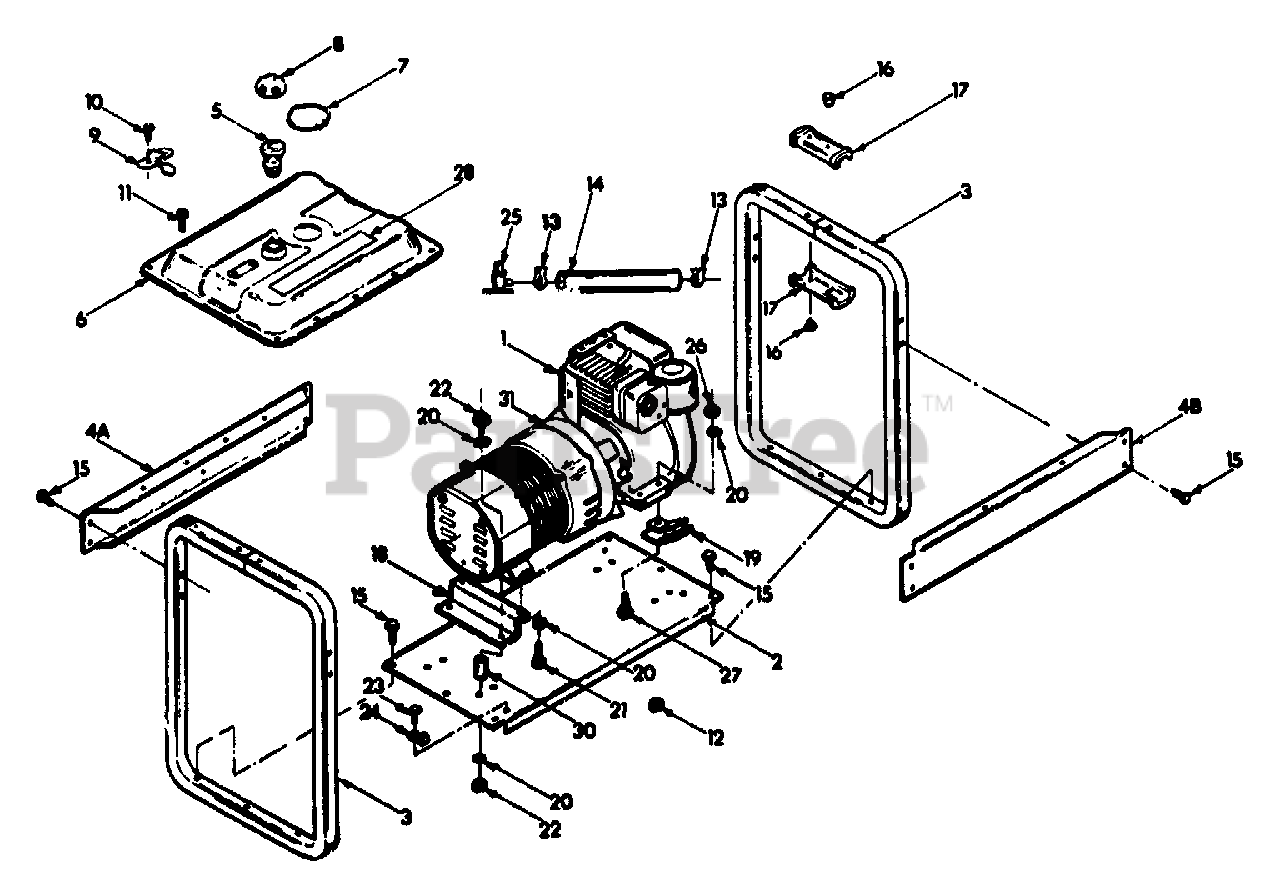

Mounting Base Parts Diagram

  • Title

1

Briggs & Stratton 68858

ENGINE- Briggs & Stratton Model 190412-3077-01

$

$

Currently unavailable

1

Briggs & Stratton 74785

ENGINE- Briggs & Stratton Model 190432-5166-01
(Superseded to 7074785YP)

$37.99

$

Usually ships in 2-12 days

0

1

Briggs & Stratton 70616

ENGINE- Briggs & Stratton Model 195432-0805-01

$

$

Currently unavailable

2

Briggs & Stratton 70643

BASE, Mounting

$

$

Currently unavailable

3

Briggs & Stratton 70603

LOOP, Cradle End

$

$

Currently unavailable

4A

Briggs & Stratton 70636

SUPPORT, Fuel Tank- LH

$

$

Currently unavailable

4B

Briggs & Stratton 70636A

SUPPORT, Fuel Tank- RH

$

$

Currently unavailable

5

Briggs & Stratton 70630

STRAINER, Fuel Fill

$

$

Currently unavailable

6

Briggs & Stratton 73715

FUEL TANK- 4.5 U.S. Gallons
(Superseded to 7073715YP)

$

$

Not available

7

Briggs & Stratton 64680B

COVER, Spark Plug Access
(Superseded to 64680BGS)

$7.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 69658

CAP, Fuel Tank

$

$

Currently unavailable

9

Briggs & Stratton 86391B

GAUGE, Fuel Level

$

$

Currently unavailable

10

Briggs & Stratton 52749

SCREW-M5-0.80 x 12mm

$

$

Currently unavailable

11

Briggs & Stratton 56892

SCREW (Crimptite) No. 10-32 x 3/8"
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 52858

NUT, Hex - M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 3 left!

0

13

Briggs & Stratton 48031C

CLAMP, Fuel Hose- 1/4"

$

$

Not available

14

Briggs & Stratton 47662AE

HOSE, Fuel- 1/4" ID x 12"

$

$

Currently unavailable

15

Briggs & Stratton 58443

SCREW (Crimptite) 1/4"-20 x 5/8"
(Superseded to 58443GS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66831

RIVET- 4mm

$

$

Not available

17

Briggs & Stratton 66450

HANDLE, Plastic

$

$

Not available

18

Briggs & Stratton 73078

SUPPORT, Generator

$

$

Currently unavailable

19

Briggs & Stratton 70642

MOUNT, Vibration
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

20

Briggs & Stratton 22129

LOCKWASHER- 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 39253

CAPSCREW, Hex Head M8 x 20mm
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 22142

SCREW, Hex Head 5/16"-18 x 3/4"
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 24489

SCREW (Taptite)-No. 10-32 x 3/8"

$

$

Currently unavailable

24

Briggs & Stratton 25433

LUG, Grounding

$

$

Not available

25

Briggs & Stratton 27734

VALVE, Fuel Shutoff
(Superseded to 27734GS)

$11.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 22259

NUT, Hex - 5/16"-18
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 70653

SCREW, Pan Head 5/16"-18 x 1-1/2"
(Superseded to 70653GS)

$6.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 70687

DECAL- "Caution!"

$

$

Currently unavailable

30

Briggs & Stratton 44624

MOUNT, Vibration

$

$

Not available

31

Briggs & Stratton 68342

SPACER, Engine

$

$

Currently unavailable
