L4002 (8915-1) - Generac 4,000 Watt Portable Generator Receptacle Panel Parts Diagram

4,000 Watt Portable Generator

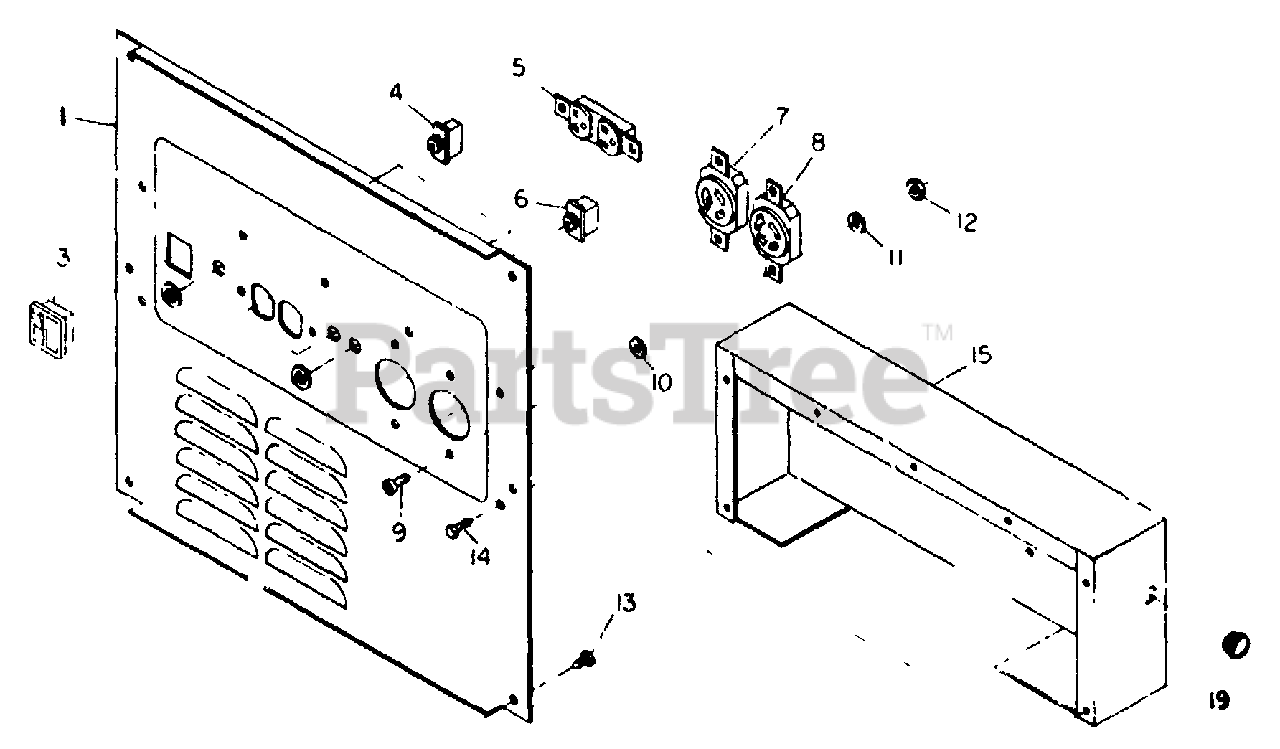

Receptacle Panel Parts Diagram

  • Title

1

Briggs & Stratton 68866A

PANEL, Receptacle (Silkscreened)

Note: L4000

$

$

Currently unavailable

1

Briggs & Stratton 68866G

PANEL, Receptacle (Silkscreened)

Note: L4001

$

$

Currently unavailable

1

Briggs & Stratton 68866K

PANEL, Receptacle (Silkscreened)

Note: L4002

$

$

Currently unavailable

3

Briggs & Stratton 66817

ASSEMBLY, Egine Switch and a-c Power Indicator
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66819

BREAKER, Circuit-20 amp

$

$

Currently unavailable

5

Briggs & Stratton 68759

RECEPTACLE- 120 volts, 20 amp "Duplex"
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

6

Briggs & Stratton 60824

BREAKER, Circuit - 30 amp

$

$

Not available

7

Briggs & Stratton 68868

RECEPTACLE- 120 volts, 30 amp
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 68867

RECEPTACLE- 120/240 volts, 20 amp
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 36917

SCREW - No. 8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 23365

WASHER, Serrated- No. 8
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 22264

WASHER, Lock- No. 8

$

$

Not available

12

Briggs & Stratton 22471

NUT, Hex - No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 69254

SCREW (Crimptite)- 1/4"-20 x 1/2"

$

$

Currently unavailable

14

Briggs & Stratton 63036

SCREW (Crimptite)- No. 8-18 x 1/4"
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 68746

PANEL, Back

$

$

Currently unavailable

19

Briggs & Stratton 65511

BUTTON, Plug- 1/2"

$

$

Currently unavailable

Briggs & Stratton 37806

PLUG, Connector- 120 volts, 30 amp
(Superseded to 100523GS)

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43483

PLUG, Connector- 120/240 volts, 20 amp
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0
