L4003 (9063-0) - Generac 4,000 Watt Portable Generator Generator Parts Diagram

4,000 Watt Portable Generator

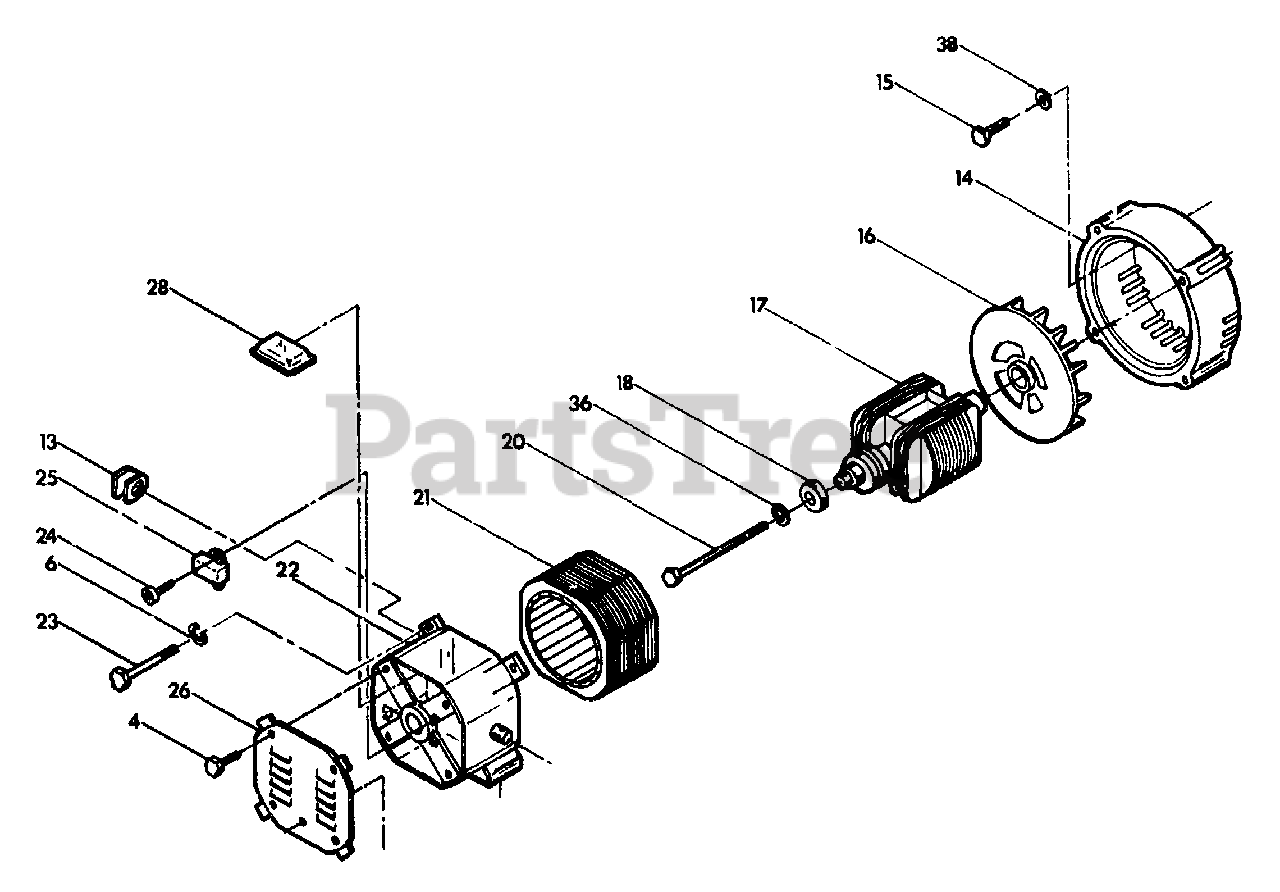

Generator Parts Diagram

  • Title

4

66848b

SCREW (Taptite)- M5-0.80 x 6mm

$

$

Not available

6

Briggs & Stratton 22097

LOCKWASHER- 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 67022

GROMMET, Lead Outlet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 66365D

HOUSING, Engine Adapter
(Superseded to 66365DGS)

$70.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 23541

CAPSCREW, Hex Head 5/16"-18 x 2-1/2"

$

$

Currently unavailable

16

Briggs & Stratton 66389

FAN, Cooling

$

$

Not available

17

Briggs & Stratton 70423

ROTOR ASSY

$

$

Currently unavailable

18

Briggs & Stratton 65791

BEARING, Ball
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 73068

BOLT, Rotor
(Superseded to 73068GS)

$29.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 72087A

STATOR ASSY

$

$

Currently unavailable

22

Briggs & Stratton 66825

CARRIER, Rear Bearing

$

$

Currently unavailable

23

Briggs & Stratton 66449F

BOLT, Stator

$

$

Not available

24

Briggs & Stratton 66849

SCREW (Taptite) - M5-0.80 x 16mm
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 66386

HOLDER, Brush
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 67025

COVER, Bearing Carrier

$

$

Currently unavailable

28

Briggs & Stratton 66850

BOARD, Bridge Rectifier
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 67451

FLATWASHER (Special) - M8

$

$

Currently unavailable

38

Briggs & Stratton 22129

LOCKWASHER - M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

38

Briggs & Stratton 68342

SPACER, Engine

$

$

Currently unavailable

38

Briggs & Stratton 74788

MANUAL, Owner's
(Superseded to 74788GS)

$14.99

$

Usually ships in 2-12 days

0
