L4004 (9159-0) - Generac 4,000 Watt Portable Generator Generator Parts Diagram

4,000 Watt Portable Generator

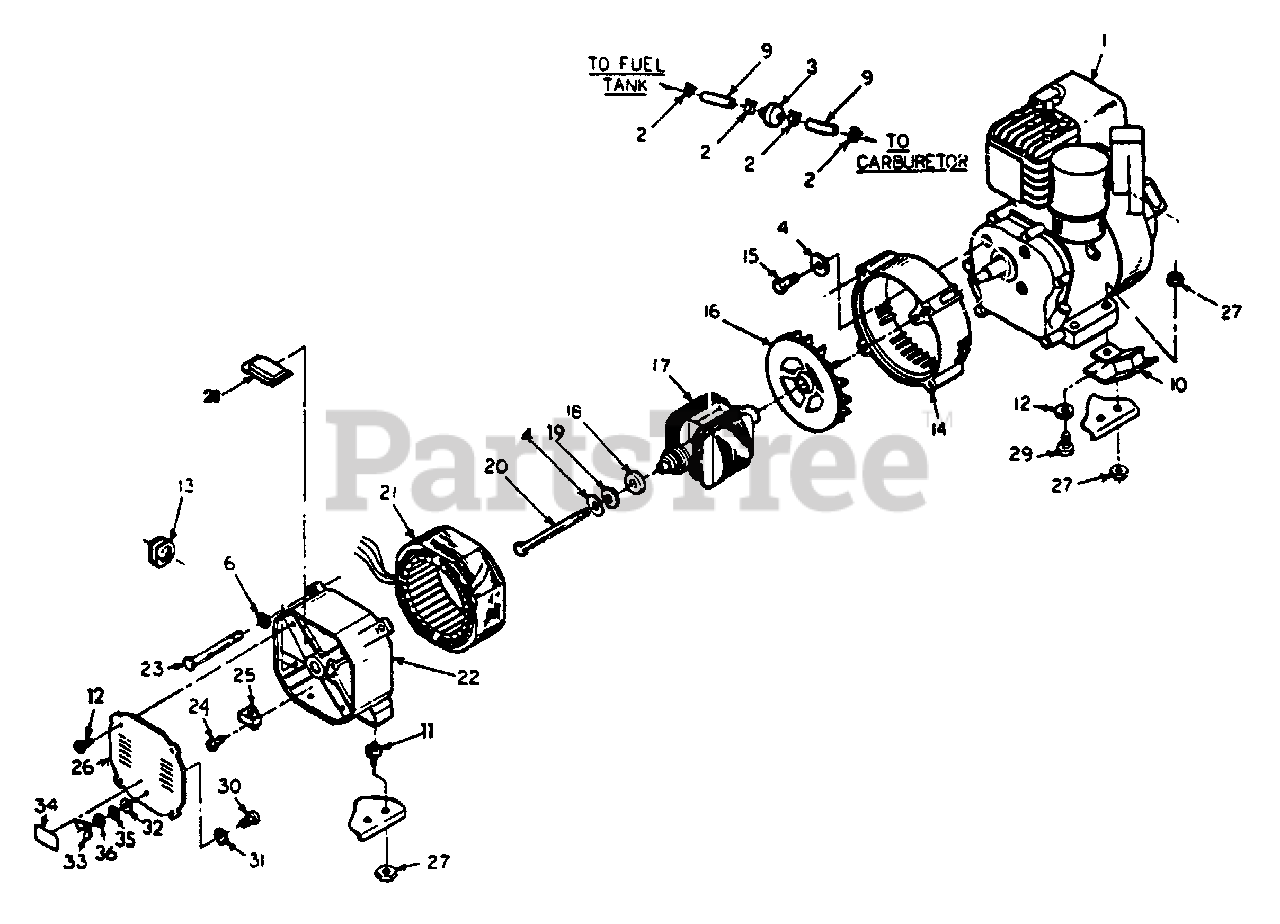

Generator Parts Diagram

  • Title

1

Briggs & Stratton 77024

7.5 HP Kawasaki Engine (FG300-DXS)

$

$

Currently unavailable

2

Briggs & Stratton 66836

Fuel Line Clamp

$

$

Currently unavailable

3

Briggs & Stratton 68740

Fuel Filter
(Superseded to 68740GS)

$11.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 22129

Lock Washer - M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 22097

Lock Washer - M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 77363

Fuel Line - 4mm ID x 80mm

$

$

Currently unavailable

10

Briggs & Stratton 70642

Vibration Mount -- 45ø
(Superseded to 70642GS)

$31.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 66443D

Vibration Mount
(Superseded to 66443DGS)

$19.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 74908

Screw, M5-0.80 x 10mm
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 67022

Wire Outlet Grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 66365C

Engine Adaptor Housing

$

$

Currently unavailable

15

Briggs & Stratton 39253

Capscrew, M8-1.25 x 20mm
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66389

Cooling Fan

$

$

Not available

17

Briggs & Stratton 77350

Rotor Assembly
(Superseded to 7077350YP)

$70.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 65791

Ball Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 67451

Flat Washer, M8

$

$

Currently unavailable

20

Briggs & Stratton 66448E

Rotor Bolt M8-1.25 x 235mm

$

$

Currently unavailable

21

Briggs & Stratton 77354

Stator Assembly

$

$

Currently unavailable

22

Briggs & Stratton 68825

Rear Bearing Carrier

$

$

Currently unavailable

23

Briggs & Stratton 66449D

Stator Bolt M6 - 1.00 x 130mm

$

$

Currently unavailable

24

Briggs & Stratton 66849

Screw, M5-0.80 x 16mm
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 66386

Brush
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 67025

Bearing Carrier Cover

$

$

Currently unavailable

27

Briggs & Stratton 52858

Nut - M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 66850

Rectifier Bridge
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 70629

Screw - M8-1.25 x 40mm

$

$

Currently unavailable

30

Briggs & Stratton 52619

Screw - M5-0.80 x 20mm
(Superseded to 52619GS)

$1.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 67444

Serrated Washer - M5

$

$

Currently unavailable

32

Briggs & Stratton 51716

Nut - M5-0.80
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 67435

Wing Nut (GND) M5 - 0.80

$

$

Currently unavailable

34

Briggs & Stratton 67210

Decal, ground
(Superseded to 67210GS)

$8.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 51713

Flat Washer - M5
(Superseded to 51713GS)

$2.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 49226

Lock Washer - M
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0
