L48 KH (53AH8CTB050) - Cub Cadet 48" Tank Zero-Turn Mower, Kohler (2011) Kohler CV730-3130 Air Intake Group Parts Diagram

48" Tank Zero-Turn Mower, Kohler

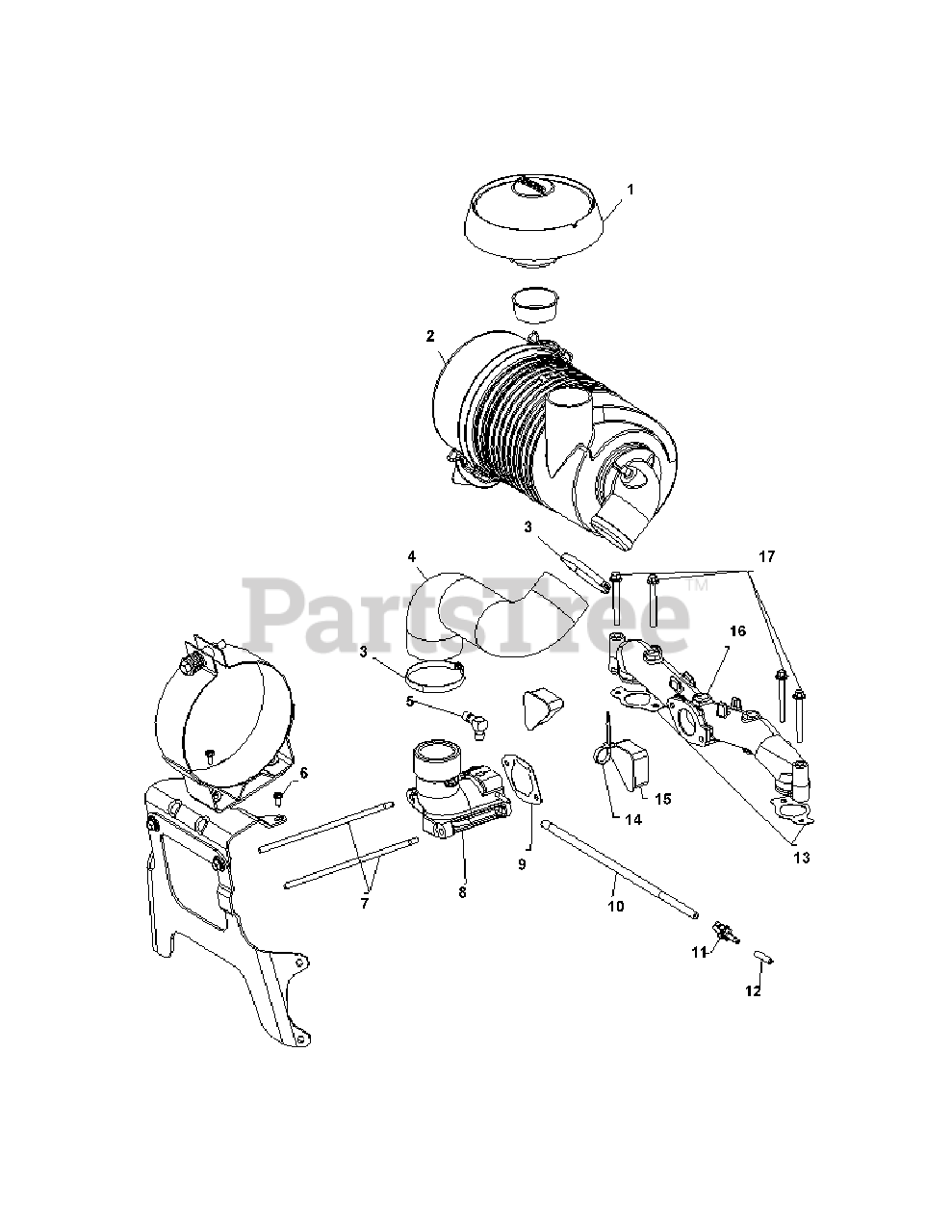

Kohler CV730-3130 Air Intake Group Parts Diagram

  • Title

1

Cub Cadet KH-25-324-04-S

Hood, Inlet

$49.99

$

In Stock, Qty 8

0

2

Cub Cadet KH-25-048-17-S

Air Cleaner

$142.99

$

In Stock, only 1 left!

0

2

Cub Cadet KH-25-083-01-S

Element, air filter-primary

Note: Outside filter, Not shown

$31.99

$

In Stock, Qty 20+

0

2

Cub Cadet KH-25-083-04-S

Element, air filter-safety

Note: Inside filter, Not shown

$31.99

$

In Stock, Qty 20+

0

2

Cub Cadet KH-25-096-08-S

Cover assembly, plastic air cleaner

Note: Not shown

$92.99

$

In Stock, only 2 left!

0

2

Cub Cadet KH-25-154-19-S

Latch Assembly

Note: 2 used, Not shown

$20.99

$

In Stock, only 3 left!

0

2

Cub Cadet KH-24-462-11-S

Valve, dust ejector

Note: Not shown

$17.99

$

In Stock, only 2 left!

0

2

Cub Cadet KH-25-139-20-S

Pipe Plug

Note: Not shown

$8.49

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-25-237-21-S

Clamp, Hose (Round Zinc-Plated)

$7.99

$

In Stock, only 4 left!

0

4

Cub Cadet KH-24-326-72-S

Hose, Air Cleaner

$19.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-25-155-38-S

Connector, Hose

$16.99

$

In Stock, Qty 5

0

6

Cub Cadet KH-25-086-91-S

Screw, Wsh Hd Tap #8-18X1/2''

$3.49

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-24-072-10-S

Stud, M6X1.0X180

$16.99

$

In Stock, Qty 16

0

8

Cub Cadet KH-24-054-38-S

Kit, Elbow

$140.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-24-041-14

Gasket, Air Cleaner Base

$

$

Not available

10

Cub Cadet KH-25-326-08-S

Hose, Evaporative, 20''
(Superseded to KH-24-326-143-S)

$5.49

$

In Stock, Qty 12

0

11

Cub Cadet KH-25-155-51-S

Connector, Evaporative

$13.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-25-173-33-S

Cap, Masking

$2.49

$

In Stock, only 1 left!

0

13

Cub Cadet KH-24-041-01

Gasket, Intake Manifold
(Superseded to KH-24-041-79-S)

$2.99

$

In Stock, Qty 9

0

14

Cub Cadet KH-25-454-04-S

Tie

$3.49

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-24-096-17-S

Cover, Blower Housing
(Superseded to KH-24-096-160-S)

$4.99

$

In Stock, Qty 6

0

16

Cub Cadet KH-24-164-06

Manifold, Intake

$

$

Not available

17

Cub Cadet KH-25-086-84-S

Screw, Flg M6X1.0X55
(Superseded to KH-25-086-766-S)

$2.49

$

Usually ships in 3-6 days

0
