L48 KH (53AH8CTB050) - Cub Cadet 48" Tank Zero-Turn Mower, Kohler (2011) Kohler CV730-3130 Fuel System Parts Diagram

48" Tank Zero-Turn Mower, Kohler

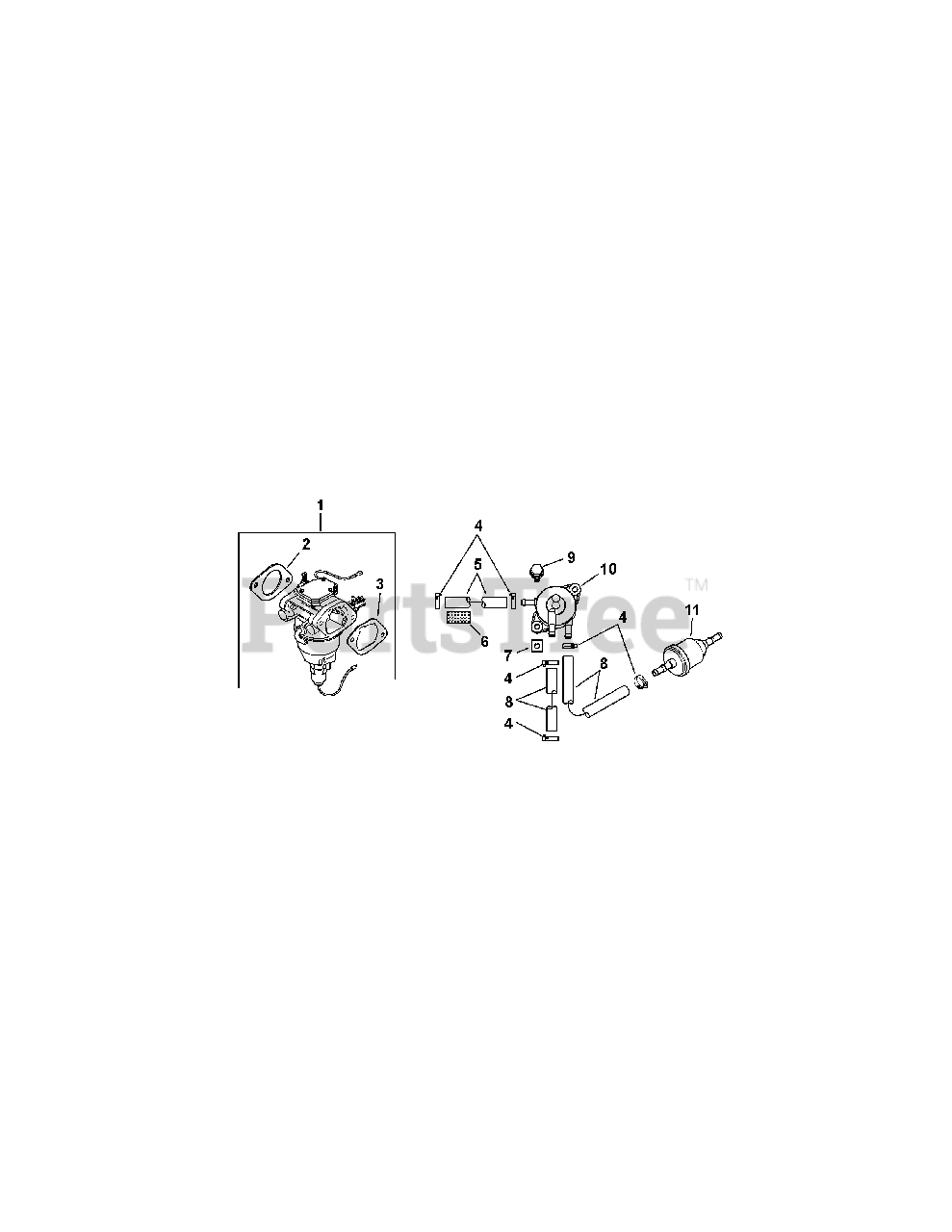

Kohler CV730-3130 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-24-853-92-S

KIT, CARBURETOR w/GASKETS (includes 2 & 3)
(Superseded to KH-24-853-317-S)

$658.99

$

Usually ships in 3-6 days

0

2

Cub Cadet KH-24-041-15

GASKET, CARBURETOR

$

$

Not available

3

Cub Cadet KH-24-041-14

GASKET, AIR CLEANER BASE

$

$

Not available

4

Cub Cadet KH-25-237-14-S

CLAMP, HOSE 1/2'
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, Qty 6

0

5

Cub Cadet KH-24-353-12

LINE, FUEL 11''

$

$

Not available

6

Cub Cadet KH-24-431-02-S

SLEEVE, INSULATING 14''

$5.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-25-100-37-S

NUT, PLASTIC - BLACK

$2.49

$

In Stock, only 3 left!

0

8

Cub Cadet KH-25-111-34-S

LINE, FUEL
(Superseded to KH-25-111-81-S)

Note: (24''-CUT TO LENGTH)

$17.99

$

In Stock, Qty 9

0

9

Cub Cadet KH-24-086-12

SCREW, TAP M6X1.7X18

$

$

Not available

10

Cub Cadet KH-24-393-16

PUMP, FUEL

$

$

Not available

11

Cub Cadet KH-24-050-13-S

FILTER, FUEL
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0
