L48 KH (53AH8CTB050) - Cub Cadet 48" Tank Zero-Turn Mower, Kohler (2011) Seat & Floor Panel Assembly (2011 & After) Parts Diagram

48" Tank Zero-Turn Mower, Kohler

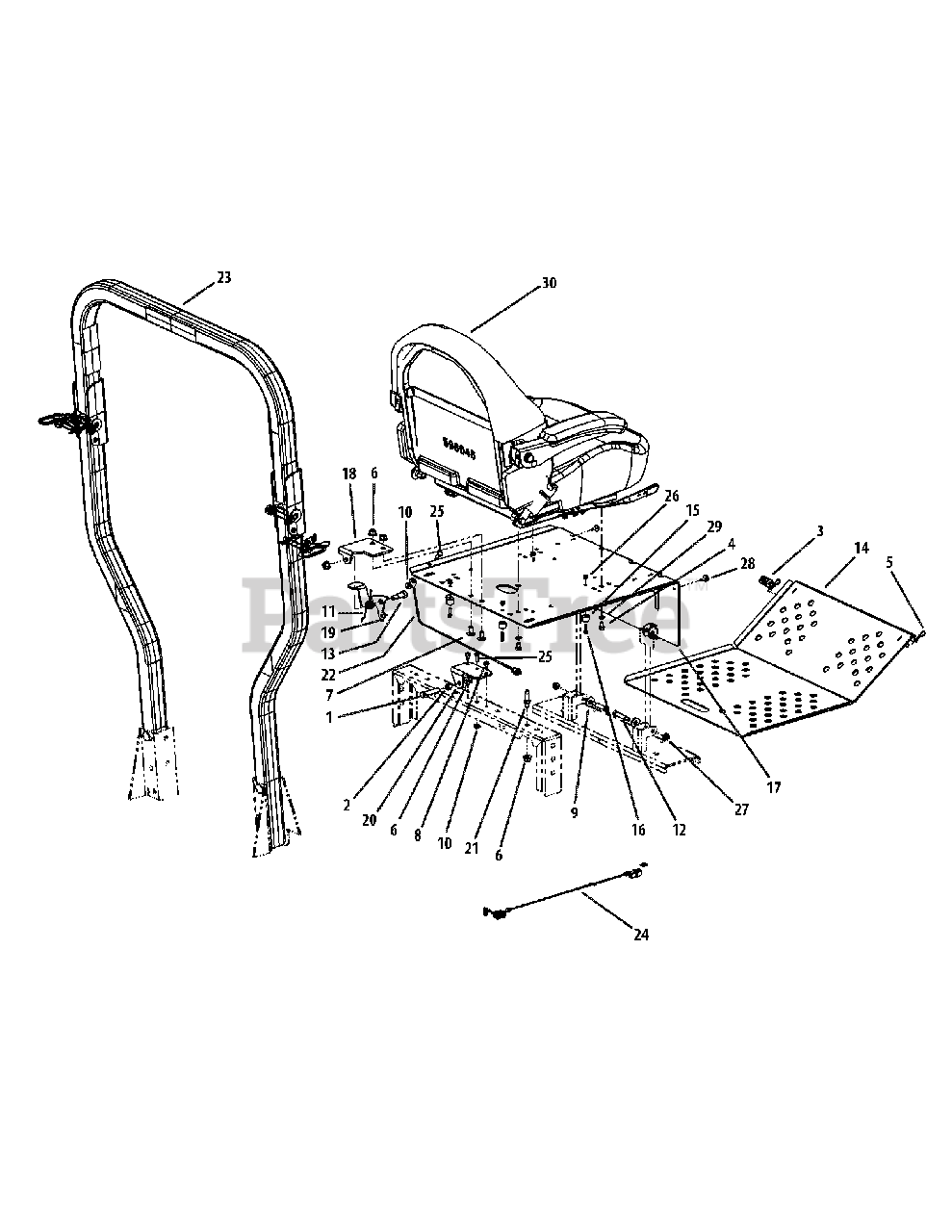

Seat & Floor Panel Assembly (2011 & After) Parts Diagram

  • Title

1

Cub Cadet 00002528

Hex Cap Screw 3/8-16 x 2.00

$7.49

$

In Stock, Qty 5

0

2

Cub Cadet 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 11

0

3

Cub Cadet 00012158

Washer

$4.99

$

In Stock, only 4 left!

0

4

Cub Cadet 00012178

Hex Cap Screw, 5/16-18 x 1/2

$

$

Not available

5

Cub Cadet 00021956

Hair Pin, 3/8-1/2
(Superseded to 914-04023)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 00022560

Flange Lock, Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 Long

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0599

Screw, TT, 1/4-20, 0.5, Hex Washer

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 912-3027

Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 01008140P

Deck Lift Spring, Left Hand

$36.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 01009459

Shoulder Bolt, .375 x 1.50

$

$

Not available

13

Cub Cadet 02002091

Shoulder Bolt, 1/2 x 3/4, 3/8-16

$

$

Not available

14

Cub Cadet 02002334-0637

Floor Panel Assembly

$

$

Not available

15

Cub Cadet 02002963

Rubber Stop with Washer
(Superseded to 735-04287)

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 02002964

Standard Cap Screw, #10-24 x .75
(Superseded to 710-04868)

$3.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 02003404-0637

Seat Plate Assembly

$223.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 02003730-0637

Seat Latch Bracket

$

$

Not available

19

Cub Cadet 02003732

Latch Lever Bracket

$

$

Not available

20

Cub Cadet 02003738-0637

Latch Bracket

$

$

Not available

21

Cub Cadet 02003745

Adjustable Stud
(Superseded to 711-05676)

$

$

Not available

22

Cub Cadet 02004062P

Cable Support

$20.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 02005081

Foldable Rops Assembly

$

$

Not available

23

Cub Cadet 02004323

Knob

$

$

Not available

23

Cub Cadet 02004324

Pin, Lock

$

$

Not available

24

Cub Cadet 629-04185

Wire Harness Adaptor

$

$

Not available

25

Cub Cadet 710-3015

Screw, Hex, Cap, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 712-0161

Nut, #10-24, Nylon Lock

$4.99

$

In Stock, Qty 16

0

27

Cub Cadet 712-04063

Nut, 5/16-18, Flangelock

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 935-0199A

Rubber Bumper, .62 OD x .22 Thick
(Superseded to 735-0199A)

$8.49

$

In Stock, Qty 18

0

29

Cub Cadet 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

30

Cub Cadet 757-04147

Seat

$1003.99

$

Usually ships in 3-6 days

0
