L54 KW (53AI2RTC050) - Cub Cadet 54" Tank Zero-Turn Mower, Kawasaki (2014) Kawasaki FX730V-S24 Carburetor Parts Diagram

54" Tank Zero-Turn Mower, Kawasaki

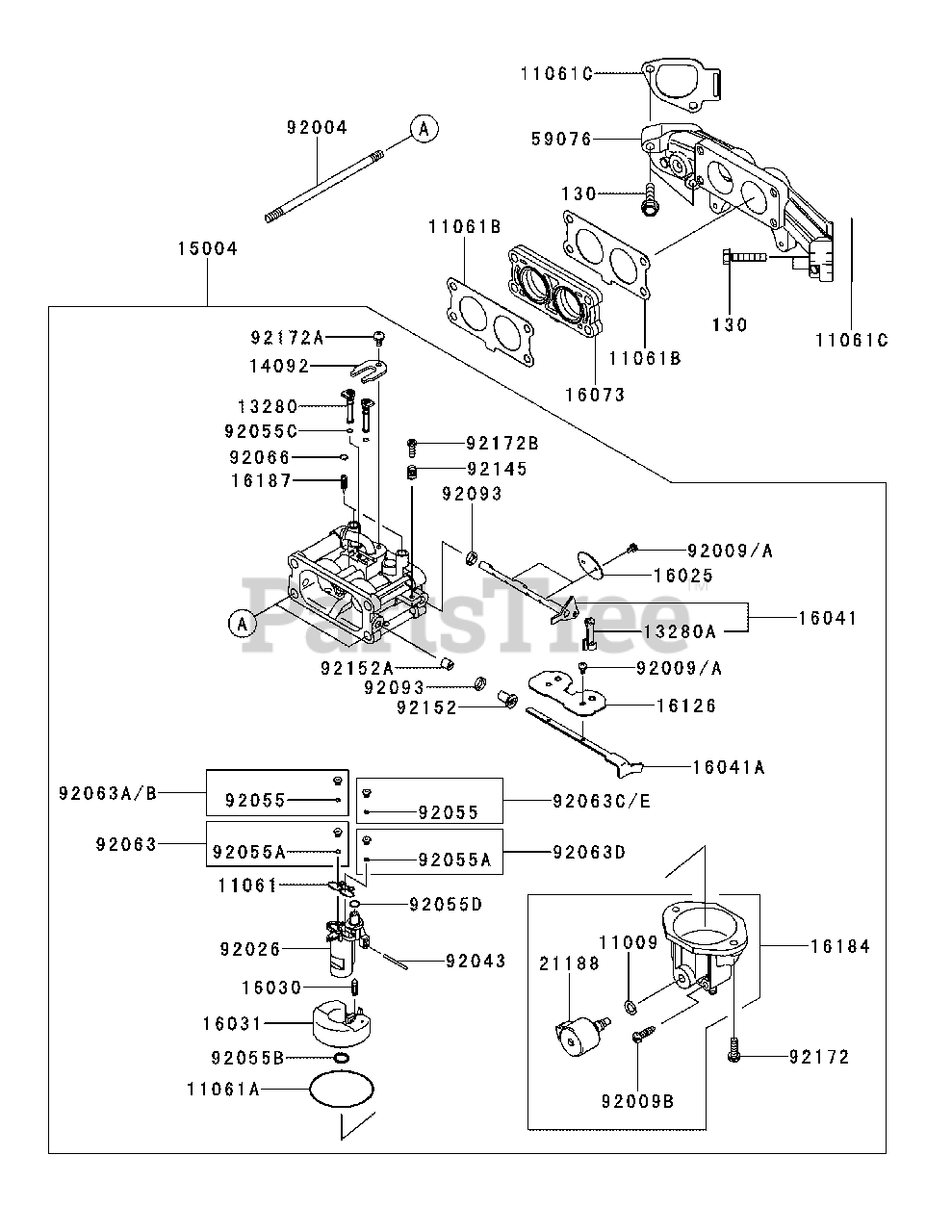

Kawasaki FX730V-S24 Carburetor Parts Diagram

  • Title

11009

Cub Cadet KM-11009-2056

GASKET,SCREW-CARBURETOR

$0.99

$

In Stock, Qty 20+

0

11061

Cub Cadet KM-11061-7037

GASKET,CARB SPACER

$6.99

$

In Stock, Qty 20+

0

11061A

Cub Cadet KM-11061-7038

GASKET,CARBURETOR

$2.49

$

In Stock, Qty 20+

0

11061B

Cub Cadet KM-11061-7092

GASKET,CARBURETOR/MANIFOLD

$1.49

$

In Stock, Qty 20+

0

11061C

Cub Cadet KM-11061-7093

GASKET,MANIFOLD

$1.99

$

In Stock, Qty 20+

0

13280

Cub Cadet KM-13280-7003

HOLDER

$13.99

$

In Stock, only 3 left!

0

13280A

Cub Cadet KM-13280-7004

HOLDER

$8.99

$

In Stock, Qty 20+

0

14092

Cub Cadet KM-14092-7001

COVER

$6.49

$

Usually ships in 2-5 days

0

15004

Cub Cadet KM-15004-7082

CARBURETOR-ASSY
(Superseded to KM-15004-1011)

$442.99

$

In Stock, only 2 left!

0

16025

Cub Cadet KM-16025-7010

VALVE-THROTTLE

$24.99

$

Usually ships in 2-5 days

0

16030

Cub Cadet KM-16030-7004

VALVE-FLOAT

$25.99

$

In Stock, Qty 8

0

16031

Cub Cadet KM-16031-7005

FLOAT

$28.99

$

Usually ships in 2-5 days

0

16041

Cub Cadet KM-16041-7052

SHAFT-CARBURETOR,THROTTLE

$39.99

$

Usually ships in 2-5 days

0

16041A

Cub Cadet KM-16041-7053

SHAFT-CARBURETOR,CHOKE

$39.99

$

Usually ships in 2-5 days

0

16073

Cub Cadet KM-16073-7012

INSULATOR
(Superseded to KM-16073-0875)

$9.99

$

In Stock, only 1 left!

0

16126

Cub Cadet KM-16126-7022

VALVE

$5.49

$

Usually ships in 2-5 days

0

16184

Cub Cadet KM-16184-7023

CHAMBER-ASSY-FLOAT

$222.99

$

In Stock, only 1 left!

0

16187

Cub Cadet KM-16187-7005

NEEDLE-JET

$12.99

$

In Stock, only 1 left!

0

21188

Cub Cadet KM-21188-7003

SOLENOID

$95.99

$

In Stock, Qty 7

0

59076

Cub Cadet KM-59076-0008

MANIFOLD-INTAKE

$131.99

$

Usually ships in 2-5 days

0

92004

Cub Cadet KM-92004-0723

BOLT-STUD,6X115

$2.99

$

In Stock, only 4 left!

0

92009

Cub Cadet KM-92009-2049

SCREW

$0.99

$

Usually ships in 2-5 days

0

92009A

Cub Cadet KM-92009-7003

SCREW

$0.99

$

In Stock, Qty 20+

0

92009B

Cub Cadet KM-92009-7006

SCREW,DRAIN

$1.49

$

In Stock, only 3 left!

0

92026

Cub Cadet KM-92026-7011

SPACER

$8.49

$

In Stock, only 1 left!

0

92043

Cub Cadet KM-92043-7016

PIN,FLOAT

$2.49

$

In Stock, only 4 left!

0

92055

Cub Cadet KM-92055-7013

RING-O

$0.99

$

In Stock, Qty 20+

0

92055A

Cub Cadet KM-92055-7013

RING-O

$0.99

$

In Stock, Qty 20+

0

92055B

Cub Cadet KM-92055-7016

RING-O

$2.49

$

In Stock, Qty 20+

0

92055C

Cub Cadet KM-92055-7023

RING-O

$6.99

$

In Stock, Qty 8

0

92055D

Cub Cadet KM-92055-7024

RING-O

$0.99

$

In Stock, Qty 20+

0

92063

Cub Cadet KM-92063-7069

JET-MAIN,#108

$30.99

$

Usually ships in 2-5 days

0

92063A

Cub Cadet KM-92063-7077

JET-MAIN,#105,3280FT

$21.99

$

In Stock, only 4 left!

0

92063B

Cub Cadet KM-92063-7078

JET-MAIN,#102,6560FT

$21.99

$

In Stock, only 1 left!

0

92063C

Cub Cadet KM-92063-7082

JET-MAIN,#104,6560FT

$30.99

$

Usually ships in 2-5 days

0

92063D

Cub Cadet KM-92063-7150

JET-MAIN,#110

$13.99

$

Usually ships in 2-5 days

0

92063E

Cub Cadet KM-92063-7152

JET-MAIN,#107,3280FT

$13.99

$

Usually ships in 2-5 days

0

92066

Cub Cadet KM-92066-7009

PLUG,EXPANSION

$7.99

$

In Stock, Qty 10

0

92093

Cub Cadet KM-92093-7002

SEAL,D=6.9

$2.49

$

In Stock, Qty 19

0

92145

Cub Cadet KM-92145-7039

SPRING

$2.99

$

In Stock, Qty 20+

0

92152

Cub Cadet KM-92152-7018

COLLAR

$3.49

$

Usually ships in 2-5 days

0

92152A

Cub Cadet KM-92152-7019

COLLAR

$2.49

$

Usually ships in 2-5 days

0

92172

Cub Cadet KM-92172-7005

SCREW,M5

$1.49

$

In Stock, Qty 5

0

92172A

Cub Cadet KM-92172-7006

SCREW,M4

$1.49

$

In Stock, only 4 left!

0

92172B

Cub Cadet KM-92172-7039

SCREW,THROTTLE ADJUST

$1.49

$

In Stock, Qty 20+

0

130

Cub Cadet KM-130AA0630

BOLT-FLANGED,6X30

$1.99

$

In Stock, Qty 6

0
