L54 KW (53AI2RTC050) - Cub Cadet 54" Tank Zero-Turn Mower, Kawasaki (2014) Kawasaki FX730V-S24 Cylinder & Crankcase Parts Diagram

54" Tank Zero-Turn Mower, Kawasaki

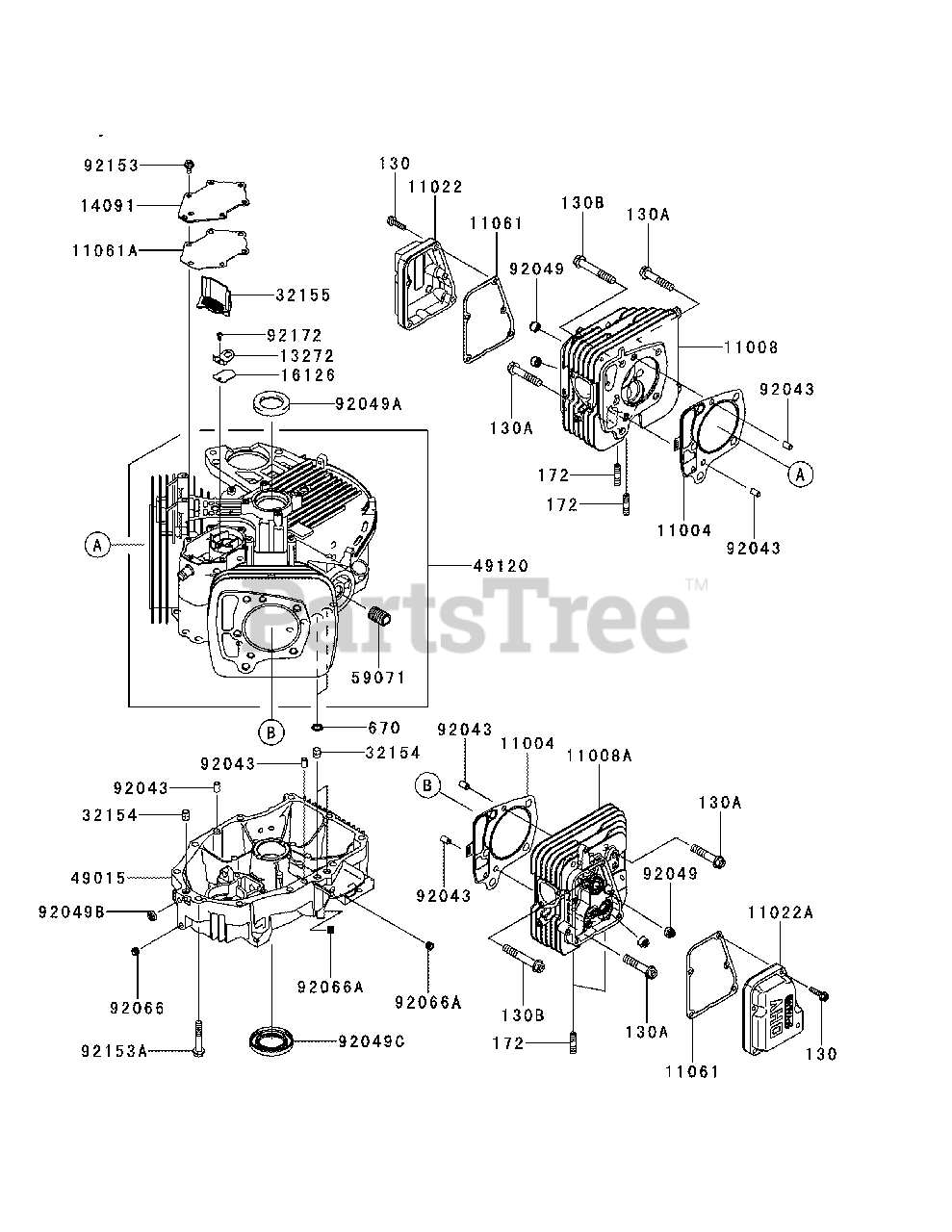

Kawasaki FX730V-S24 Cylinder & Crankcase Parts Diagram

  • Title

11004

Cub Cadet KM-11004-7026

GASKET-HEAD
(Superseded to KM-11004-0762)

$30.99

$

Usually ships in 3-6 days

0

11008

Cub Cadet KM-11008-7039

HEAD-COMP-CYLINDER,#1
(Superseded to KM-11008-0861)

$236.99

$

Usually ships in 2-5 days

0

11008A

Cub Cadet KM-11008-7040

HEAD-COMP-CYLINDER,#2
(Superseded to KM-11008-0845)

$236.99

$

In Stock, only 1 left!

0

11022

Cub Cadet KM-11022-0710

CASE-ROCKER,#1
(Superseded to KM-11022-0046)

$17.99

$

Usually ships in 2-5 days

0

11022A

Cub Cadet KM-11022-7020

CASE-ROCKER,#2

$16.99

$

Usually ships in 2-5 days

0

11061

Cub Cadet KM-11061-7083

GASKET,CASE-ROCKER
(Superseded to KM-11061-1285)

$4.49

$

In Stock, Qty 20+

0

11061A

Cub Cadet KM-11061-7094

GASKET,BREATHER

$8.99

$

In Stock, Qty 13

0

13272

Cub Cadet KM-13272-1374

PLATE

$1.99

$

In Stock, Qty 18

0

14091

Cub Cadet KM-14091-7064

COVER,BREATHER

$2.49

$

In Stock, Qty 10

0

16126

Cub Cadet KM-16126-7020

VALVE,BREATHER

$4.99

$

In Stock, Qty 19

0

32154

Cub Cadet KM-32154-7019

PIPE
(Superseded to KM-92043-0858)

$2.49

$

In Stock, Qty 17

0

32155

Cub Cadet KM-32155-7003

PIPE,BREATHER
(Superseded to KM-32155-2214)

$2.99

$

In Stock, Qty 7

0

49015

Cub Cadet KM-49015-7106

COVER-CRANKCASE
(Superseded to KM-49015-0023)

$204.99

$

Usually ships in 2-5 days

0

49120

Cub Cadet KM-49120-0733

CRANKCASE-COMP
(Superseded to KM-49120-0858)

$609.99

$

Usually ships in 2-5 days

0

59071

Cub Cadet KM-59071-7025

JOINT
(Superseded to KM-59071-0743)

$2.99

$

Usually ships in 2-5 days

0

92043

Cub Cadet KM-92043-1263

PIN

$0.99

$

In Stock, Qty 20+

0

92049

Cub Cadet KM-92049-7001

SEAL-OIL,RVC2 6X11X10.2

$8.49

$

In Stock, Qty 20+

0

92049A

Cub Cadet KM-92049-7010

SEAL-OIL,SD 35X48X8 R HS

$3.49

$

In Stock, Qty 20+

0

92049B

Cub Cadet KM-92049-7019

SEAL-OIL,SO 8X14X5 HS

$2.49

$

In Stock, Qty 20+

0

92049C

Cub Cadet KM-92049-7028

SEAL-OIL,38X62X8MTCLV

$14.99

$

In Stock, Qty 18

0

92066

Cub Cadet KM-92066-0761

PLUG
(Superseded to KM-92066-0880)

$3.99

$

In Stock, only 2 left!

0

92066A

Cub Cadet KM-92066-0762

PLUG
(Superseded to KM-92066-0881)

$4.49

$

In Stock, Qty 11

0

92104

Cub Cadet KM-92104-7001

GASKET-LIQUID,TB1217H
(Superseded to KM-92104-0007)

$51.99

$

In Stock, Qty 5

0

92153

Cub Cadet KM-92153-7043

BOLT,6X12
(Superseded to KM-92154-2938)

$0.99

$

In Stock, Qty 10

0

92153A

Cub Cadet KM-92153-7054

BOLT,8X50

$2.99

$

In Stock, Qty 9

0

92172

Cub Cadet KM-92172-0870

SCREW,4X8

$0.99

$

In Stock, Qty 5

0

130

Cub Cadet KM-130AA0625

BOLT-FLANGED,6X25

$0.99

$

In Stock, Qty 10

0

130A

Cub Cadet KM-130CA1050

BOLT-FLANGED,10X50

$4.49

$

Usually ships in 2-5 days

0

130B

Cub Cadet KM-130CA1065

BOLT-FLANGED,10X65

$2.99

$

Usually ships in 2-5 days

0

172

Cub Cadet KM-172BA0822

BOLT-STUD,8X22

$2.49

$

In Stock, Qty 20+

0

670

Cub Cadet KM-670B2011

O RING,11MM

$1.49

$

Usually ships in 2-5 days

0
