L7500E (8992-0) - Generac 7,500 Watt Portable Generator Mounting Base Parts Diagram

7,500 Watt Portable Generator

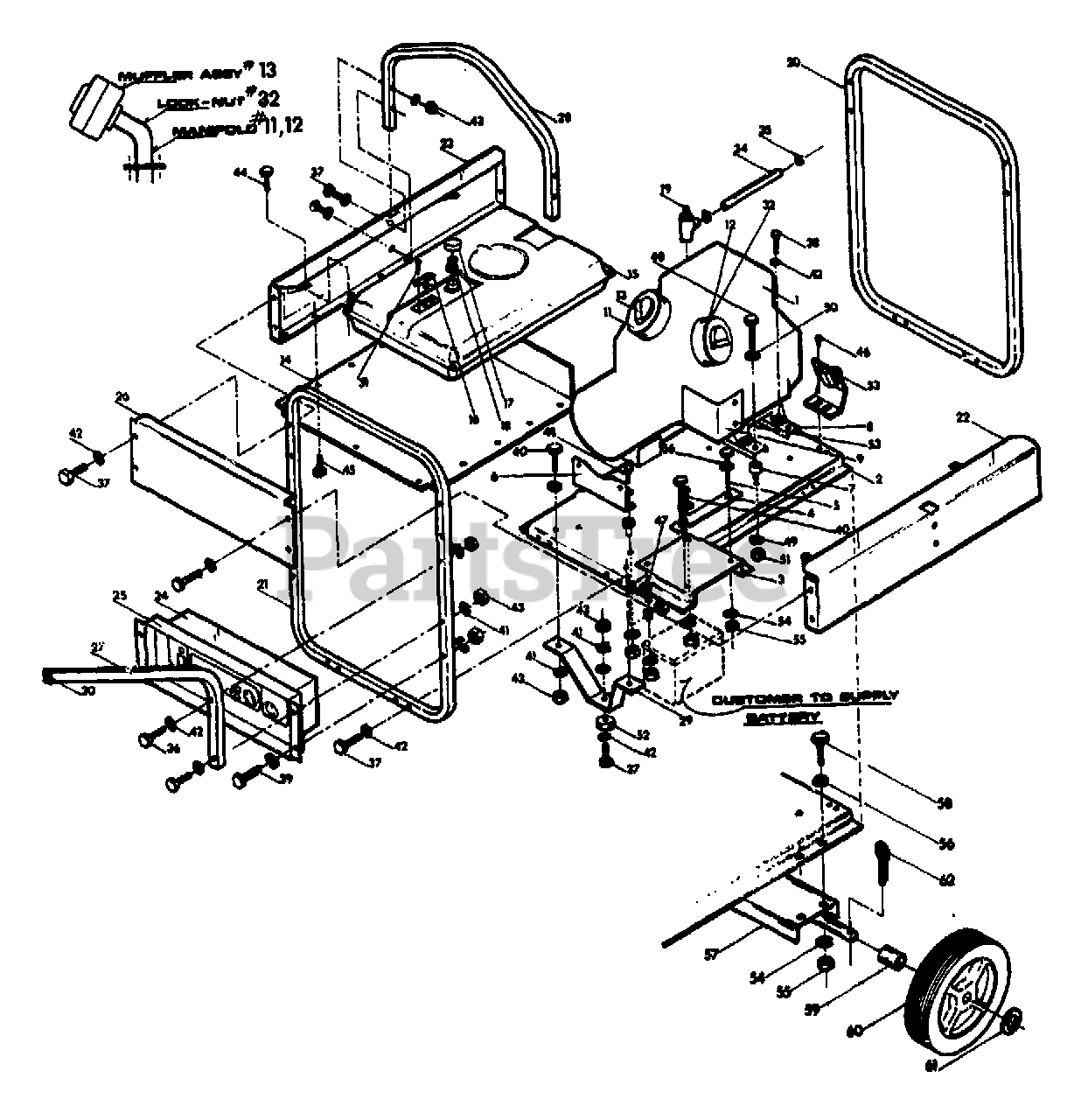

Mounting Base Parts Diagram

  • Title

1

Briggs & Stratton 70784

ENGINE- Briggs & Stratton 18 HP

$

$

Currently unavailable

2

Briggs & Stratton 70702

CRADLE, Mounting Base

$

$

Currently unavailable

3

Briggs & Stratton 69528

TRAY, Battery

$

$

Currently unavailable

4

Briggs & Stratton 44951

BRACKET, Battery Tiedown

$

$

Currently unavailable

5

Briggs & Stratton 45000

SCREW, Hex Head Machine- 1/4"-20 x 7"
(Superseded to 45000GS)

$11.99

$

Usually ships in 2-12 days

0

6

BRACKET, Generator Mounting (Rear)

$

$

Not available

7

Briggs & Stratton 38353

MOUNT, Rubber (#50 Duro)
(Superseded to 38353GS)

$39.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 71793

BAR, Spreader- Engine Mounting

$

$

Currently unavailable

9

Briggs & Stratton 71792

SHROUD, Engine

$

$

Currently unavailable

11

Briggs & Stratton 71864

ADAPTER, Muffler

$

$

Currently unavailable

12

Briggs & Stratton 71865

ADAPTER, Muffler

$

$

Currently unavailable

13

Briggs & Stratton 56162

MUFFLER

$

$

Currently unavailable

14

Briggs & Stratton 71867

BAFFLE, Fuel Tank

$

$

Currently unavailable

15

Briggs & Stratton 69662

TANK, Fuel

$

$

Currently unavailable

16

Briggs & Stratton 68391B

GAUGE, Fuel Level

$

$

Currently unavailable

17

Briggs & Stratton 69658

CAP, Fuel

$

$

Currently unavailable

18

Briggs & Stratton 70630

STRAINER, Fuel Inlet

$

$

Currently unavailable

19

Briggs & Stratton 27734

VALVE, Fuel Shutoff
(Superseded to 27734GS)

$11.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 70703

CRADLE, End Loop

$

$

Currently unavailable

21

Briggs & Stratton 70704

CRADLE, End Loop

$

$

Currently unavailable

22

Briggs & Stratton 70706

SUPPORT, Fuel Tank- RH

$

$

Currently unavailable

23

Briggs & Stratton 70706A

SUPPORT, Fuel Tank- LH

$

$

Currently unavailable

24

Briggs & Stratton 71871

BACK, Panel

$

$

Currently unavailable

25

Briggs & Stratton 71374

PANEL, Receptacle and Control

$

$

Currently unavailable

26

PANEL, Cradle End

$

$

Not available

27

Briggs & Stratton 69628

HANDLE, Transport

$

$

Currently unavailable

28

Briggs & Stratton 70708

EYE, Lifting

$

$

Currently unavailable

29

Briggs & Stratton 45131

LEG, Mounting

$

$

Not available

30

Briggs & Stratton 46476

CAP PLUG
(Superseded to 46476GS)

$2.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 52749

SCREW- M5-0.80 x 12mm

$

$

Currently unavailable

32

Briggs & Stratton 26772

NUT, Pipe Lock- 1"
(Superseded to 26772GS)

$5.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 69531

CONTRACTOR, Starter

$

$

Currently unavailable

34

Briggs & Stratton 30340

HOSE, Fuel- 1/4" ID

$3155.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 48031C

CLAMP, Hose

$

$

Not available

36

Briggs & Stratton 22532

CAPSCREW, Hex Head- 5/16"-18 x 2-1/2"

$

$

Currently unavailable

37

Briggs & Stratton 22531

CAPSCREW, Hex Head- 5/16"-18 x 1-3/4"
(Superseded to 5022531)

$19.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 22128

CAPSCREW, Hex Head- 5/16"-16 x 1-1/4"

$

$

Currently unavailable

39

Briggs & Stratton 22283

CAPSCREW, Hex Head- 5/16"-18 x 1-1/2"
(Superseded to 22283GS)

$1.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 22125

CAPSCREW, Hex Head- 6/16"-18 x 1"

$

$

Currently unavailable

41

Briggs & Stratton 22129

WASHER, Lock- 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

42

Briggs & Stratton 22145

WASHER, Flat- 5/16"

$

$

Not available

43

Briggs & Stratton 69673J

NUT, Flanged Lock- 5/16"-18

$

$

Currently unavailable

44

Briggs & Stratton 33590

SCREW, Pan Head Machine- No. 10-32 x 1/2"

$

$

Currently unavailable

45

Briggs & Stratton 56443

SCREW (Crimptite)- 1/4"-20 x 5/8"

$

$

Currently unavailable

46

Briggs & Stratton 58442

SCREW (Crimptite)- 1/4"20 x 1/2"

$

$

Currently unavailable

47

Briggs & Stratton 22143

CAPSCREW, Hex Head- 1/4"-20 x 1"
(Superseded to 5022143)

$7.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 22435

CAPSCREW, Hex Head- 3/8"-18 x 2-1/2"
(Superseded to 5022435)

$154.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 22237

WASHER, Lock- 3/8"

$

$

Not available

50

Briggs & Stratton 22131

WASHER, Flat- 3/8"
(Superseded to 22131GS)

$2.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 22241

NUT, Hex - 3/8"-16

$

$

Not available

52

Briggs & Stratton 27007

MOUNT, Vibration
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 7

0

53

Briggs & Stratton 64528

SCREW, Self Tapping- No. 6-32 x 3/8"

$

$

Currently unavailable

54

Briggs & Stratton 22097

WASHER, Lock- 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 22127

NUT, Hex - 1/4"-20

$

$

Not available

56

22473

WASHER, Flat- 1/4"

$

$

Not available

57

Briggs & Stratton 69526

AXLE ASSEMBLY

$

$

Currently unavailable

58

Briggs & Stratton 52107

CAPSCREW- 1/4"-20 x 1-1/4"

$

$

Currently unavailable

59

Briggs & Stratton 45193B

SPACER, Axis

$

$

Currently unavailable

60

Briggs & Stratton 52555

WHEEL ASSY
(Superseded to 7600147YP)

$122.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 45900

WASHER, Flat- 3/4"

$

$

Currently unavailable

62

Briggs & Stratton 22268

PIN, Cotter- 3/32"
(Superseded to 22268GS)

$3.99

$

Usually ships in 2-12 days

0
