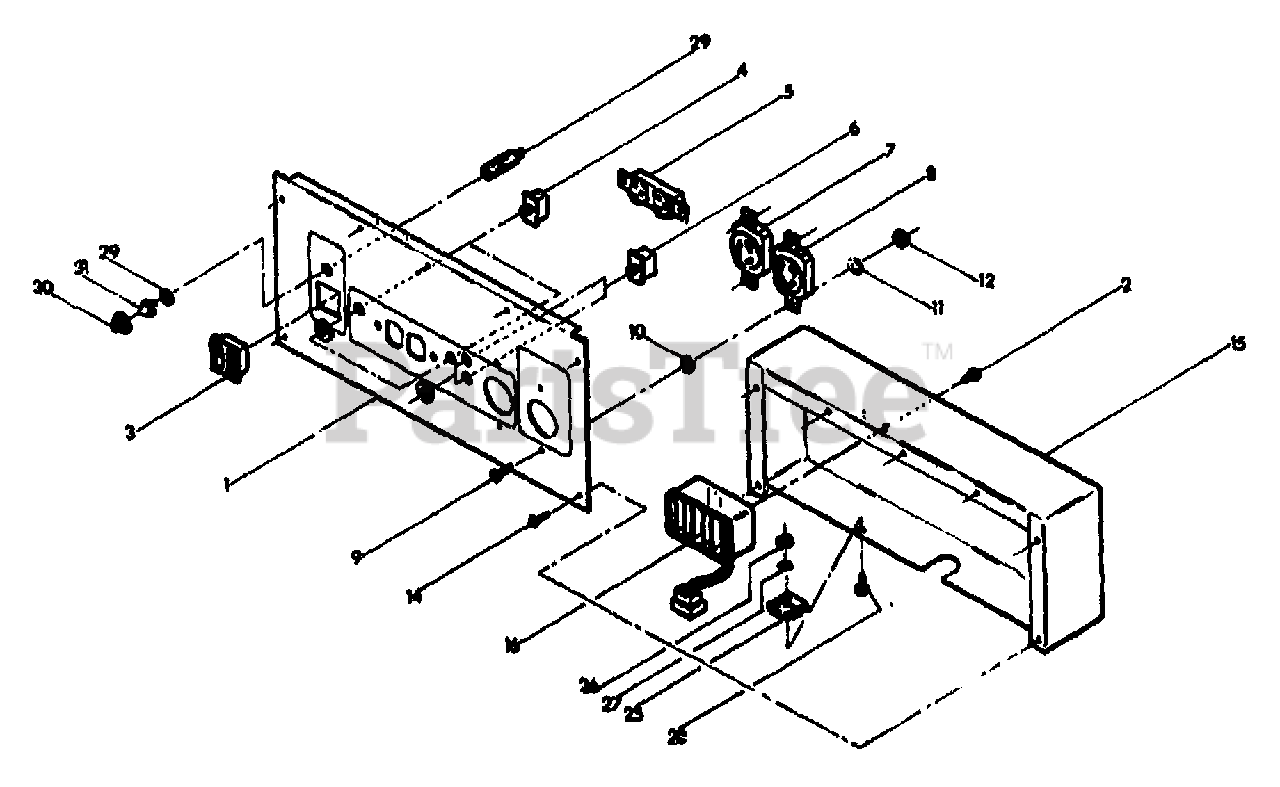

L7500E (8992-0) - Generac 7,500 Watt Portable Generator Receptacle Panel Parts Diagram

7,500 Watt Portable Generator

Receptacle Panel Parts Diagram

  • Title

1

Briggs & Stratton 71373

PANEL,Receptacle

$

$

Currently unavailable

2

Briggs & Stratton 38045

SCREW (Whiz)- No. 10-32 x 3/8"

$

$

Currently unavailable

3

Briggs & Stratton 66817

SWITCH AND LAMP ASSEMBLY
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66819

BREAKER,Circuit- 20 ampere

$

$

Currently unavailable

5

Briggs & Stratton 68759

RECEPTACLE- 120 volts, 20 ampere (Duplex)
(Superseded to 68759GS)

$24.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 71868

BREAKER,Circuit- 35 amp
(Superseded to 71868GS)

$56.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 68868

RECEPTACLE- 120 volts, 30 ampere
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 43437

RECEPTACLE- 120/240 volts, 30 ampere

$

$

Not available

9

Briggs & Stratton 36917

SCREW- No. 8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 23365

WASHER,Serrated- No. 8
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 22264

WASHER,Lock- No. 8

$

$

Not available

12

Briggs & Stratton 22471

NUT,Hex - No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 63036

SCREW (Crimptite)- No. 8-18 x 1/4"
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 68746D

BACK, Panel

$

$

Currently unavailable

16

Briggs & Stratton 60988

REGULATOR, Voltage

$

$

Currently unavailable

25

Briggs & Stratton 65795

RECTIFIER, Battery Charge
(Superseded to 65795GS)

$

$

Not available

26

Briggs & Stratton 22158

NUT, Hex - No. 10-32
(Superseded to 5022158)

$30.99

$

In Stock, Qty 5

0

27

Briggs & Stratton 22152

WASHER, Lock- No. 10
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 36935

SCREW- No. 10-32 x 3/4"

$

$

Not available

29

Briggs & Stratton 57514

HOLDER, Lamp

$

$

Currently unavailable

30

Briggs & Stratton 57327

LENS-Red
(Superseded to 7060635YP)

$110.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 30744

LAMP

$1032.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43438

PLUG, Connector- 120/240 volts, 30 ampere
(Superseded to 43438GS)

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 37808

PLUG, Connector- 120 volts, 30 ampere

$

$

Not available
