LA (990007) - Simplicity Two-Wheeled Tractor, 2hp Tractor Group - Parts List (3572I01) Parts Diagram

Two-Wheeled Tractor, 2hp

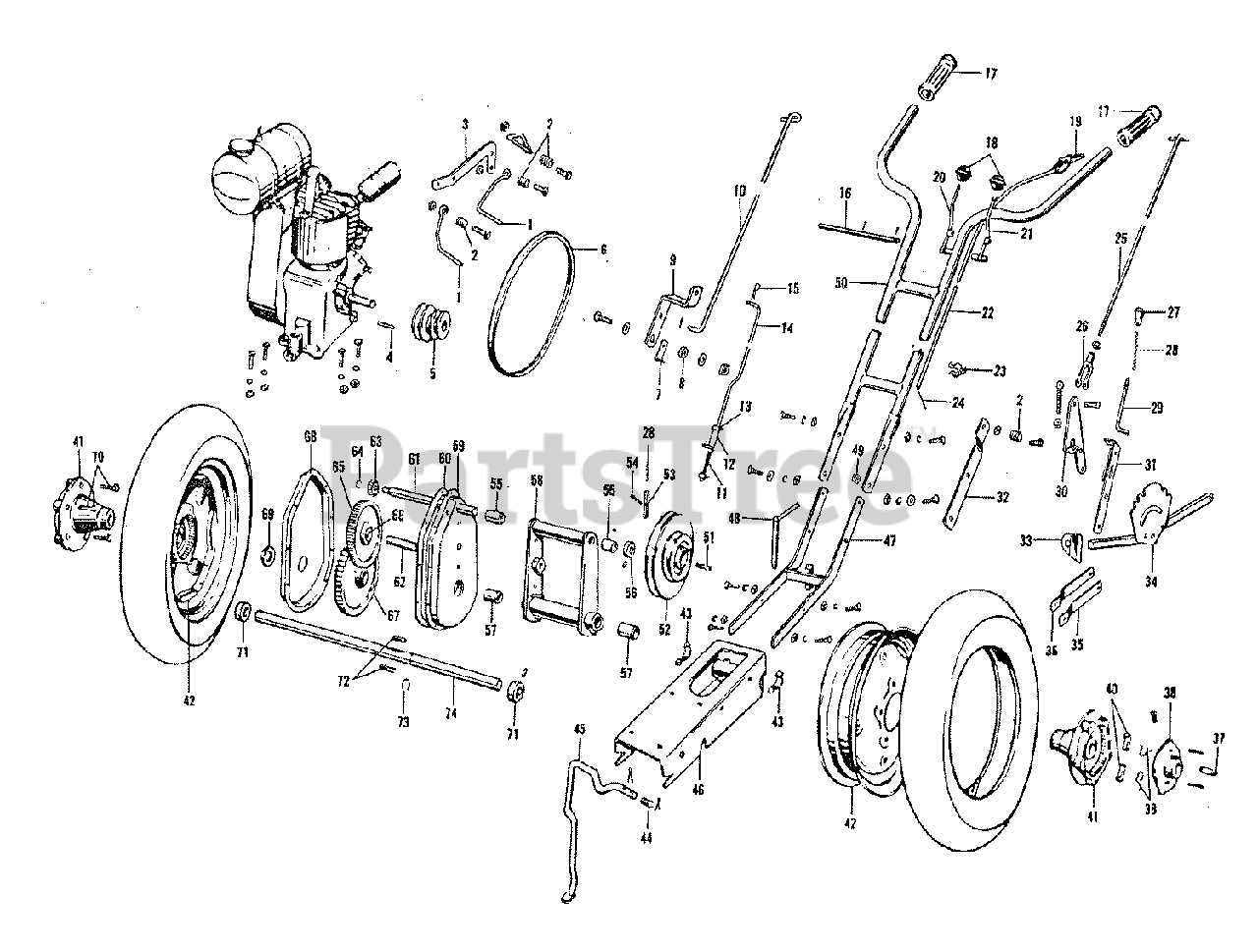

Tractor Group - Parts List (3572I01) Parts Diagram

  • Title

1

Simplicity 8021014

BELT STOP

$

$

Not available

2

Simplicity 1729278SM

SPRING

$2.49

$

Usually ships in 2-12 days

0

3

Simplicity 8121048

BELT STOP HOLDER

$

$

Not available

4

Simplicity 1729279SM

ENGINE PULLEY KEY
(Superseded to 703889)

$4.49

$

In Stock, only 4 left!

0

5

Simplicity 8021123

ENGINE PULLEY

$

$

Not available

6

Simplicity 8161083

BELT, 43" O. CIR. V-Type

$

$

Not available

7

Simplicity 8021121

STOP, Lever

$

$

Not available

8

Simplicity 1663752SM

BUSHING

$5.99

$

In Stock, only 4 left!

0

9

Simplicity 8021091

LEVER, Lower Clutch

$

$

Not available

10

Simplicity 8021122

ROD, Upper Idler

$

$

Not available

11

Simplicity 1729277SM

SPRING

$6.99

$

Usually ships in 2-12 days

0

12

Simplicity 8161518

ROD SOCKET ASSEMBLY

$

$

Not available

13

Simplicity 1729276SM

SET COLLAR

$

$

Not available

14

Simplicity 8061090

ROD, Lower Idler

$

$

Not available

15

Simplicity 1918196SM

CLIP, Spring
(Superseded to 5025210YP)

$3.99

$

In Stock, only 1 left!

0

16

Simplicity 8021118

SHAFT, Lever

$

$

Not available

17

Simplicity 8021076

RUBBER GRIP

$

$

Not available

18

Simplicity 1729255SM

CLUTCH LEVER BALL

$12.99

$

In Stock, only 1 left!

0

19

Simplicity 8061087

THROTTLE CONTROL LEVER ASSEMBLY

$

$

Not available

20

Simplicity 8021507

R. CLUTCH LEVER ASSEMBLY

$

$

Not available

21

Simplicity 8021506

L. CLUTCH LEVER ASSEMBLY

$

$

Not available

22

Simplicity 8021095

THROTTLE CABLE

$

$

Not available

23

Simplicity 80611-08

CABLE CLIP

$

$

Not available

24

Simplicity 152016

WIRE, Throttle

$

$

Not available

25

Simplicity 8022034

ROD, Clutch

$

$

Not available

26

Simplicity 8221104

END, Rod

$

$

Not available

27

Simplicity 8021051

KNOB, Plunger

$

$

Not available

28

Simplicity 8021047

TRANSMISSION PULLEY AND PLUNGER SPRING

$

$

Not available

29

Simplicity 8021041

PLUNGER

$

$

Not available

30

Simplicity 8021114

LEVER, Lower Clutch

$

$

Not available

31

Simplicity 8021506

SHIFT LEVER ASSEMBLY

$

$

Not available

32

Simplicity 8021110

FRAME EXTENSION

$

$

Not available

33

Simplicity 8021109

GUIDE, Shaft

$

$

Not available

34

Simplicity 8022511

THROW-OUT ASSEMBLY

$

$

Not available

35

Simplicity 8021112

THROW-OUT LINK

$

$

Not available

36

Simplicity 8021113

TAPPED THRO-OUT LINK

$

$

Not available

37

Simplicity 8021078

KEY, For Ratchet Cage

$

$

Not available

38

Simplicity 8021063

CAGE, Ratchet

$

$

Not available

39

Simplicity 150003

SPRING, Ratchet

$

$

Not available

40

Simplicity 8021061

DOG, Ratchet

$

$

Not available

41

Simplicity 8022021

HUB, Wheel

$

$

Not available

42

Simplicity 8262024

DRIVE WHEEL 4" RIM

$

$

Not available

43

Simplicity 8021103

CLAMP, Bearing

$

$

Not available

44

Simplicity 2152006SM

SPRING, Stand

$8.49

$

Usually ships in 2-12 days

0

45

Simplicity 152011

STAND ASSEMBLY

$

$

Not available

46

Simplicity 150004

BASE ASSEMBLY

$

$

Not available

47

Simplicity 8023509

FRAME ASSEMBLY

$

$

Not available

48

Simplicity 8061502

HITCH PIN ASSEMBLY

$

$

Not available

49

Simplicity 8061117

CLAMP, Throttle Wire Housing

$

$

Not available

50

Simplicity 8063502

HANDLE ASSEMBLY

$

$

Not available

51

Simplicity 8021105

KEY, Transmission Pulley

$

$

Not available

52

Simplicity 8022504

TRANSMISSION PULLEY

$

$

Not available

53

Simplicity 8021075

PIN, Transmission Pulley

$

$

Not available

54

Simplicity 150001

SPRING PIN, Transmission Pulley

$

$

Not available

55

Simplicity 8191014

BUSHING FOR PULLEY SHAFT, 3/8 x 3/4 x 1-7/16"

$

$

Not available

56

Simplicity 1729254SM

SET COLLAR (Pulley Shaft)
(Superseded to 703150)

$8.99

$

Usually ships in 2-12 days

0

57

Simplicity 891043

SHAFT, Bushing For Transmission, 1 x 1 1/8 x 2"

$

$

Not available

58

Simplicity 8023512

BEARING HOUSING ASSEMBLY

$

$

Not available

59

Simplicity 8023001

GEAR CASE

$

$

Not available

60

Simplicity 8022008

GASKET, Gear Case

$

$

Not available

61

Simplicity 8022030

SHAFT, Pulley

$

$

Not available

62

Simplicity 8021106

SPINDLE, Intermediate

$

$

Not available

63

Simplicity 8021066

PINION, Reduction

$

$

Not available

64

Simplicity 8021035

RETAINING RING FOR PULLEY SHAFT

$

$

Not available

65

Simplicity 8021503

CLUSTER GEAR ASSEMBLY

$

$

Not available

66

Simplicity 8021032

BUSHING, Intermediate, 5/8 x 3/4 x -7/16"

$

$

Not available

67

Simplicity 8262002

GEAR, Drive

$

$

Not available

68

Simplicity 8023002

GEAR CASE COVER

$

$

Not available

69

Simplicity 8021031

GROMMET #931-16-20

$

$

Not available

70

Simplicity 1729280SM

BOLTS. Hub

$6.49

$

In Stock, Qty 7

0

71

Simplicity 8021028

SET COLLAR (Axle)

$

$

Not available

72

Simplicity 8021068

AXLE KEY, 3/4 x 1/4 x 1 1/8"

$

$

Not available

73

Simplicity 8261032

RETAINING RING FOR AXLE

$

$

Not available

74

Simplicity 8022016

AXLE

$

$

Not available
