Lawn Mower - BCS America 22" Lawn Mower Attachment Gear Box & Blades Parts Diagram

22" Lawn Mower Attachment

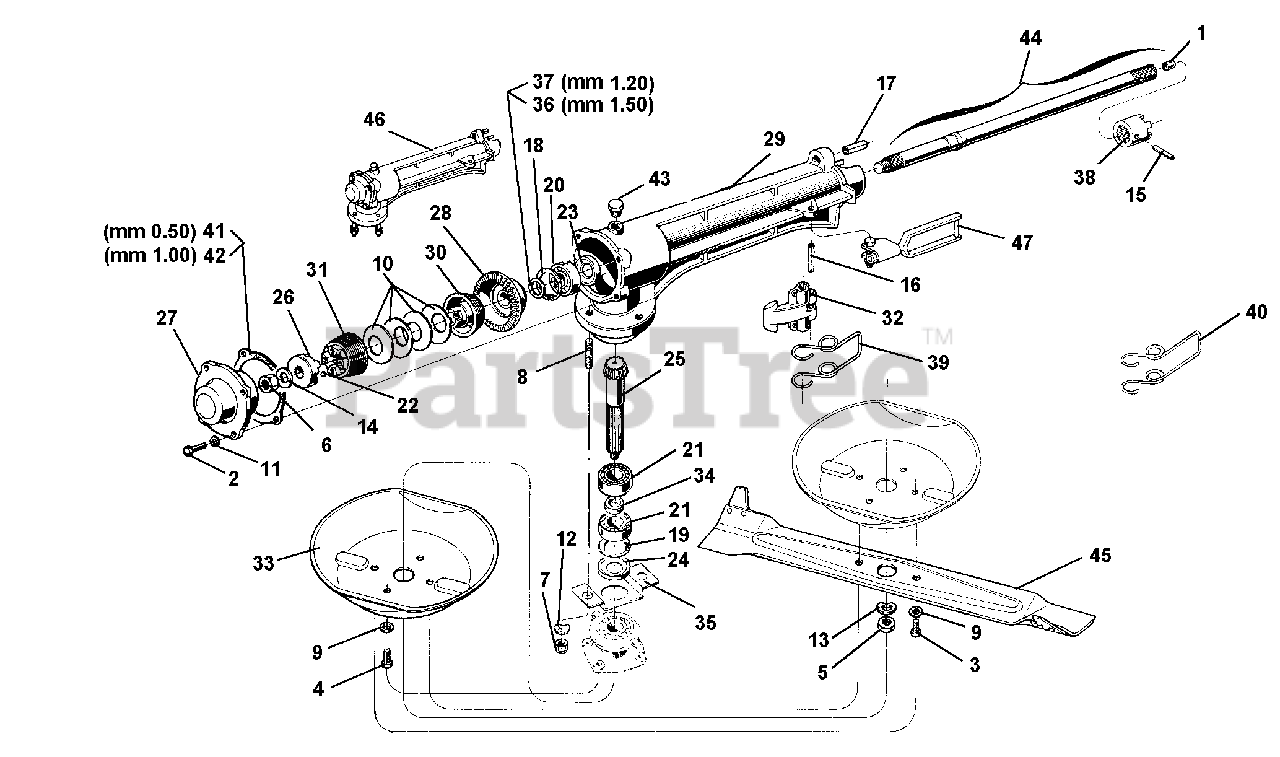

Gear Box & Blades Parts Diagram

  • Title

1

BCS America 30030010

BUSHING

$9.49

$

Usually ships in 5-8 days

0

2

BCS America 311.12093

SCREW M6 X 20

$0.99

$

In Stock, Qty 10

0

3

BCS America 311.12148

SCREW M8 X 14

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 311.12149

SCREW M8 X 12

$1.49

$

Usually ships in 5-8 days

0

5

BCS America 31231120

NUT, LOW M12

$1.49

$

Usually ships in 5-8 days

0

6

BCS America 312.31141

NUT M14 X 1.5

$1.99

$

Usually ships in 5-8 days

0

7

BCS America 312.41101

NUT SELF-LOCKING, M10 LOW

$1.49

$

Usually ships in 5-8 days

0

8

BCS America 313.12101

STUD M10 X 37 X 19 X 15 8G

$7.99

$

Usually ships in 5-8 days

0

9

BCS America 314.21083

SUPER WASHER 8 DIN 6796

$1.49

$

In Stock, Qty 6

0

10

BCS America 314.21561

SPRING 56 X 28 X .5 X 1.5

$10.99

$

Usually ships in 5-8 days

0

11

BCS America 314.22064

WASHER, LOCK 6.4

$0.99

$

Usually ships in 5-8 days

0

12

BCS America 314.23105

WASHER, LOCK 10.5

$1.49

$

In Stock, only 3 left!

0

13

BCS America 31423130

WASHER, LOCK 13

$1.49

$

In Stock, only 2 left!

0

14

BCS America 31423150

WASHER, LOCK 15

$1.99

$

Usually ships in 5-8 days

0

15

BCS America 342.11064

PIN, LOCKING 6 X 40

$1.49

$

Usually ships in 5-8 days

0

16

BCS America 342.13084

SPIRAL PIN 8 X 40

$1.99

$

Usually ships in 5-8 days

0

17

BCS America 34213120

LOCKING PIN 12 X 26

$4.99

$

Usually ships in 5-8 days

0

18

BCS America 351.11047

CIRCLIP, INTER. D 47

$1.99

$

In Stock, only 3 left!

0

19

BCS America 351.11052

CIRCLIP, INTER. D 52

$1.99

$

Usually ships in 5-8 days

0

20

BCS America 371.11201

BEARING 20 X 47 X 14 6204

$14.99

$

In Stock, only 2 left!

0

21

BCS America 371.11255

BEARING 25 X 52 X 15 6205

$15.99

$

In Stock, only 1 left!

0

22

BCS America 379.11032

BALL 5/16 RIV RB 7.938

$0.99

$

Usually ships in 5-8 days

0

23

BCS America 38212500

OIL SEAL 25 X 40 X 7

$10.99

$

Usually ships in 5-8 days

0

24

BCS America 382.12502

OIL SEAL 25 X 52 X 7

$9.99

$

Usually ships in 5-8 days

0

25

BCS America 524.51305

BEVEL GEAR

$

$

Currently unavailable

26

BCS America 52451310

BRAKE COUPLING

$171.99

$

Usually ships in 5-8 days

0

27

BCS America 524.51311

BRAKE BELL

$244.99

$

Usually ships in 5-8 days

0

28

BCS America 525.51304

CONICAL WHEEL

$330.99

$

Usually ships in 5-8 days

0

29

BCS America 53251300

HOUSING FOR LAWN MOWER 204

$388.99

$

Usually ships in 5-8 days

0

30

BCS America 541.51308

STARTER CONE

$133.50

$

Usually ships in 5-8 days

0

31

BCS America 541.51309

BRAKECONE

$407.99

$

Usually ships in 5-8 days

0

32

BCS America 552.50638

LEVER

$17.99

$

Usually ships in 5-8 days

0

33

BCS America 561.50753

PROTECTION DISC

$66.99

$

Usually ships in 5-8 days

0

34

BCS America 561.51306

SPACER

$26.99

$

Usually ships in 5-8 days

0

35

BCS America 561.51334

PROTECTION

$21.99

$

Usually ships in 5-8 days

0

36

BCS America 563.51303

STOP RING

$5.49

$

Usually ships in 5-8 days

0

37

BCS America 563.51314

STOP RING

$3.99

$

Usually ships in 5-8 days

0

38

BCS America 564.50605

BAR COUPLING

$156.99

$

In Stock, only 1 left!

0

39

BCS America 580.50639

HOOK

$27.99

$

Usually ships in 5-8 days

0

40

BCS America 580.50652

LONG SPRING HOOK

$26.99

$

Usually ships in 5-8 days

0

41

BCS America 58051320

GASKET

$2.49

$

Usually ships in 5-8 days

0

42

BCS America 580.51321

GASKET

$3.99

$

Usually ships in 5-8 days

0

43

BCS America 590.51045

BREATHER CAP 1/4 GAS

$18.99

$

Usually ships in 5-8 days

0

44

BCS America 590.51317

PROPELLER SHAFT

$415.99

$

Usually ships in 5-8 days

0

45

BCS America 590.51325

LAWN MOWER BLADE

$97.99

$

Usually ships in 5-8 days

0

46

BCS America 592.51299

GEAR ASSEMBLY

$

$

Currently unavailable

47

BCS America 922.51057

IMPLEMENT SCREW COUPLING KIT

$

$

Currently unavailable
