Lawn Mower - BCS America 22" Rotary Lawn Mower Attachment (1994 & Before) 22" Mower Deck (SN: 44270 - 131179) Parts Diagram

22" Rotary Lawn Mower Attachment

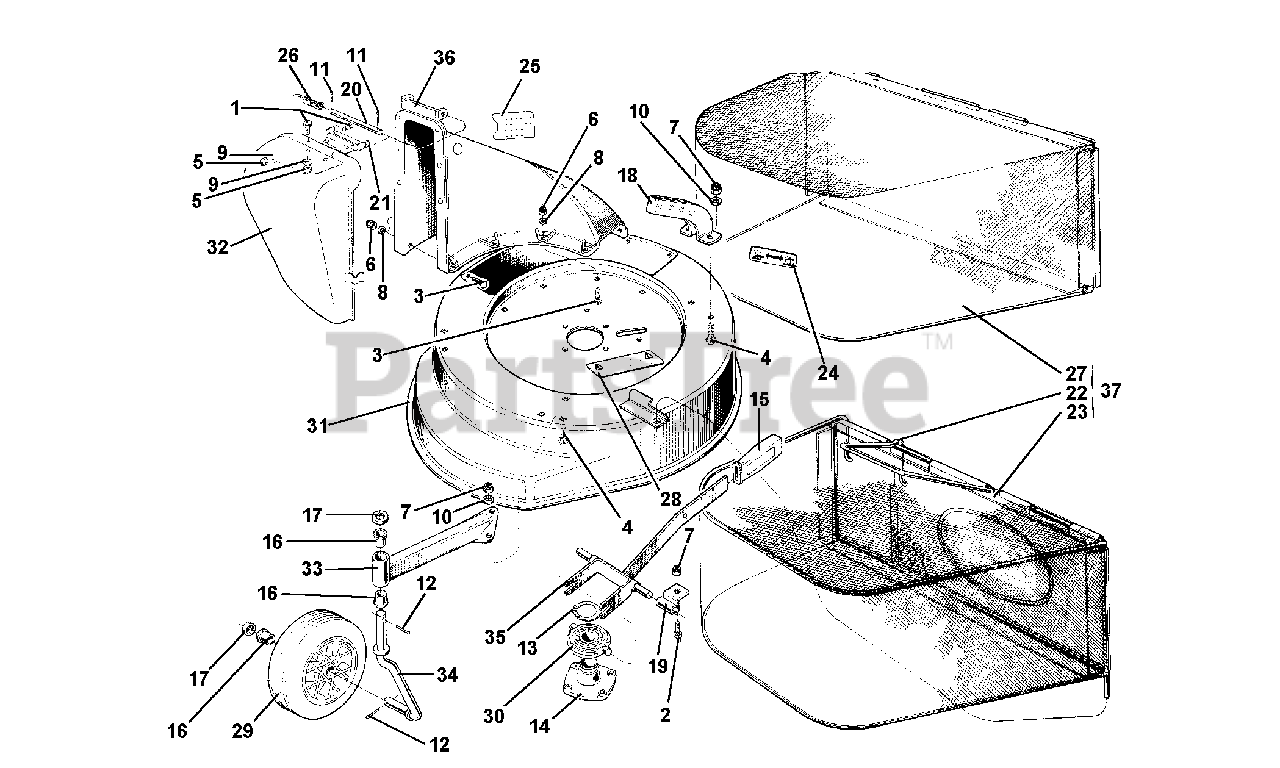

22" Mower Deck (SN: 44270 - 131179) Parts Diagram

  • Title

1

BCS America 311.11089

SCREW M5 X 10

$0.99

$

Usually ships in 5-8 days

0

2

BCS America 311.11151

SCREW M8 X 16

$1.99

$

In Stock, only 4 left!

0

3

BCS America 31121560

SCREW M6 X 20

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 311.21801

SCREW TTQ M8 X 20 UNI 5731

$1.99

$

Usually ships in 5-8 days

0

5

BCS America 31211050

NUT M5

$0.99

$

Usually ships in 5-8 days

0

6

BCS America 31241060

NUT, SELF LOCKING M6

$0.99

$

In Stock, Qty 8

0

7

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 10

0

8

BCS America 314.11064

WASHER, FLAT 6.4

$0.99

$

In Stock, only 2 left!

0

9

BCS America 314.21062

SUPER WASHER

$0.99

$

Usually ships in 5-8 days

0

10

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

11

BCS America 341.10028

COTTER PIN A 3 X 15 UNI 1336 AC.

$0.99

$

In Stock, Qty 9

0

12

BCS America 341.10041

PIN, COTTER 4 X 25

$1.49

$

Usually ships in 5-8 days

0

13

BCS America 351.21035

CIRCLIP, EXT. D 35

$1.99

$

Usually ships in 5-8 days

0

14

BCS America 523.51313

BLADE HOLDER HUB

$218.99

$

Usually ships in 5-8 days

0

15

BCS America 551.02714

KNOB

$14.99

$

Usually ships in 5-8 days

0

16

BCS America 552.19357

BUSH

$13.99

$

Usually ships in 5-8 days

0

17

BCS America 561.50559

PROTECTION

$4.99

$

Usually ships in 5-8 days

0

18

BCS America 561.51335

CUTTING HEIGHT SELECTOR

$63.99

$

Usually ships in 5-8 days

0

19

BCS America 561.51349

SUPPORT

$18.99

$

Usually ships in 5-8 days

0

20

BCS America 561.51364

BAFFLE PIN

$28.99

$

Usually ships in 5-8 days

0

21

BCS America 561.51366

U-BOLT

$25.99

$

Usually ships in 5-8 days

0

22

BCS America 561.51369

FRAME

$233.99

$

Usually ships in 5-8 days

0

23

BCS America 56151370

GRID

$72.99

$

Usually ships in 5-8 days

0

24

BCS America 561.51337

TRANSFER FOR LAWN MOWER

$

$

Currently unavailable

25

BCS America 561.51361

TRANSFER

$

$

Currently unavailable

26

BCS America 580.51365

DEFLECTOR SPRING

$18.99

$

Usually ships in 5-8 days

0

27

BCS America 580.51371

GRASS BAG

$182.99

$

Usually ships in 5-8 days

0

28

BCS America 580.51372

STICKER

$16.99

$

Usually ships in 5-8 days

0

29

BCS America 59050550

SMALL WHEEL

$92.99

$

Usually ships in 5-8 days

0

30

BCS America 590.51315

COLLAR

$156.99

$

Usually ships in 5-8 days

0

31

BCS America 59051330

LAWN MOWER CRANCASE

$1199.99

$

Usually ships in 5-8 days

0

32

BCS America 590.51336

DEFLECTOR

$

$

Currently unavailable

33

BCS America 590.51343

WHEEL SUPPORT

$106.99

$

Usually ships in 5-8 days

0

34

BCS America 590.51346

SPINDLE

$114.99

$

Usually ships in 5-8 days

0

35

BCS America 59051350

ADJUSTING LEVER

$133.99

$

Usually ships in 5-8 days

0

36

BCS America 590.51358

CONVEYOR

$182.99

$

Usually ships in 5-8 days

0

37

BCS America 590.51368

CATCHER COMPLETE

$512.99

$

Usually ships in 5-8 days

0
