Lawn Mower - BCS America 38" Rotary Lawn Mower Attachment (1995 & After) 38" Mower Gear Box/Blade Drive (SN: 131396 - 360713) Parts Diagram

38" Rotary Lawn Mower Attachment

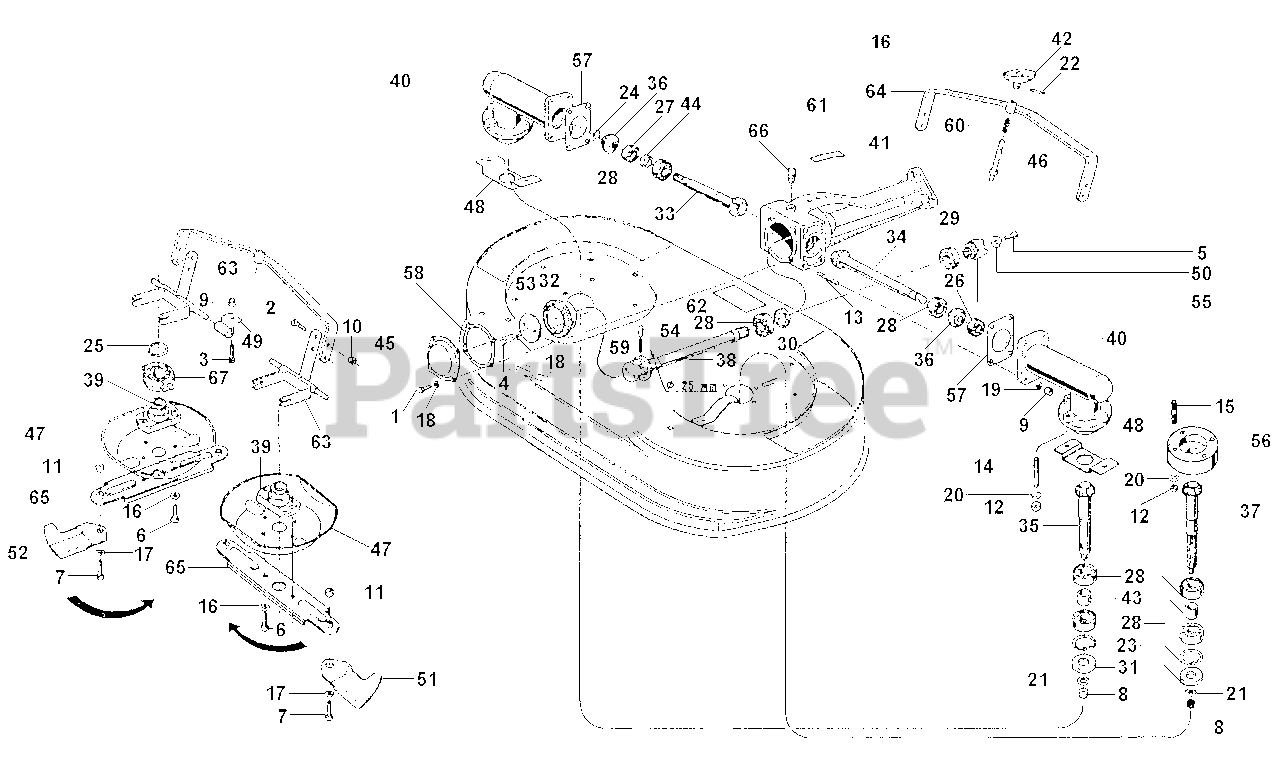

38" Mower Gear Box/Blade Drive (SN: 131396 - 360713) Parts Diagram

  • Title

1

BCS America 311.11091

SCREW TE M6X14

$1.49

$

In Stock, only 3 left!

0

2

BCS America 311.11150

SCREW TE M8X12

$

$

Currently unavailable

3

BCS America 311.11151

SCREW M8X16

$1.99

$

In Stock, only 4 left!

0

4

BCS America 311.12082

SCREW M6X12

$0.99

$

Usually ships in 5-8 days

0

5

BCS America 31112090

SCREW TE M6X16

$0.99

$

In Stock, Qty 10

0

6

BCS America 311.12148

SCREW M8X14

$1.49

$

Usually ships in 5-8 days

0

7

BCS America 311.12211

SCREW M10X30

$1.49

$

In Stock, Qty 8

0

8

BCS America 31231120

NUT, LOW M12

$1.49

$

Usually ships in 5-8 days

0

9

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 10

0

10

BCS America 312.41084

NUT

$1.49

$

Usually ships in 5-8 days

0

11

BCS America 31241100

NUT, SELF LOCKING M10

$1.49

$

Usually ships in 5-8 days

0

12

BCS America 312.41101

NUT, SELF LOCKING M10 LOW

$1.49

$

Usually ships in 5-8 days

0

13

BCS America 313.12088

STUD M8X40X14X14

$8.49

$

Usually ships in 5-8 days

0

14

BCS America 313.12101

STUD M10X37X19X15

$7.99

$

Usually ships in 5-8 days

0

15

BCS America 313.12106

STUD M10X68X34X15

$13.99

$

Usually ships in 5-8 days

0

16

BCS America 314.21083

SUPER WASHER 8 DIN 6796

$1.49

$

In Stock, Qty 6

0

17

BCS America 314.21101

SUPER WASHER 10 DIN 6796

$1.99

$

In Stock, Qty 5

0

18

BCS America 314.22064

WASHER, LOCK 6.4

$0.99

$

Usually ships in 5-8 days

0

19

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

20

BCS America 314.23105

WASHER, LOCK 10.5

$1.49

$

In Stock, only 3 left!

0

21

BCS America 31423130

WASHER, LOCK 13

$1.49

$

In Stock, only 2 left!

0

22

BCS America 34213020

LOCKING PIN 4X24 SPIRAL

$1.49

$

In Stock, Qty 5

0

23

BCS America 351.11052

CIRCLIP, INTERN D 52

$1.99

$

Usually ships in 5-8 days

0

24

BCS America 351.21019

OUTSIDE CIRCLIP

$1.49

$

Usually ships in 5-8 days

0

25

BCS America 351.21035

EXT. CIRCLIP D 30

$1.99

$

Usually ships in 5-8 days

0

26

BCS America 37111170

BEARING 17X40X12 6203

$9.99

$

Usually ships in 5-8 days

0

27

BCS America 371.11201

BEARING 20X47X14 6204

$14.99

$

In Stock, only 2 left!

0

28

BCS America 371.11255

BEARING SKF 25X52X15 6205

$15.99

$

In Stock, only 1 left!

0

29

BCS America 371.12252

BRNG 25X47X12 ST 2RS 6005

$13.99

$

Usually ships in 5-8 days

0

30

BCS America 38212500

OIL SEAL 25X40X7

$10.99

$

Usually ships in 5-8 days

0

31

BCS America 382.12502

OIL SEAL 25X52X7

$9.99

$

Usually ships in 5-8 days

0

32

BCS America 524.47295

BEVEL GEAR

$314.99

$

Usually ships in 5-8 days

0

33

BCS America 524.47296

RIGHT SHAFT

$571.99

$

Usually ships in 5-8 days

0

34

BCS America 524.47297

LEFT SHAFT

$236.99

$

Usually ships in 5-8 days

0

35

BCS America 524.47298

ROLL CASING

$371.99

$

Usually ships in 5-8 days

0

36

BCS America 524.47299

BEVEL GEAR

$109.99

$

Usually ships in 5-8 days

0

37

BCS America 524.47314

BEVEL PINION

$285.99

$

Usually ships in 5-8 days

0

38

BCS America 524.47315

PROPELLER SHAFT

$207.36

$

Usually ships in 5-8 days

0

39

BCS America 524.47363

BLADE HOLDER HUB

$238.99

$

Usually ships in 5-8 days

0

40

BCS America 532.47305

SIDE BODY 2-BLADE MOWER

$396.99

$

Usually ships in 5-8 days

0

41

BCS America 532.47306

LAWN MOWER CENTRAL BODY

$390.99

$

Usually ships in 5-8 days

0

42

BCS America 552.49665

KNOB

$17.99

$

Usually ships in 5-8 days

0

43

BCS America 56143660

SPACER 25X30X24

$15.99

$

Usually ships in 5-8 days

0

44

BCS America 561.47312

STOP RING

$25.20

$

Usually ships in 5-8 days

0

45

BCS America 561.47319

CAP

$34.72

$

Usually ships in 5-8 days

0

46

BCS America 561.47336

SELECTOR PIN

$44.99

$

Usually ships in 5-8 days

0

47

BCS America 561.50753

PROTECTION DISC

$66.99

$

Usually ships in 5-8 days

0

48

BCS America 561.51334

PROTECTION

$21.99

$

Usually ships in 5-8 days

0

49

BCS America 561.51349

SUPPORT

$18.99

$

Usually ships in 5-8 days

0

50

BCS America 561.58943

WASHER

$2.49

$

Usually ships in 5-8 days

0

51

BCS America 563.47367

LEFT HAND BLADE

$45.99

$

Usually ships in 5-8 days

0

52

BCS America 563.47368

RIGHT HAND BLADE

$43.99

$

In Stock, only 2 left!

0

53

BCS America 563.48584

DISC, GEAR LOCKING

$23.99

$

Usually ships in 5-8 days

0

54

BCS America 564.43655

CAP

$5.99

$

Usually ships in 5-8 days

0

55

BCS America 564.58942

PTO COUPLER

$

$

Currently unavailable

56

BCS America 572.47345

CRANKCASE SPACER

$248.99

$

Usually ships in 5-8 days

0

57

BCS America 580.47321

SIDE GASKET

$4.49

$

Usually ships in 5-8 days

0

58

BCS America 580.47322

GASKET

$2.99

$

Usually ships in 5-8 days

0

59

BCS America 580.48021

STOP LEVER SPRING

$8.99

$

Usually ships in 5-8 days

0

60

BCS America 58049830

FERRULE SPRING

$4.99

$

Usually ships in 5-8 days

0

61

BCS America 580.51337

TRANSFER FOR LAWN MOWER

$4.49

$

Usually ships in 5-8 days

0

62

BCS America 580.51372

STICKER

$16.99

$

Usually ships in 5-8 days

0

63

BCS America 590.47329

ADJUSTING LEVER

$115.99

$

Usually ships in 5-8 days

0

64

BCS America 590.47333

CROSSPIECE

$86.99

$

Usually ships in 5-8 days

0

65

BCS America 590.47364

BLADE HOLDER

$104.99

$

Usually ships in 5-8 days

0

66

BCS America 590.51045

BREATHER CAP 1/4 GAS

$18.99

$

Usually ships in 5-8 days

0

67

BCS America 590.51315

COLLAR

$156.99

$

Usually ships in 5-8 days

0
