LB 553 S - Husqvarna Walk-Behind Mower (Original) ENGINE Parts Diagram

Walk-Behind Mower

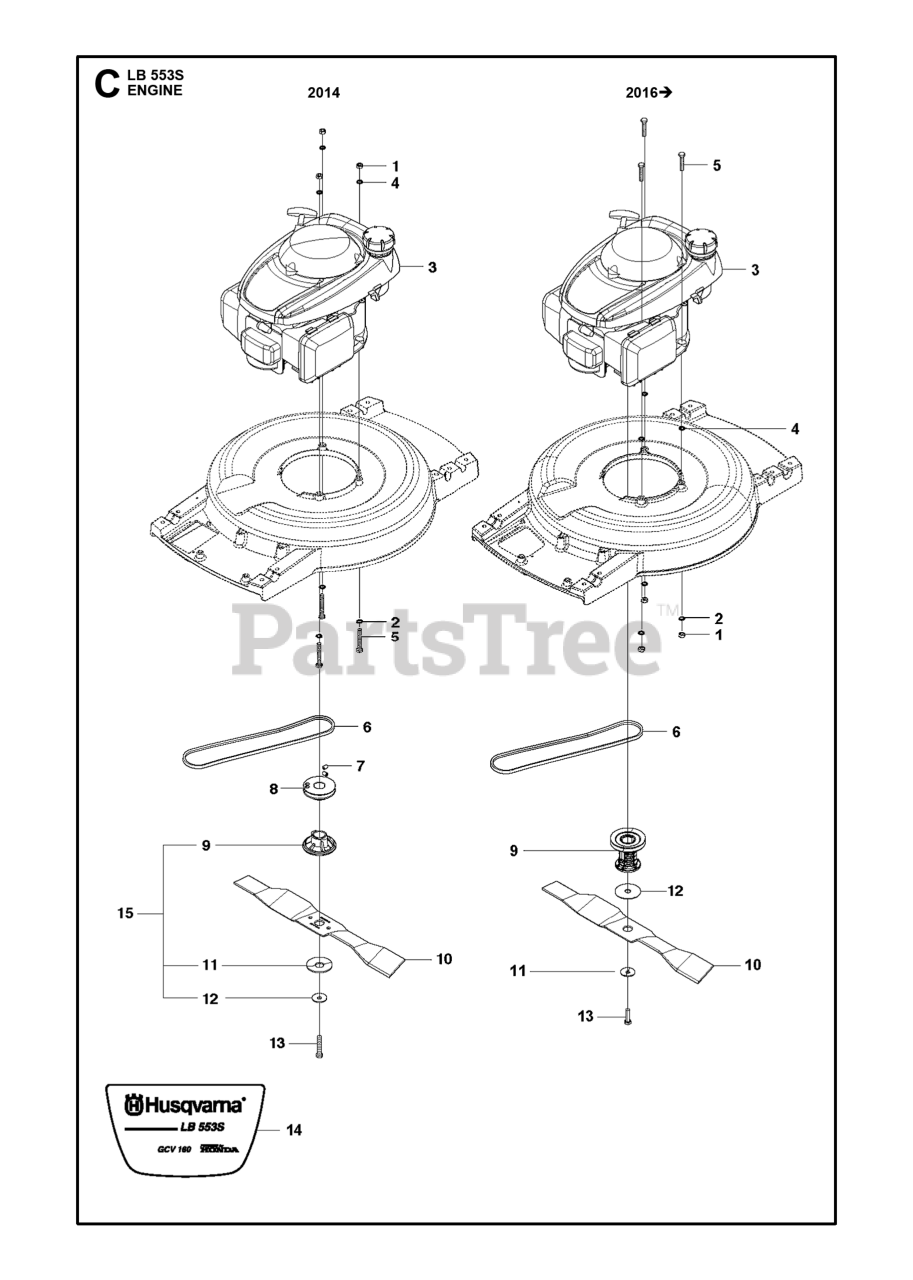

ENGINE Parts Diagram

  • Title

12.1

Husqvarna 295688501

WASHER

$

$

Not available

14

Husqvarna 585835204

NEEDS DESCRIPTION

$

$

Currently unavailable

10.1

Husqvarna 295673210

NEEDS DESCRIPTION

$

$

Currently unavailable

8

Husqvarna 577611101

NEEDS DESCRIPTION

Note: Diam 83mm - Use with belt 5895636-01

$

$

Currently unavailable

6

Husqvarna 589563601

BELT

Note: For 83mm pulley

$27.99

$

Usually ships in 3-10 days

0

8

Husqvarna 295668901

PULLEY M53S / M48S

Note: Diam 75mm - Use with belt 5895343-01

$

$

Not available

9.1

Husqvarna 295688201

BLADE SUPPORT

$

$

Not available

5

Husqvarna 725246351

SCREW

$5.99

$

In Stock, only 4 left!

0

11.1

Husqvarna 535411001

WASHER

$12.99

$

Usually ships in 3-10 days

0

7

Husqvarna 505390301

NEEDS DESCRIPTION

$2.99

$

Usually ships in 3-10 days

0

4.2

Husqvarna 585135401

NEEDS DESCRIPTION

Note: For 2019

$

$

Currently unavailable

2

Husqvarna 734116401

WASHER BRB 8.4X17

$6.49

$

In Stock, only 4 left!

0

1

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

12.2

Husqvarna 503259401

Washers

Note: Diam 83mm - Use with belt 5895636-01

$6.49

$

Usually ships in 3-10 days

0

10.2

Husqvarna 295673220

NEEDS DESCRIPTION

$

$

Currently unavailable

11.2

Husqvarna 503332501

SPRINGS

$8.99

$

Usually ships in 3-10 days

0

3.1

Husqvarna .

NEEDS DESCRIPTION

Note: GCV 160 A0 A3-HV-SD, 2014 & 2016

$

$

Currently unavailable

9.2

Husqvarna 501110701

NEEDS DESCRIPTION

Note: Kit: 295 67 32-10 (Blade with box)

$

$

Currently unavailable

13.2

Husqvarna 504456401

NEEDS DESCRIPTION

$

$

Currently unavailable

13.1

Husqvarna 295674602

BOLT M53 / M48

$

$

Not available

3.2

Husqvarna 594911701

NEEDS DESCRIPTION

Note: GCV170 S3-BL-SD, 2019, for warranty only

$

$

Currently unavailable

6

Husqvarna 589534301

BELT

Note: For 75mm pulley

$22.99

$

Usually ships in 3-10 days

0

15

Husqvarna 531009273

NEEDS DESCRIPTION

$

$

Currently unavailable

4.1

Husqvarna 734116401

WASHER BRB 8.4X17

Note: For 2014 & 2016

$6.49

$

In Stock, only 4 left!

0
