LBB-4000 - Lesco Backpack Blower Ignition, Starter Parts Diagram

Backpack Blower

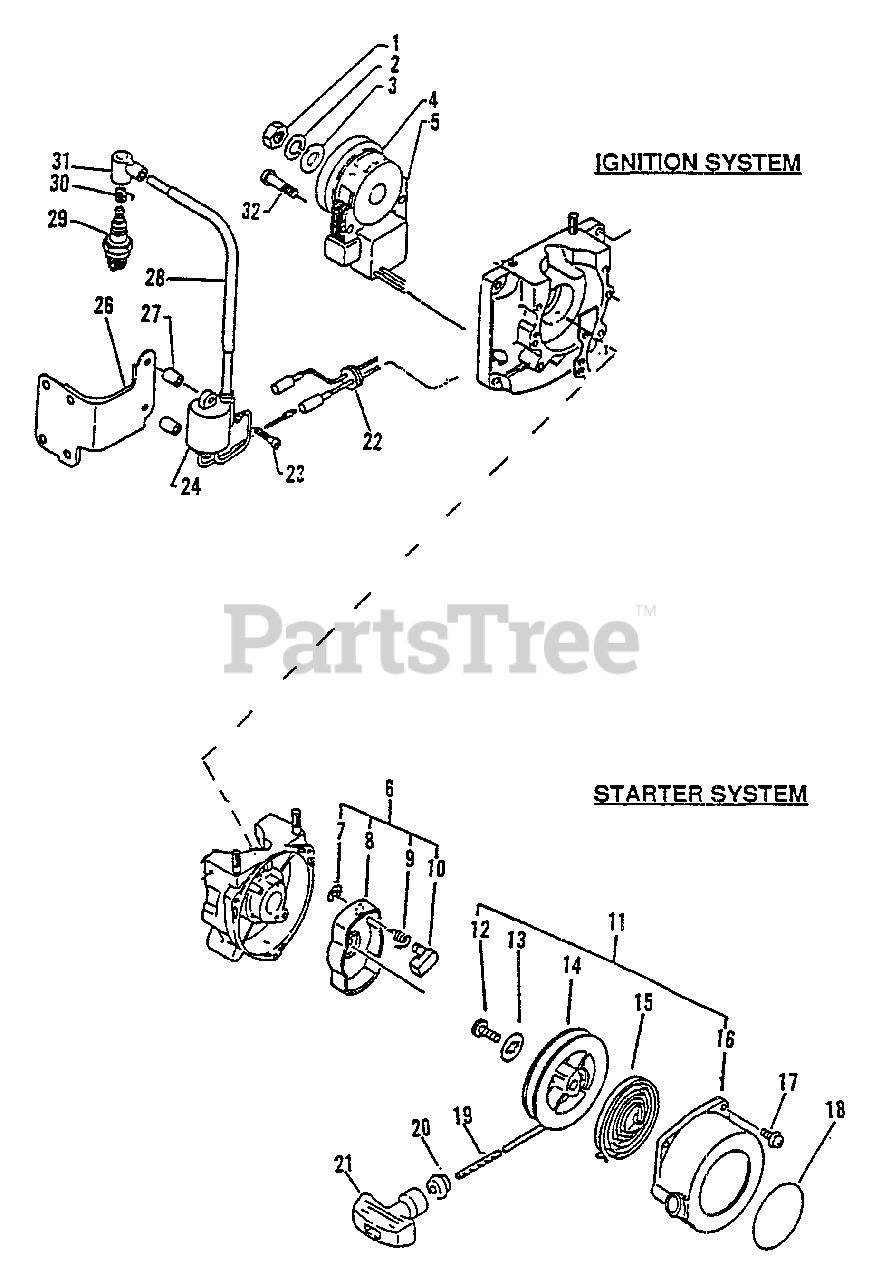

Ignition, Starter Parts Diagram

  • Title

1

Echo 10013401110

NUT

$2.49

$

Usually ships in 2-4 days

0

2

Echo 10013301110

LOCKWASHER

$0.99

$

Usually ships in 2-4 days

0

3

Echo 10013601110

WASHER

$1.99

$

Usually ships in 2-4 days

0

4

Echo 15080002110

FLYWHEEL
(Superseded to 15680002111)

$132.99

$

Usually ships in 2-4 days

0

5

Echo 15060102910

COIL, IGNITION
(Superseded to 15660102911)

$124.99

$

In Stock, only 1 left!

0

6

Echo 17720202110

STARTER PAWL ASSY

Note: Includes ITEMS 7 - 10

$19.99

$

In Stock, only 2 left!

0

7

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

8

Echo 17721002110

CATCHER, PAWL

$8.99

$

Usually ships in 2-4 days

0

9

Echo 17723440630

SPRING, RETURN

$3.99

$

Usually ships in 2-4 days

0

10

Echo 17721840630

PAWL, STARTER
(Superseded to A514000120)

$3.49

$

In Stock, only 3 left!

0

11

Echo 17720008060

STARTER ASSY

Note: Includes ITEMS 12-21

$116.99

$

Usually ships in 2-4 days

0

12

Echo 17723640630

SCREW

$4.99

$

In Stock, Qty 13

0

13

Echo 17721441030

WASHER

$1.49

$

Usually ships in 2-4 days

0

14

Echo 17721543130

REEL, ROPE

$16.99

$

In Stock, only 2 left!

0

15

Echo 17722040630

SPRING, REWIND

$15.99

$

In Stock, only 2 left!

0

16

Echo 17723208060

CASE, STARTER

$55.99

$

Usually ships in 2-4 days

0

17

Echo 90024205018

SCREW - 5X18

$0.99

$

In Stock, only 2 left!

0

18

Echo 89011508060

LABEL - LESCO

$6.49

$

Usually ships in 2-4 days

0

19

Echo 17722601110

ROPE, STARTER - 4X880

Note: RePower BULK OPTION: 99944450000

$6.99

$

Usually ships in 2-4 days

0

20

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

21

Echo 17722801110

GRIP, STARTER

$8.99

$

In Stock, only 3 left!

0

22

Echo 15061402910

GROMMET

$0.99

$

Usually ships in 2-4 days

0

23

Echo 90024204025

SCREW - 4X25

$0.99

$

In Stock, only 2 left!

0

24

Echo 15062602110

COIL, IGNITION
(Superseded to 15662602111)

$108.99

$

In Stock, only 1 left!

0

26

Echo 15931002260

BRACKET

$8.49

$

Usually ships in 2-4 days

0

27

Echo 15931302110

SPACER

$1.99

$

Usually ships in 2-4 days

0

28

Echo 15011101110

TUBE

$0.99

$

Usually ships in 2-4 days

0

29

Echo 15901000330

SPARK PLUG -- BM-6A

$

$

Not available

30

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.99

$

In Stock, Qty 20+

0

31

Echo 15901201620

CAP, SPARK PLUG

$1.99

$

In Stock, only 2 left!

0

32

Echo 90024205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0
