LBB-4200 - Lesco Backpack Blower Fuel System Parts Diagram

Backpack Blower

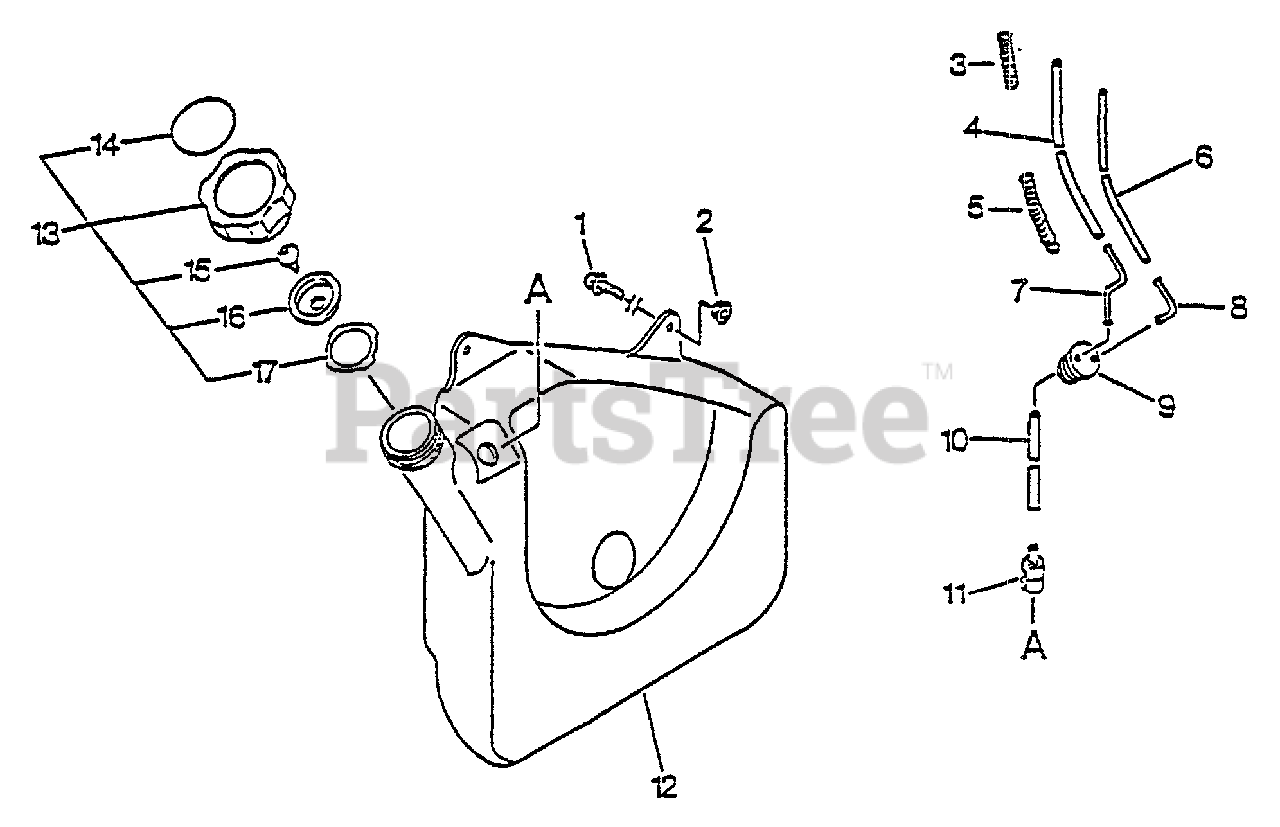

Fuel System Parts Diagram

  • Title

1

Echo 90020905014

SCREW - 5×14
(Superseded to 9154005014)

$0.99

$

In Stock, Qty 20+

0

2

Echo 90051600005

NUT, FLANGE M5

$1.49

$

In Stock, Qty 20+

0

3

Echo 13201508260

WRAP, SPIRAL

$

$

Not available

4

Echo 13201008260

PIPE, FUEL

Note: RePower BULK OPTION: 90016

$20.99

$

In Stock, Qty 12

0

5

Echo 17812703460

PIPE

$2.49

$

In Stock, Qty 20+

0

6

Echo 13201608260

PIPE, FUEL

Note: RePower BULK OPTION: 90018

$5.49

$

In Stock, Qty 11

0

7

Echo 13201108260

CONNECTOR, PIPE

$4.49

$

In Stock, Qty 9

0

8

Echo 13202108260

CONNECTOR, PIPE

$4.99

$

In Stock, Qty 20+

0

9

Echo 13211502960

GROMMET
(Superseded to 13211502961)

$3.49

$

In Stock, Qty 20+

0

10

Echo V471000770

PIPE, FUEL 3×6×280 MM
(Superseded to V471000771)

Note: RePower BULK OPTION: 90015

$4.49

$

In Stock, Qty 13

0

11

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

12

Echo 13101008260

TANK, FUEL
(Superseded to 13101008261)

$50.99

$

In Stock, only 3 left!

0

13

Echo 13160009360

CAP ASSY
(Superseded to 13100409360)

Note: Includes ITEMS 14-17

$

$

Not available

14

Echo 89014706160

LABEL - FUEL MIX
(Superseded to Discontinued)

$

$

Not available

15

Echo 13131406320

VENT ASSY

$6.49

$

In Stock, Qty 20+

0

16

Echo 13101521330

HOLDER, CHECK VALVE
(Superseded to A358000000)

$

$

Not available

17

Echo 131016-21230

GASKET, FUEL CAP

$3.99

$

In Stock, only 2 left!

0
