LBB-4200 - Lesco Backpack Blower Throttle, Stop Switch Parts Diagram

Backpack Blower

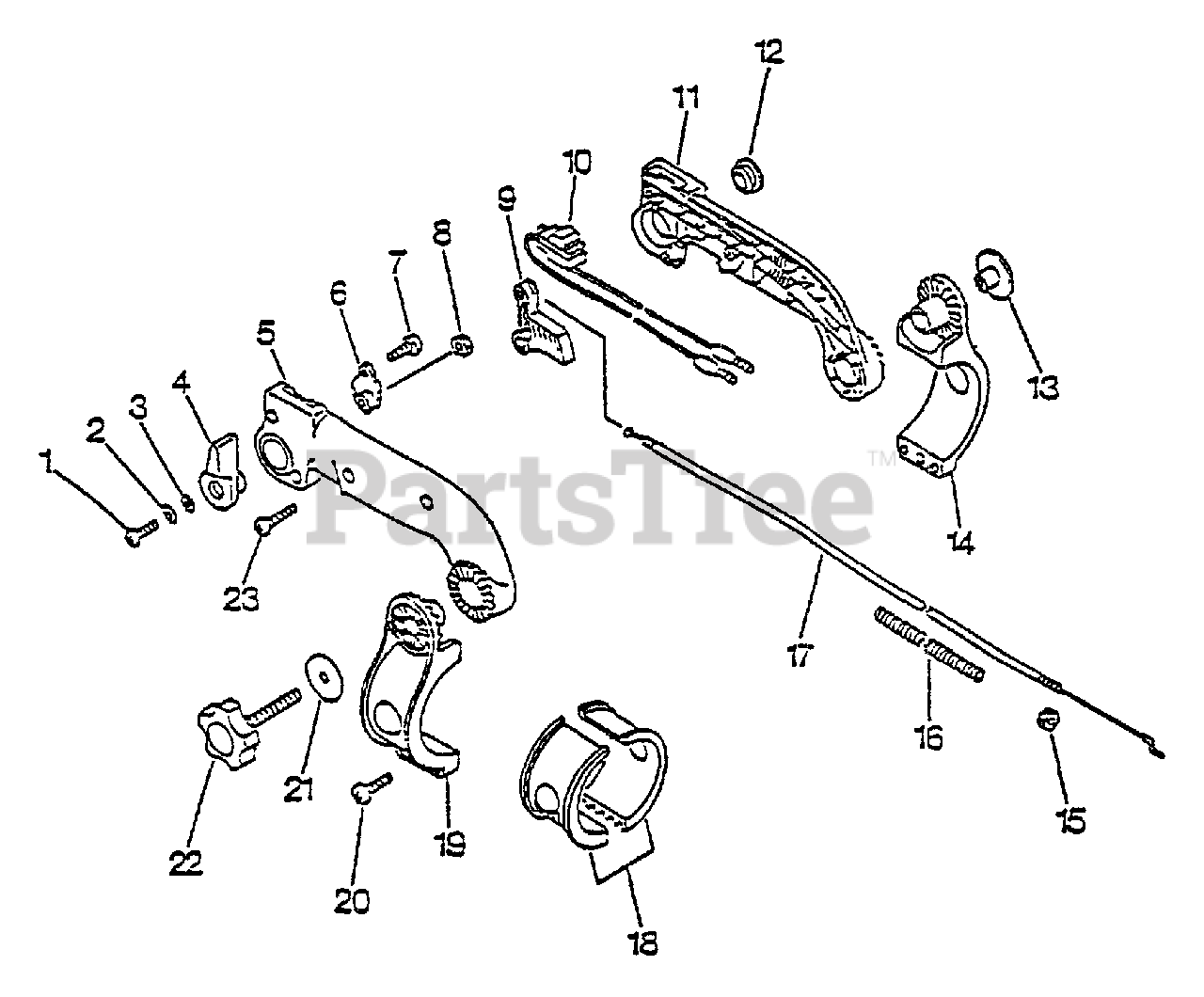

Throttle, Stop Switch Parts Diagram

  • Title

1

Echo 90023506020

SCREW 6×20

$0.99

$

In Stock, only 2 left!

0

2

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 14

0

3

Echo 90060300006

WASHER 6.5×13×1

$0.99

$

In Stock, Qty 20+

0

4

Echo 17805408560

TRIGGER, THROTTLE

$13.99

$

In Stock, only 1 left!

0

5

Echo 35131507560

CONTROL HANDLE - LEFT

$27.99

$

In Stock, only 1 left!

0

6

Echo 17812307561

BRACKET, THROTTLE

$4.49

$

In Stock, only 4 left!

0

7

Echo 90024504010

SCREW 4×10

$0.99

$

In Stock, Qty 6

0

8

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

9

Echo 17801008560

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

10

Echo 16340008560

IGNITION SWITCH ASSY

$18.99

$

Usually ships in 2-4 days

0

11

Echo 35131107560

CONTROL HANDLE - RIGHT

$13.99

$

In Stock, only 1 left!

0

12

Echo 35114607560

PLUG

$3.99

$

In Stock, only 1 left!

0

13

Echo 17802108260

NUT

$30.99

$

In Stock, only 2 left!

0

14

Echo 35102807560

BRACKET, HANDLE - RIGHT
(Superseded to P021014110)

$6.99

$

In Stock, Qty 10

0

15

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

16

Echo 17801608260

TUBE, PROTECTIVE - CORRUGATED
(Superseded to 17812747530)

$6.49

$

Usually ships in 2-4 days

0

17

Echo 17800108360

CABLE, THROTTLE

$17.99

$

In Stock, only 2 left!

0

18

Echo 21001907560

COLLAR

$5.49

$

In Stock, Qty 5

0

19

Echo 35101107560

BRACKET, HANDLE - LEFT
(Superseded to P021014110)

$6.99

$

In Stock, Qty 10

0

20

Echo 90025305020

SCREW, TAPPING 5×20

$1.99

$

In Stock, Qty 20+

0

21

Echo 17851607560

WASHER

$0.99

$

In Stock, only 3 left!

0

22

Echo 30581207560

THUMBSCREW
(Superseded to 30581208260)

$5.49

$

In Stock, Qty 20+

0

23

Echo 90025604022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0
