LBC15-BS950 - Scag Classic Wheeled Blower, 6.5hp Briggs & Stratton (SN: P4400001 - P4499999) CLASSIC BLOWER ASSEMBLY Parts Diagram

Classic Wheeled Blower, 6.5hp Briggs & Stratton

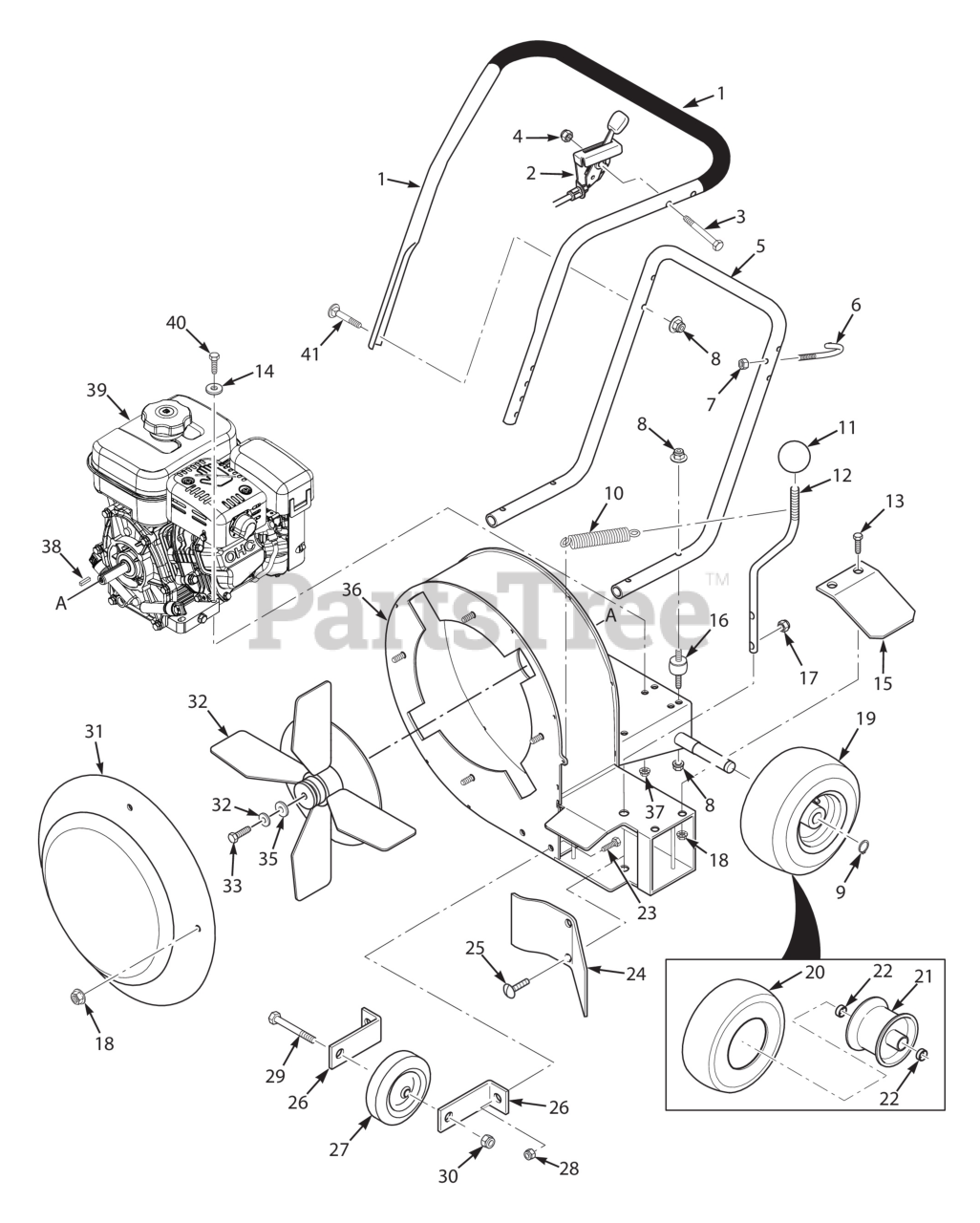

CLASSIC BLOWER ASSEMBLY Parts Diagram

  • Title

1

Scag 462618

Handle, Upper w / Grip - LBC

$196.99

$

Usually ships in 2-12 days

0

Scag 485074

REPLACED BY 485343
(Superseded to 485343)

$15.99

$

Usually ships in 2-12 days

0

2

Scag 485006

Cable, Throttle Control

$48.99

$

In Stock, only 1 left!

0

3

Scag 04001-206

Bolt, 1/4-20 x 2-1/2"

$0.99

$

Usually ships in 2-12 days

0

4

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 10

0

5

Scag 484928

Handle, Lower Folding - LBC

$62.99

$

Usually ships in 2-12 days

0

6

Scag 44200

Guide, Pull Rope

$5.49

$

Usually ships in 2-12 days

0

7

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

8

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

9

Scag 04050-09

RETAINING RING, 5/8 EXT. - BASIC

$0.99

$

In Stock, Qty 10

0

10

Scag 484764

Spring, Air Discharge Door

$7.99

$

In Stock, only 1 left!

0

11

Scag 484840

Knob, 3/8-16 Thread

$6.49

$

Usually ships in 2-12 days

0

12

Scag 44203

Rod, Air Control

$7.99

$

In Stock, only 1 left!

0

13

Scag 04017-16

Capscrew, 5/16-18 x .75 Serrated Flange Hex Head

$0.99

$

In Stock, Qty 10

0

14

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 9

0

15

Scag 426339

Deflector, Side Air

$13.99

$

Usually ships in 2-12 days

0

16

Scag 484843

Mount, Vibration

$11.99

$

In Stock, only 1 left!

0

17

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

18

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 16

0

19

Scag 484844

Wheel Assembly, 4.10 x 3.5-6

$89.99

$

Usually ships in 2-12 days

0

20

Scag 485008

Tire

$53.99

$

Usually ships in 2-12 days

0

21

Scag 485009

Rim w/Valve

$35.99

$

Usually ships in 2-12 days

0

22

Scag 485010

Bearing

$5.49

$

Usually ships in 2-12 days

0

23

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

24

Scag 426341

Door, Forward Air Control

$20.99

$

In Stock, only 1 left!

0

25

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

26

Scag 426169

Bracket, Caster

$13.99

$

Usually ships in 2-12 days

0

27

Scag 484845

Wheel

$28.99

$

Usually ships in 2-12 days

0

28

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

29

Scag 04001-31

Capscrew, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 10

0

30

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

31

Scag 463078

Baffle Weldment, Intake w / Decal

$209.99

$

Usually ships in 2-12 days

0

32

Scag 452878

Impeller Weldment, LBC 15 x 3/4" Bore

$765.99

$

Usually ships in 2-12 days

0

Scag 04012-05

Setscrew, Hex Socket 1/4-20 x 1/2"

$0.99

$

Usually ships in 2-12 days

0

33

Scag 04102-09

Bolt, Hex Head 5/16-24 x 2" w / Patch

$2.99

$

Usually ships in 2-12 days

0

34

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 20+

0

35

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge

$1.99

$

In Stock, Qty 20+

0

36

Scag 462629

Blower Housing Weldment w / Decals - LBC

$487.99

$

Usually ships in 2-12 days

0

37

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

38

Scag 04063-05

KEY, 3/16 X 3/16 X 1-1/2

$2.49

$

In Stock, Qty 6

0

39

Scag 485893

Engine, Briggs & Stratton BS950 (not available through Scag Power Equipment)

$

$

Currently unavailable

40

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 15

0

41

Scag 04003-15

CARR BOLT, 5/16-18 X 1.75

$4.99

$

In Stock, Qty 8

0
