LBD 48 (490-900A-0030) - Husqvarna Snow Blade (2006-03) Snow Blade 48" Parts Diagram

Snow Blade

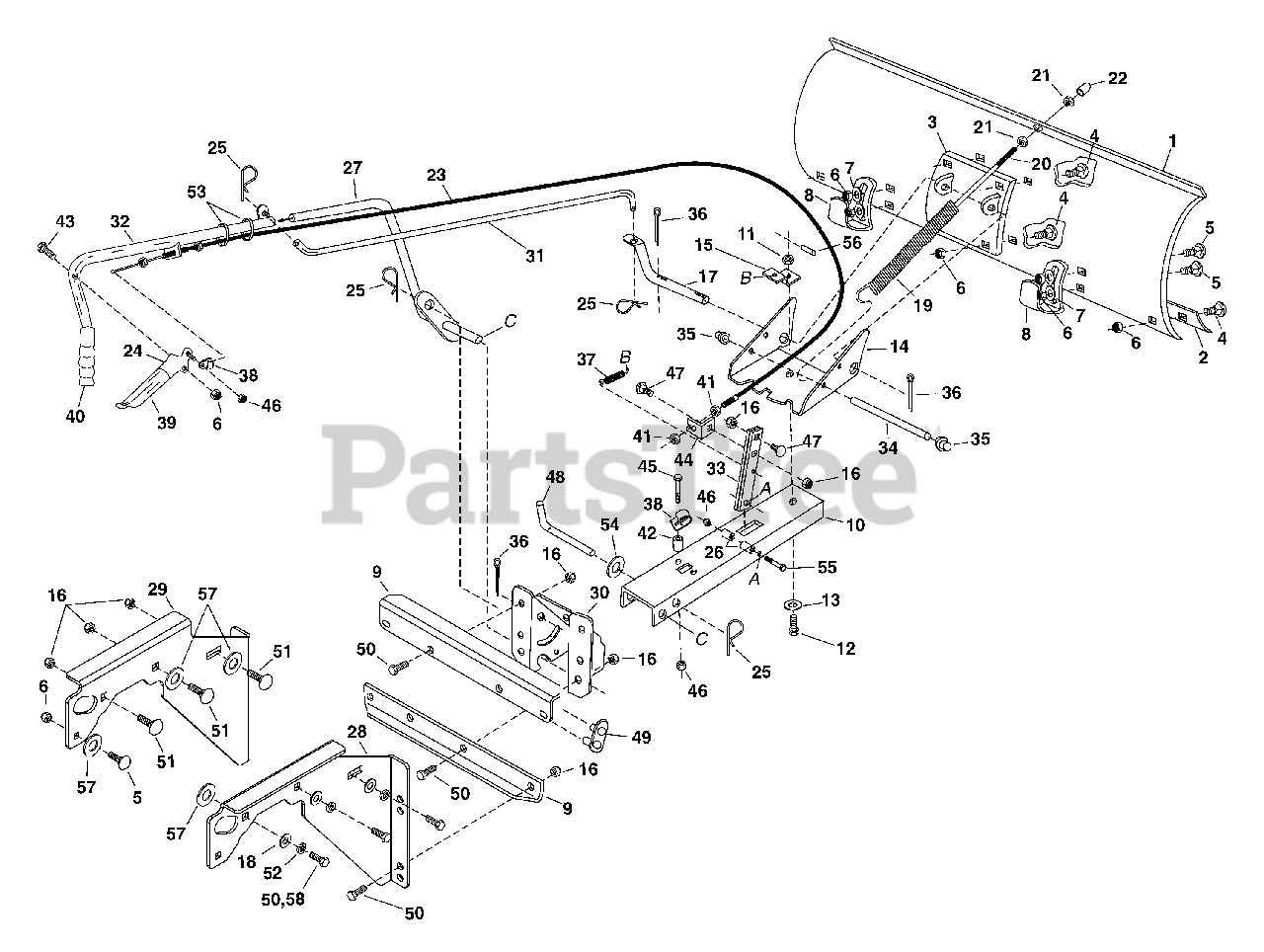

Snow Blade 48" Parts Diagram

  • Title

1

Husqvarna 23955

Blade 48"

$

$

Currently unavailable

2

Husqvarna 23956

Wear Plate 48"

$

$

Currently unavailable

3

Husqvarna 62980

Reinforcement Plate Assembly

$

$

Currently unavailable

4

Husqvarna 43080

Bolt, Carriage 5/16-18 x 3/4"

$

$

Not available

5

Husqvarna 44326

Bolt, Carriage 5/16-18 x 1"

$

$

Currently unavailable

6

Husqvarna 47810

Nylock Nut, 5/16-18 Thread

$

$

Currently unavailable

7

Husqvarna 43081

Washer, 5/16"

$

$

Not available

8

Husqvarna 24690

Skid Shoe
(Superseded to 581987401)

$

$

Not available

9

Husqvarna 25647

Bracket, Angle Support

$

$

Currently unavailable

10

Husqvarna 24347

Push Channel

$

$

Not available

11

Husqvarna 43262

Hex Lock Nut, 1/2-13 Thread

$

$

Not available

12

Husqvarna 23131

Bolt, Special Pivot

$

$

Not available

13

1540118

Washer, Flat 1/2"

$

$

Not available

14

Husqvarna 23958

Plate, Pivot 7 Ga.

$

$

Currently unavailable

15

Husqvarna 23130

Bracket, Spring Mt.

$

$

Not available

16

Husqvarna HA2136216

Nylock Hex Nut, 3/8"

$

$

Currently unavailable

17

Husqvarna 46066

Shaft, Blade Pivot

$

$

Currently unavailable

18

Husqvarna 43070

Washer, 3/8" STD.

$

$

Not available

19

Husqvarna R9466R

Spring, Blade Adjust

$

$

Currently unavailable

20

Husqvarna 44071

Hex Bolt, 3/8-16 x 3-1/2"

$

$

Currently unavailable

21

Husqvarna 43015

Hex Nut, 3/8-16 Thread

$

$

Not available

22

Husqvarna 44074

Plastic Cap

$

$

Currently unavailable

23

Husqvarna 49808

Control Cable Assembly

$

$

Currently unavailable

24

Husqvarna 62561

Release Grip Assembly

$

$

Not available

25

Husqvarna 43055

Pin, Hairpin Small 3/32"

$

$

Currently unavailable

26

Husqvarna 46053

Spacer, .28 ID x 1"

$

$

Currently unavailable

27

Husqvarna 63033

Lift Handle Rod Assembly

$

$

Currently unavailable

28

Husqvarna 25646

Hanger Bracket, R.H.

$

$

Not available

29

Husqvarna 25645

Hanger Bracket, L.H.

$

$

Not available

30

Husqvarna 24023

Pivot Support Bracket

$

$

Currently unavailable

31

Husqvarna 46049

Rod, Blade Pivot

$

$

Currently unavailable

32

Husqvarna 65519

Lift Handle Tube Assembly

$

$

Currently unavailable

33

Husqvarna 23151

Angle Lock Bar

$

$

Not available

34

Husqvarna 23856

Spring Mount Rod

$

$

Currently unavailable

35

Husqvarna 44917

Palnut, 3/8"

$

$

Currently unavailable

36

Husqvarna 43010

Cotter Pin 1/8" x 1-1/4"

$

$

Not available

37

Husqvarna 43348

Angle Lock Spring

$

$

Not available

38

7460260

Cable End Fitting

$

$

Not available

39

7310869

Grip, Plastic

$

$

Not available

40

Husqvarna 46471

Handle, Grip

$

$

Currently unavailable

41

7120256

Hex Jam Nut, 5/16-24 Thread

$

$

Not available

42

Husqvarna 23658

Spacer

$

$

Currently unavailable

43

Husqvarna 43085

Hex Bolt, 5/16-18 x 1-1/2"

$

$

Currently unavailable

44

Husqvarna 05762

Cable Mount Bracket

$

$

Currently unavailable

45

Husqvarna 43648

Hex Bolt, 1/4-20 x 1-1/2"

$

$

Currently unavailable

46

Husqvarna 47189

Nylock Hex Nut, 1/4"

$

$

Currently unavailable

47

7100305

Carriage Bolt, 3/8-16 x 1-1/4"

$

$

Not available

48

Husqvarna 46065

Channel Pivot Pin

$

$

Currently unavailable

49

Husqvarna 63034

Lift Link Assembly

$

$

Currently unavailable

50

Husqvarna 43001

Hex Bolt, 3/8-16 x 1"

$

$

Not available

51

Husqvarna 43350

Carriage Bolt, 3/8-16 x 1"

$

$

Not available

52

Husqvarna 43003

Lock Washer 3/8"

$

$

Not available

53

7260178

Plastic Tie

$

$

Not available

54

Husqvarna R19171616

Washer

$

$

Currently unavailable

55

Husqvarna 46071

Hex Bolt, 1/4-20 x 3-1/4" Lg. Gr 5

$

$

Currently unavailable

56

Husqvarna 43349

1/4" x 1" Spring Pin

$

$

Not available

57

Husqvarna R19172410

Washer, 1/2" (Large)

$

$

Currently unavailable

58

Husqvarna 47631

Hex Bolt, 3/8" x 1" (Thd. Forming)

$

$

Currently unavailable

Husqvarna 49964

Owners Manual

$

$

Currently unavailable
