LBX15-BV10 - Scag Extreme Wheeled Blower, 10hp Vanguard (SN: P4500001 - P4599999) EXTREME BLOWER ASSEMBLY Parts Diagram

Extreme Wheeled Blower, 10hp Vanguard

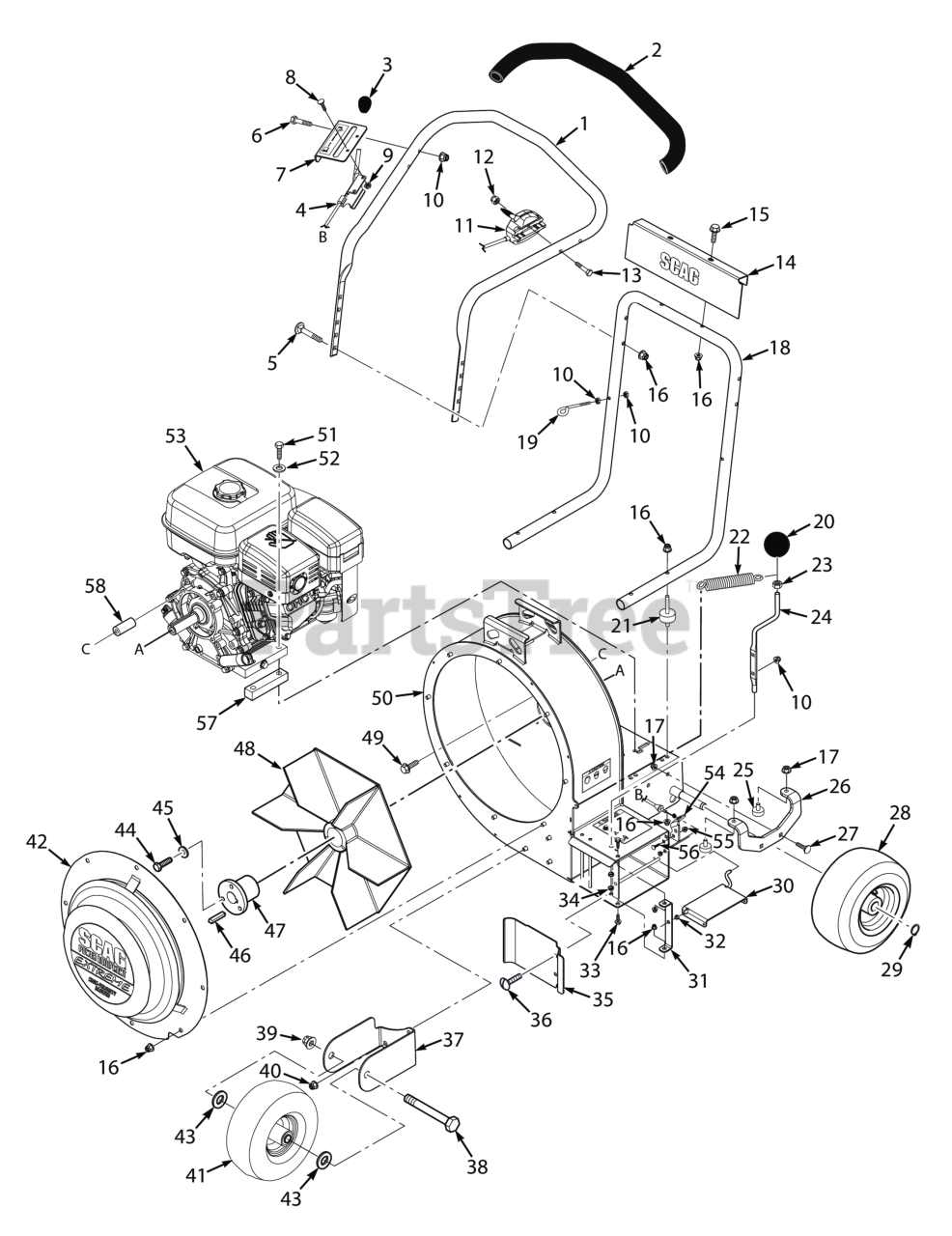

EXTREME BLOWER ASSEMBLY Parts Diagram

  • Title

1

Scag 462738

Handle, Upper w/Grip (incl. #2)

$120.99

$

Usually ships in 2-12 days

0

2

Scag 485343

Grip, 1" x 21-1/2"

$15.99

$

Usually ships in 2-12 days

0

3

Scag 483533

Knob, Throttle

$10.99

$

Usually ships in 2-12 days

0

4

Scag 484935

Control Cable, Air Direction (incl. #3)

$59.99

$

In Stock, only 1 left!

0

5

Scag 04003-15

CARR BOLT, 5/16-18 X 1.75

$4.99

$

In Stock, Qty 8

0

6

Scag 04001-04

Bolt, Hex Head, 1/4-20 x 1-1/2"

$0.99

$

In Stock, Qty 17

0

7

Scag 462632

Mounting Bracket, Control Plate w/Decal

$101.99

$

Usually ships in 2-12 days

0

8

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 8

0

9

Scag 04021-26

Nut, Elastic Stop #10-24

$0.99

$

In Stock, Qty 9

0

10

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

11

Scag 485890

Cable, Throttle Control (B&S BV10)

$46.99

$

Usually ships in 2-12 days

0

12

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 10

0

13

Scag 04001-206

Bolt, 1/4-20 x 2-1/2"

$0.99

$

Usually ships in 2-12 days

0

14

Scag 463082

Handle Bar Cover w/Decal

$53.99

$

Usually ships in 2-12 days

0

15

Scag 04017-19

Bolt, Serrated Flange Hex Head 5/16-18 x 1.50"

$1.49

$

Usually ships in 2-12 days

0

16

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 20+

0

17

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 16

0

18

Scag 484875

Handle, Lower - LBX

$75.99

$

Usually ships in 2-12 days

0

19

Scag 44200

Guide, Pull Rope

$5.49

$

Usually ships in 2-12 days

0

20

Scag 484840

Knob, 3/8-16 Thread

$6.49

$

Usually ships in 2-12 days

0

21

Scag 484843

Mount, Vibration

$11.99

$

In Stock, only 1 left!

0

22

Scag 484764

Spring, Air Discharge Door

$7.99

$

In Stock, only 1 left!

0

23

Scag 04020-04

HEX LOCKNUT, ELASTIC STOP, 3/8-16

$0.99

$

In Stock, Qty 20+

0

24

Scag 44202

Rod, Forward Air Control

$7.99

$

Usually ships in 2-12 days

0

25

Scag 481284

Bumper, Rubber 5/16-18 x 5/8"

$16.99

$

In Stock, only 2 left!

0

26

Scag 426743

Bracket, Limiter Plate

$60.99

$

Usually ships in 2-12 days

0

27

Scag 04003-04

Bolt, Carriage 5/16-18x1" (large frame units only)

$0.99

$

In Stock, only 4 left!

0

28

Scag 484844

Wheel Assembly, 4.10 x 3.5-6

$89.99

$

Usually ships in 2-12 days

0

28

Scag 485008

Tire

$53.99

$

Usually ships in 2-12 days

0

28

Scag 485009

Rim w/Valve

$35.99

$

Usually ships in 2-12 days

0

28

Scag 485010

Bearing

$5.49

$

Usually ships in 2-12 days

0

29

Scag 04050-09

RETAINING RING, 5/8 EXT. - BASIC

$0.99

$

In Stock, only 4 left!

0

30

Scag 452497

Door Weldment, Side Discharge Control

$24.99

$

Usually ships in 2-12 days

0

31

Scag 426163

Pivot Bracket, Side Discharge

$13.99

$

Usually ships in 2-12 days

0

32

Scag 483453-24

Bearing, .250 ID

$11.99

$

Usually ships in 2-12 days

0

33

Scag 04017-16

Capscrew, 5/16-18 x .75 Serrated Flange Hex Head

$0.99

$

In Stock, Qty 10

0

34

Scag 483453-25

Bearing, .375 ID

$11.99

$

Usually ships in 2-12 days

0

35

Scag 426211

Door, Forward Air Control

$21.99

$

Usually ships in 2-12 days

0

36

Scag 04003-07

Bolt, Carriage 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 10

0

37

Scag 426350

Caster Bracket, Extreme

$31.99

$

Usually ships in 2-12 days

0

38

Scag 04001-119

BOLT, HEX HEAD, 5/8-11 X 5-1/2

$6.99

$

Usually ships in 2-12 days

0

39

Scag 04021-13

HEX LOCKNUT, ELASTIC STOP, 5/8-11

$1.49

$

In Stock, Qty 9

0

40

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

41

Scag 485095

Wheel Assembly, 9 x 3.5-4

$65.99

$

Usually ships in 2-12 days

0

41

Scag 485093

Tire

$59.99

$

Usually ships in 2-12 days

0

41

Scag 485094

Rim w/Valve

$49.99

$

Usually ships in 2-12 days

0

41

Scag 485010

Bearing

$5.49

$

Usually ships in 2-12 days

0

42

Scag 463080

Baffle Assembly, Extreme w/Decal

$244.99

$

Usually ships in 2-12 days

0

43

Scag 04040-10

Flatwasher, 5/8 - (..688 x 1.75 x .134)

$0.99

$

In Stock, Qty 20+

0

44

Scag 04001-175

Bolt, Hex Head 5/16-18 x 1-1/2" Grade 8

$0.99

$

In Stock, Qty 12

0

45

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

46

Scag 04063-08

Key, 1/4 x 1/4 x 2.0"

$1.49

$

In Stock, Qty 20+

0

47

Scag 485550

Tapered Hub, P2 SPCL - 1" Bore

$92.99

$

Usually ships in 2-12 days

0

47

Scag 426361

Plate, Impeller Hub (not shown)

$58.99

$

Usually ships in 2-12 days

0

48

Scag 452757

Impeller Weldment, 15" Extreme -LBX

$441.99

$

Usually ships in 2-12 days

0

49

Scag 04017-52

Bolt, Serr. Flng 5/16-24 x 3/4" (B&S)

$2.99

$

Usually ships in 2-12 days

0

49

Scag 04017-54

Bolt, Serr. Flng 5/16-24 x 1-3/4" (Honda)

$27.99

$

Usually ships in 2-12 days

0

50

Scag 463081

Housing Weldment, Extreme w/Decals

$789.99

$

Usually ships in 2-12 days

0

51

Scag 04001-13

Bolt, Hex Head, 5/16-18 x 2.75 Zinc.

$0.99

$

In Stock, only 1 left!

0

51

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI)

$0.99

$

In Stock, Qty 20+

0

52

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 9

0

52

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 18

0

53

Scag 485889

Engine, B&S BV10 (not avail through Scag)

$

$

Currently unavailable

53

Scag 485250

Engine, Honda GX270 (not avail through Scag)

$

$

Currently unavailable

54

Scag 426737

Bracket, Air Flow

$12.99

$

Usually ships in 2-12 days

0

55

Scag 04117-03

Nut, Flanged Elastic Stop 1/4-20

$0.99

$

In Stock, only 3 left!

0

56

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

57

Scag 485884

Spacer, Engine (B&S Engine Only)

$

$

Currently unavailable

58

Scag 43976

Spacer (excludes SVRII-36A)

$1.99

$

Usually ships in 2-12 days

0
